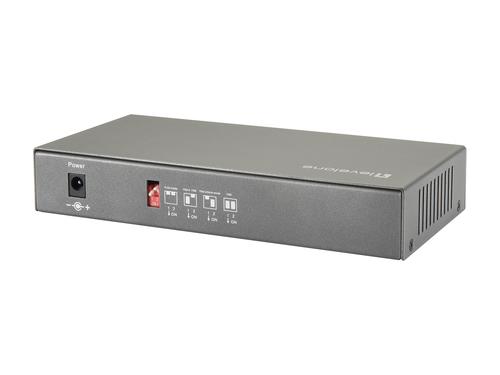

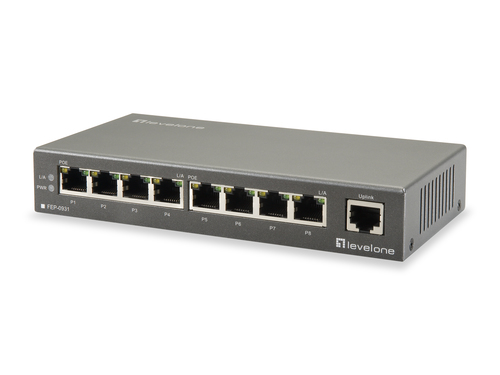

9-Port Fast Ethernet PoE Switch, 250m, 802.3at/af PoE
120W, 8 PoE Outputs
Model FEP-0931EAN 4015867208106
48 specifications
- Weight450 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- Transmission distance (max)0.25 km
- MAC address table2000 entries
Overview
- Weight
- 450 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- Transmission distance (max)
- 0.25 km
- MAC address table
- 2000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FEP-0931
- Part number
- FEP-0931
- EAN / UPC
- 4015867208106
- Also known as
- LevelOne 9-Port Fast Ethernet PoE Switch, 250m, 802.3at/af PoE, 120W, 8 PoE Outputs
Specifications
48 specifications in 14 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.25 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1800 Gbit/s |
| Forwarding rate | 1.34 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 3000 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Input current | 2.25 A |
| Output power | 120 W |
| Power consumption (max) | 125 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 30 mm |
| Height | 176 mm |
| Weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 230 mm |
| Package depth | 60 mm |
| Package height | 290 mm |
| Package weight | 950 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CF, FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 14 pc(s) |
