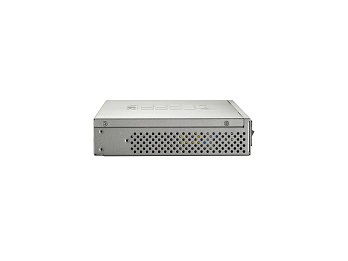

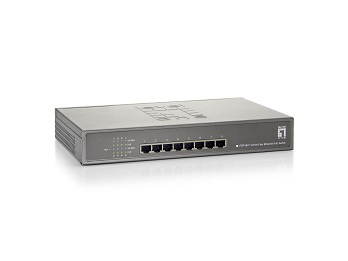

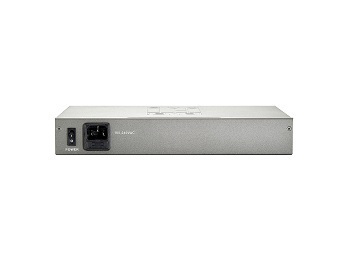

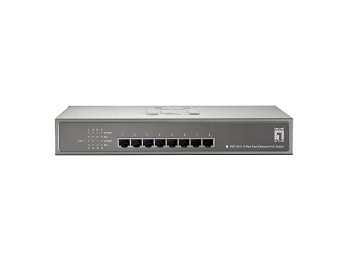

LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE
120W
Model FEP-0811EAN 8463590149054
41 specifications
- Weight1.6 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1024 entries
Overview
- Weight
- 1.6 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1024 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FEP-0811
- Part number
- FEP-0811
- EAN / UPC
- 8463590149054, 846359014905, 909963148050, 997205532095 +4 more
- Also known as
- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 120W
Specifications
41 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, PoE |
Performance
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 2 A |
| Power consumption (typical) | 130 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 123.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 280 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE
No reviews yet
Be the first to tell others how LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE
All network switch comparisons- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsLevelOne GES-2450 network switch Managed 1U GreyCompare specs
- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsLevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoECompare specs

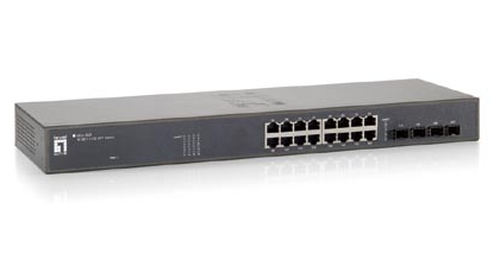

- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsLevelOne 16 GE + 4 GE SFP SwitchCompare specs
- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsLevelOne 16-Port Gigabit SwitchCompare specs
- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsD-Link DES-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop BlackCompare specs
- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsAllied Telesis AT-IFS802SP Managed Fast Ethernet (10/100) GreyCompare specs

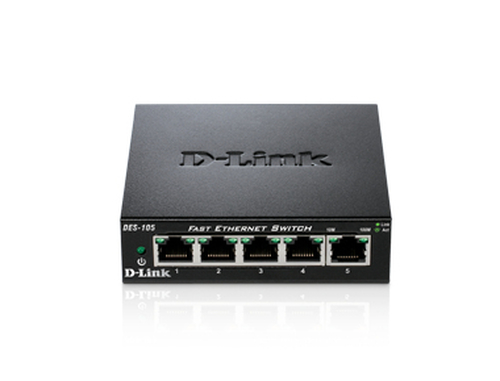

- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsD-Link DES-105 network switch Unmanaged BlackCompare specs

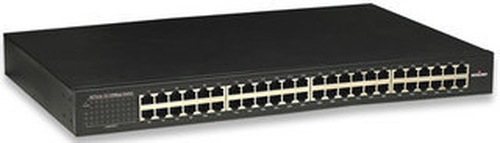

- LevelOne 8-Port Fast Ethernet PoE Switch, 802.3at/af PoE vsIntellinet 522618 network switch 1U BlackCompare specs
