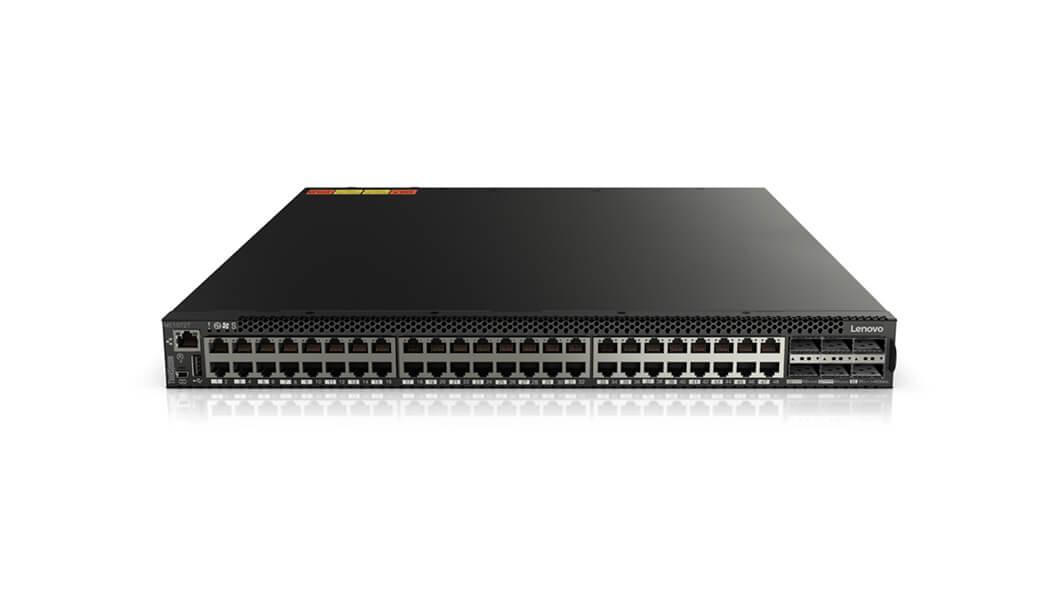

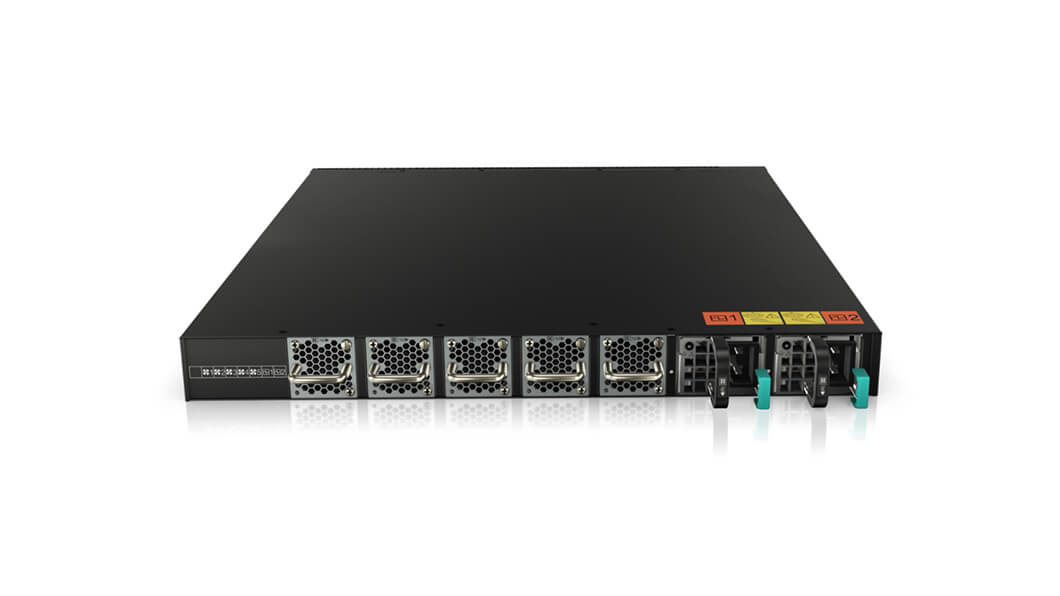

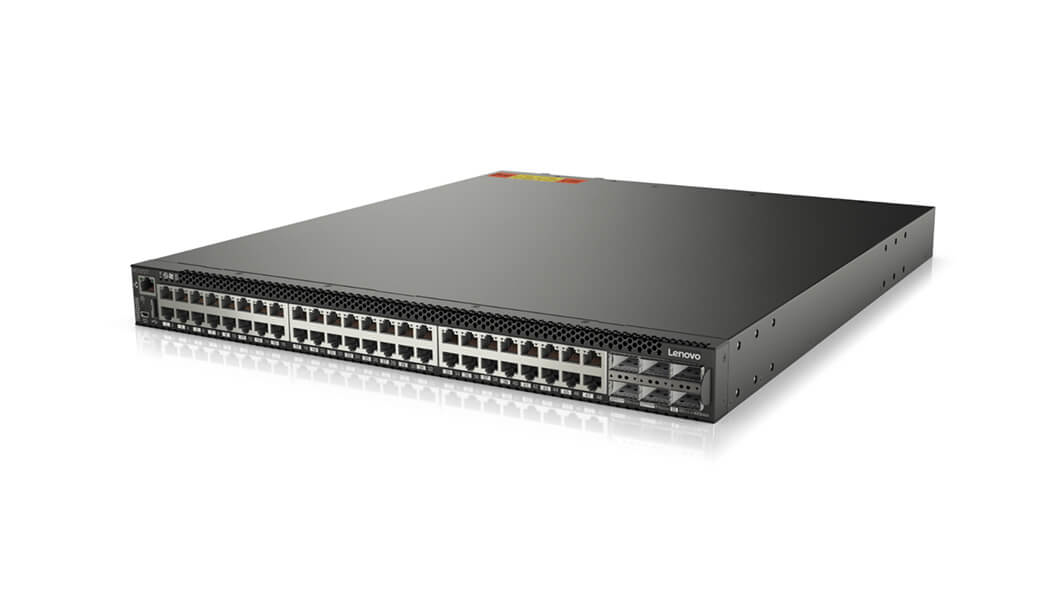

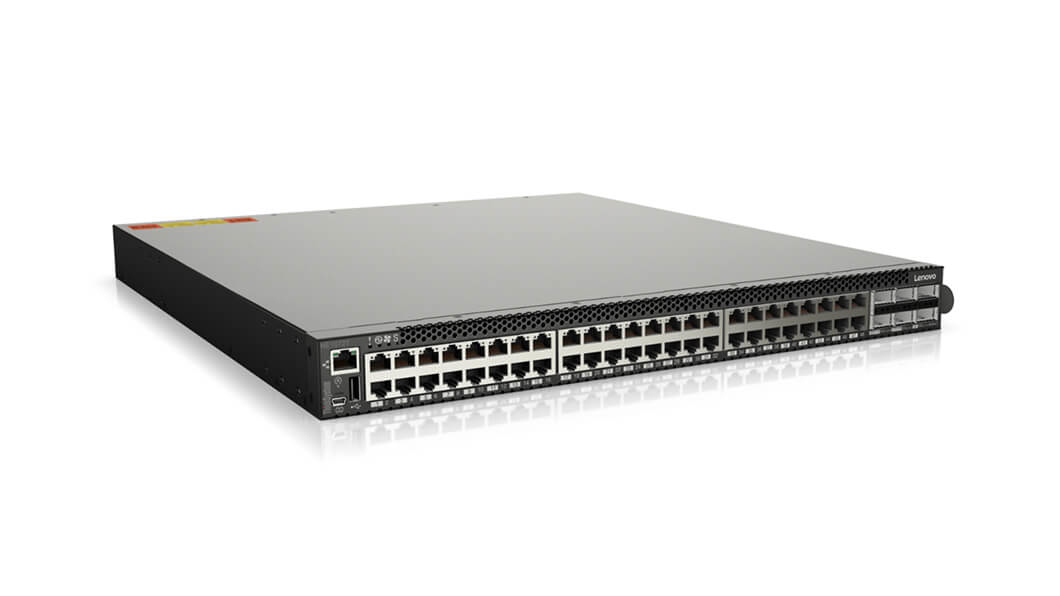

Lenovo ThinkSystem NE1072T
Model ThinkSystem NE1072TPart no. 7159C1XEAN 889488422180
58 specifications
- Noise65 dB
- Type1U
- Weight11.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Noise
- 65 dB
- Type
- 1U
- Weight
- 11.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Lenovo
- Category
- Network Switch
- Model
- ThinkSystem NE1072T
- Part number
- 7159C1X
- EAN / UPC
- 889488422180
- Also known as
- Lenovo ThinkSystem NE1072T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
58 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Cable types supported | Cat6a, Cat7 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4095 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 40GBASE-LR4, 40GBASE-SR4 |
| Switching optical modules type | 40 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 208000 entries |
| Throughput | 1440000 Mpps |
| Static route | Yes |
| Number of static routes | 256 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, V3, CLI |
| Routing protocols | OSPFv2, BGP4, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Airflow direction | Back-to-front airflow |
| Number of fans | 5 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 65 dB |
| Mean time between failures (MTBF) | 141566 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 202 W |
| Power consumption (max) | 291 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 689 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 487 mm |
| Height | 44 mm |
| Weight | 11.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ROHS, UL/IEC 60950-1, TUV-GS, NOM-019, IEC 60950-1, FCC, CSA C22.2 No. 60950-1, CISPR 22, Class A, China CCC GB4943, GB9254 Class A, GB17625.1, CE Mark, AS/NZS CISPR 22, Class A, IEC60950-1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
