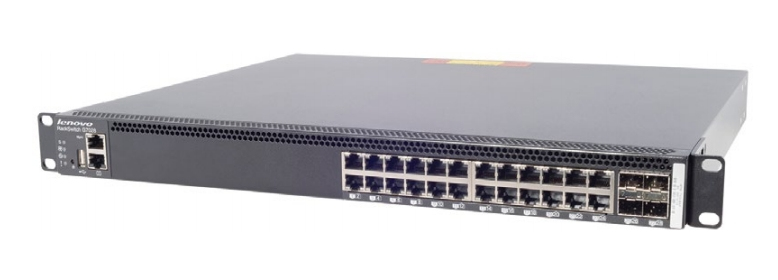

Lenovo RackSwitch G7028
Model RackSwitch G7028Part no. 7159BAXEAN 889488024094
41 specifications
- Noise65 dB
- Type1U
- Weight5.3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Noise
- 65 dB
- Type
- 1U
- Weight
- 5.3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Lenovo
- Category
- Network Switch
- Model
- RackSwitch G7028
- Part number
- 7159BAX
- EAN / UPC
- 889488024094, 5711783315018
- Also known as
- Lenovo RackSwitch G7028 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
41 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Throughput | 128000 Mpps |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | isCLI; SNMP v1/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 65 dB |
| Mean time between failures (MTBF) | 128407 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 382 mm |
| Height | 44 mm |
| Weight | 5.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
