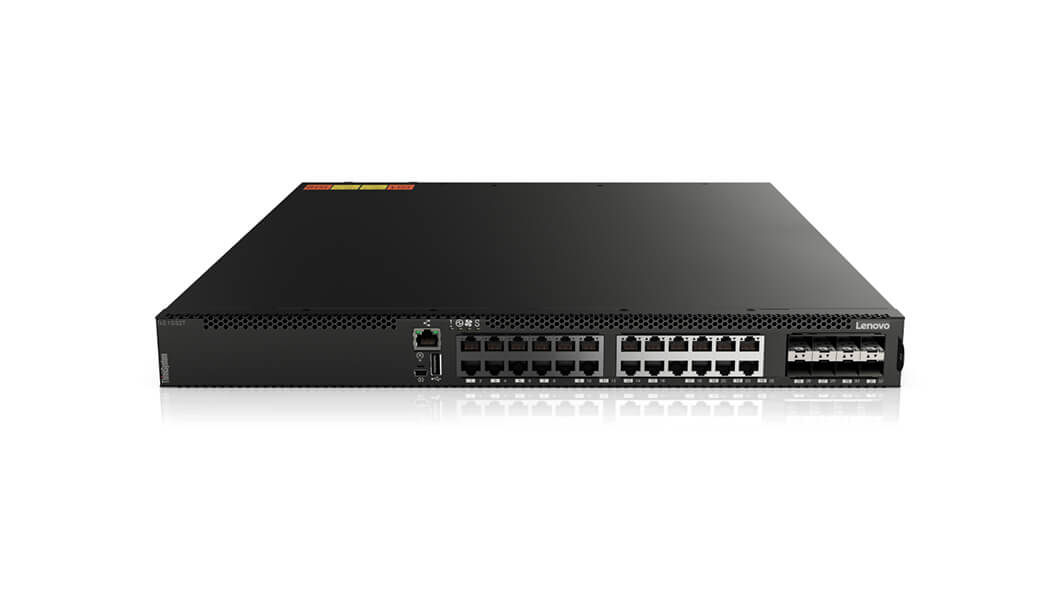

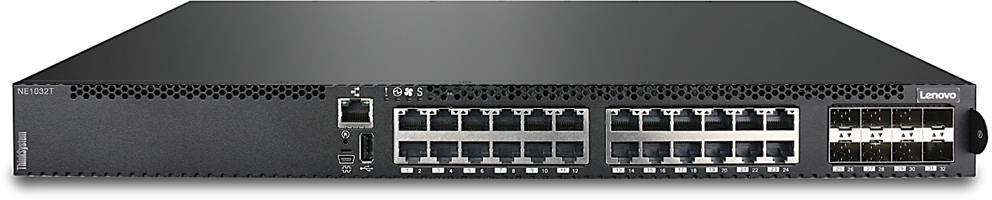

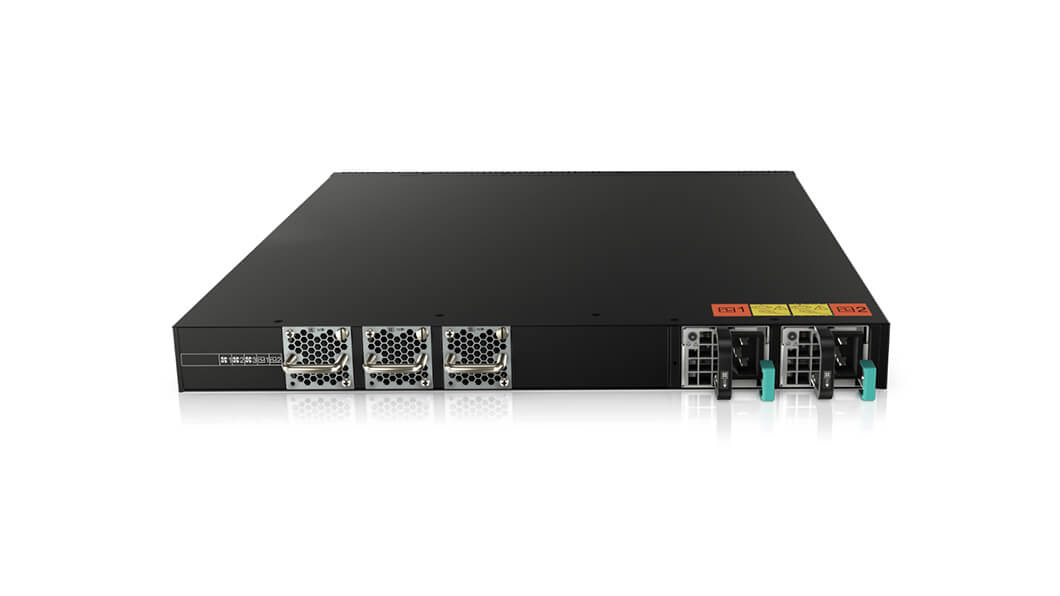

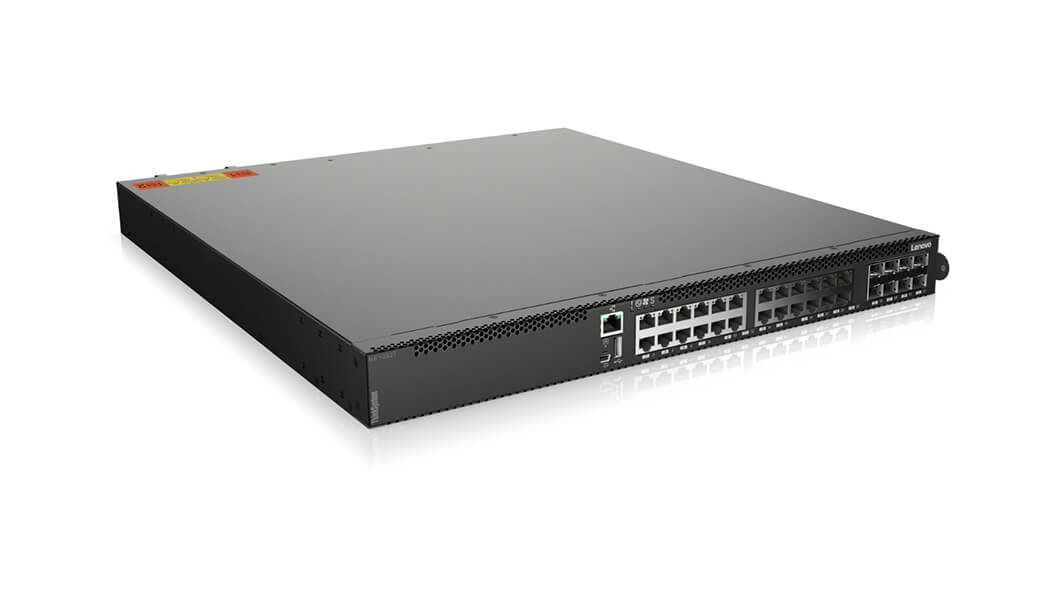

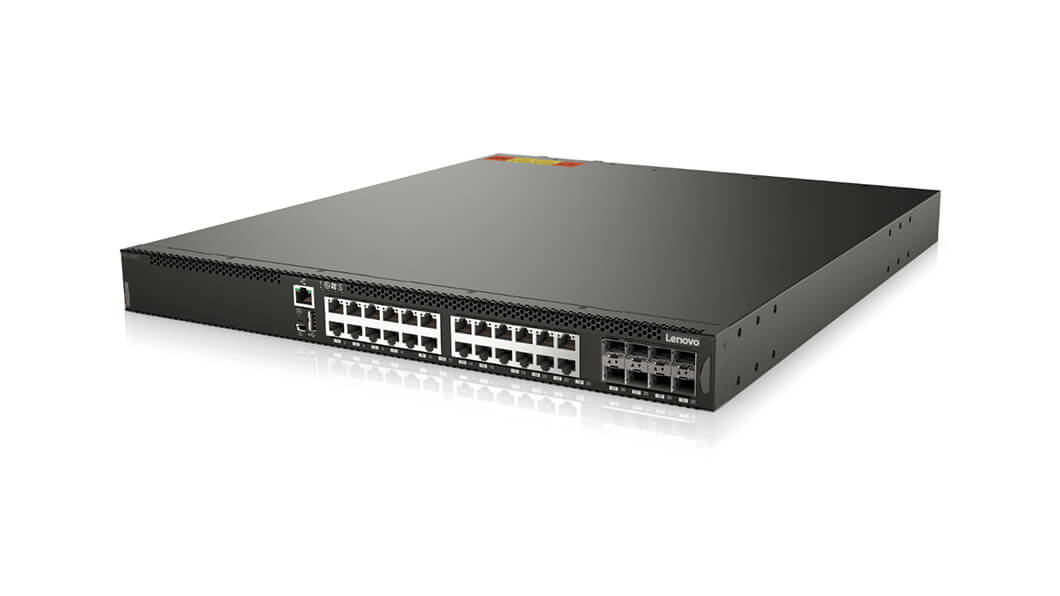

Lenovo NE1032T Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model NE1032TPart no. 7159B1XEAN 889488422166
45 specifications
- Type1U
- Weight10.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 10.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Lenovo
- Category
- Network Switch
- Model
- NE1032T
- Part number
- 7159B1X
- EAN / UPC
- 889488422166
- Also known as
- Lenovo NE1032T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
45 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4095 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 208000 entries |
| Switching capacity | 10 Gbit/s |
| Throughput | 640000 Mpps |
| Latency (10 Gbps) | 2.3 µs |
| Number of static routes | 256 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 512 |
| Access Control List (ACL) ingress | 3072 |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IPv4, IPv6 |
| Routing protocols | IP, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Ventilation system | Back-to-front airflow |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 175607 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
Other features
| Specification | Value |
|---|---|
| Power supply | 770 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 487 mm |
| Height | 44 mm |
| Weight | 10.9 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
