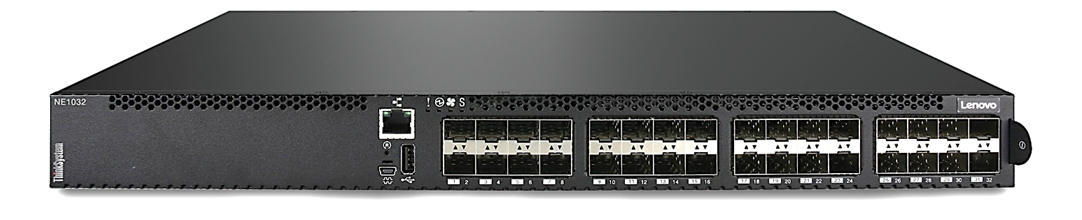

Lenovo NE1032 Managed
10G Ethernet (100/1000/10000) 1U Black
Model NE1032Part no. 7159A1XEAN 889488422142
43 specifications
- Type1U
- Weight10.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 10.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- 10G support
- Yes
- Brand
- Lenovo
- Category
- Network Switch
- Model
- NE1032
- Part numbers
- 7159A1X, 7159A2X
- EAN / UPC
- 889488422142, 889488422159, 5415247214694
- Also known as
- Lenovo NE1032 Managed 10G Ethernet (100/1000/10000) 1U Black
Specifications
43 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 32 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
Data transmission
| Specification | Value |
|---|---|
| Static route | Yes |
| Number of static routes | 256 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 512 |
| Access Control List (ACL) ingress | 3072 |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 487 mm |
| Height | 44 mm |
| Weight | 10.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
