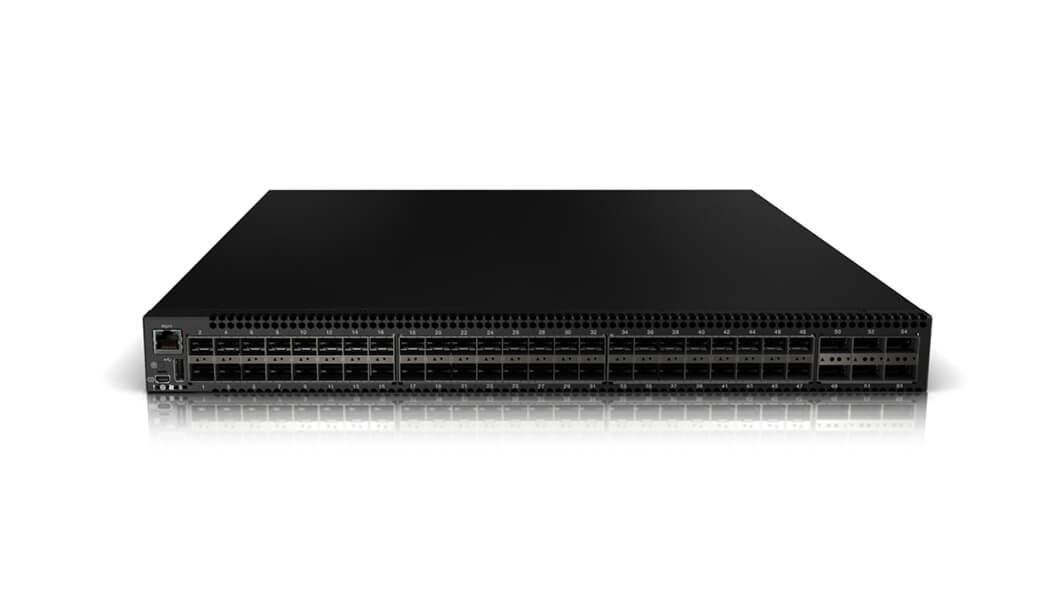

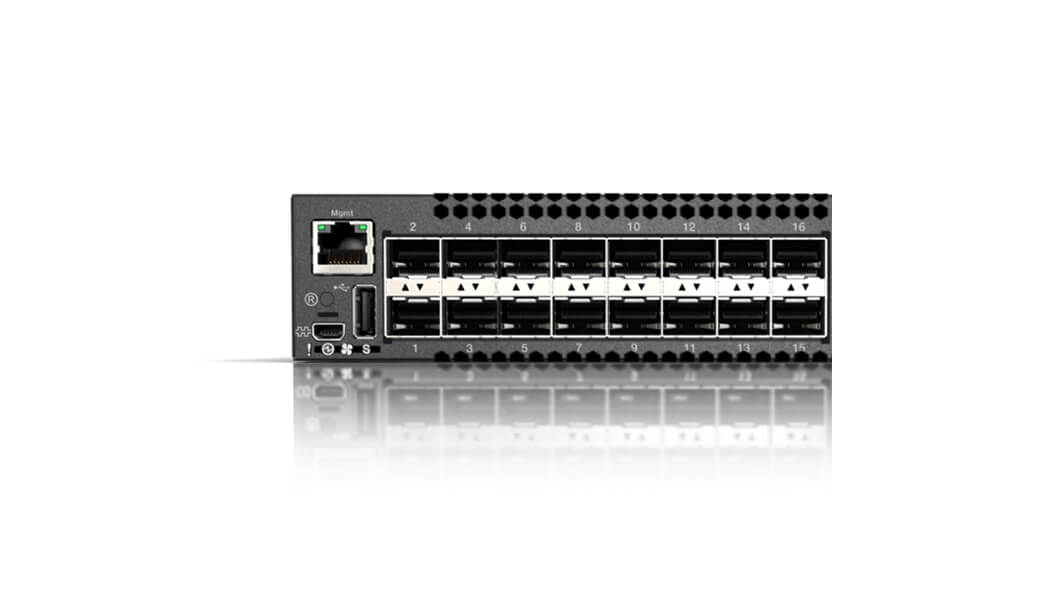

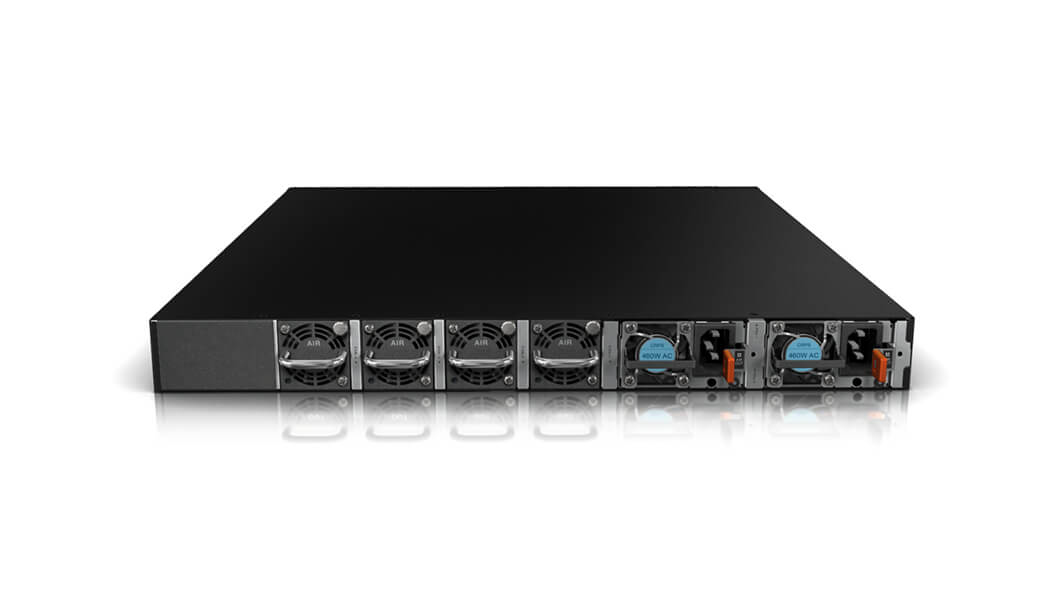

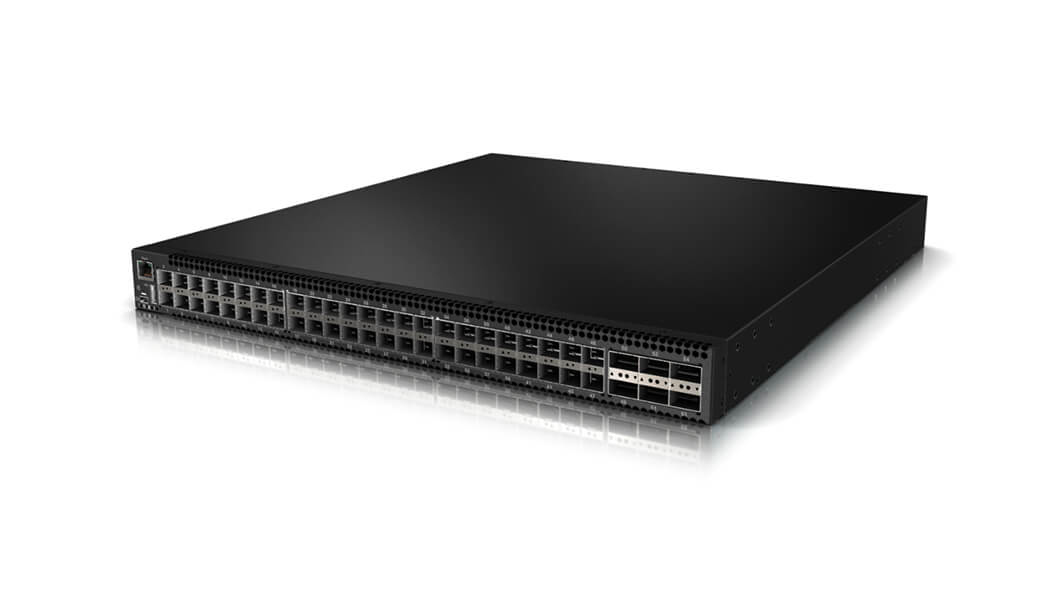

Lenovo G8272 Managed L2/L3 1U Black
Model G8272Part no. 7159CRWEAN 889488024117
56 specifications
- Noise72 dB
- Type1U
- Weight9.1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
Overview
- Noise
- 72 dB
- Type
- 1U
- Weight
- 9.1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Brand
- Lenovo
- Category
- Network Switch
- Model
- G8272
- Part number
- 7159CRW
- EAN / UPC
- 889488024117
- Also known as
- Lenovo G8272 Managed L2/L3 1U Black
Specifications
56 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 6 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4095 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 40GBASE-LR4, 40GBASE-SR4 |
| Switching optical modules type | 40 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 224000 entries |
| Throughput | 1440000 Mpps |
| Static route | Yes |
| Number of static routes | 128 |
| Packet buffer memory | 12.2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP V1, V2, V3 |
| Routing protocols | BGP4, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Back-to-front airflow |
| Number of fans | 4 fan(s) |
| Electromagnetic compatibility | FCC 47CFR Part 15 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, KC Class A, CE |
Performance
| Specification | Value |
|---|---|
| Noise level | 72 dB |
| Mean time between failures (MTBF) | 290023 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 123 W |
| Power consumption (max) | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 420 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 487 mm |
| Height | 44 mm |
| Weight | 9.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ROHS, UL60950-1, CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, IEC60950-1, CNS 14336-1, Argentina Smark to IEC60950-1, GB4943.1-2011, EAC, NOM-019 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
