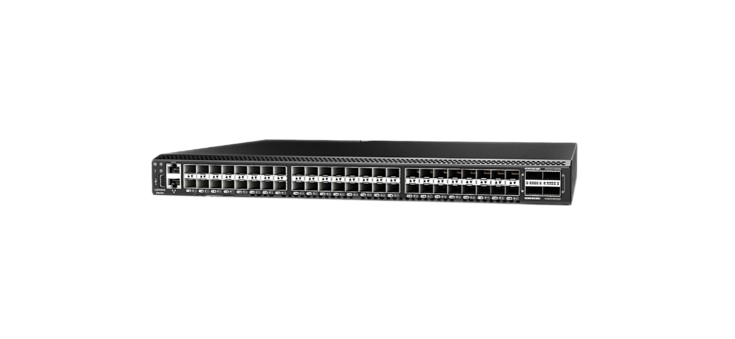

DB620S Gigabit Ethernet (10/100/1000) 1U Black
Model DB620SPart no. 6415L3AEAN 889488532469
38 specifications
- Noise65 dB
- Type1U
- Weight7.7 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity1
- 10G supportYes
Overview
- Noise
- 65 dB
- Type
- 1U
- Weight
- 7.7 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 1
- 10G support
- Yes
- Brand
- Lenovo
- Category
- Network Switch
- Model
- DB620S
- Part number
- 6415L3A
- EAN / UPC
- 889488532469
- Also known as
- Lenovo DB620S Gigabit Ethernet (10/100/1000) 1U Black
Specifications
38 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 24 |
| Console port | Mini-USB |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 16 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 65 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 192 W |
| Power consumption (max) | 205 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation | 655 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 356 mm |
| Height | 44 mm |
| Weight | 7.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Rack rails | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15, Subpart B (Class A) EN 55022 (CE mark) (Class A) EN 55024 (CE mark) ICES-003 (Canada) (Class A) AS/NZ 55022 (Australia) (Class A) VCCI (Japan) (Class A) EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 UL/CSA 60950 EN 60950 IEC 60950 EU RoHS |
