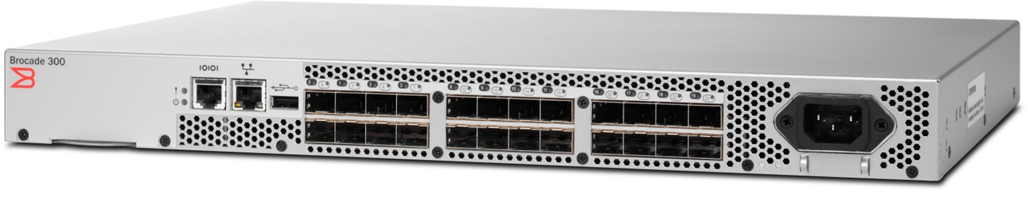

Lenovo Brocade 300 FC SAN
Model Brocade 300 FC SANPart no. 3873AR1EAN 883436633567
25 specifications
- Type1U
- Weight4.2 kg
- ColourSilver
- Switch typeManaged
- Fast Ethernet (copper) ports quantity2
- Port mirroringYes
Overview
- Type
- 1U
- Weight
- 4.2 kg
- Colour
- Silver
- Switch type
- Managed
- Fast Ethernet (copper) ports quantity
- 2
- Port mirroring
- Yes
- Brand
- Lenovo
- Category
- Network Switch
- Model
- Brocade 300 FC SAN
- Part number
- 3873AR1
- EAN / UPC
- 883436633567, 4053162877719
- Also known as
- Lenovo Brocade 300 FC SAN Managed 1U Silver
Specifications
25 specifications in 7 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| AP domain management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Fast Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 192 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Silver |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 75 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 429 mm |
| Depth | 307 mm |
| Height | 43 mm |
| Weight | 4.2 kg |
