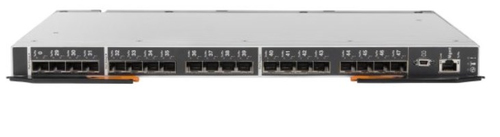

Lenovo 00FM518 network switch Managed L2/L3 Black
Model 00FM518EAN 883436674805
27 specifications
- Weight3.7 kg
- ColourBlack
- Switch typeManaged
- 10G supportYes
- MAC address table128000 entries
- Management protocolsSNMP v1,v3
Overview
- Weight
- 3.7 kg
- Colour
- Black
- Switch type
- Managed
- 10G support
- Yes
- MAC address table
- 128000 entries
- Management protocols
- SNMP v1,v3
- Brand
- Lenovo
- Category
- Network Switch
- Model
- 00FM518
- Part number
- 00FM518
- EAN / UPC
- 883436674805
- Also known as
- Lenovo 00FM518 network switch Managed L2/L3 Black
Specifications
27 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 10GBASE-T, 40GBASE-ESR4, 40GBASE-LR4 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1,v3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 236805 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 401 mm |
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 508 mm |
| Package depth | 432 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) |
