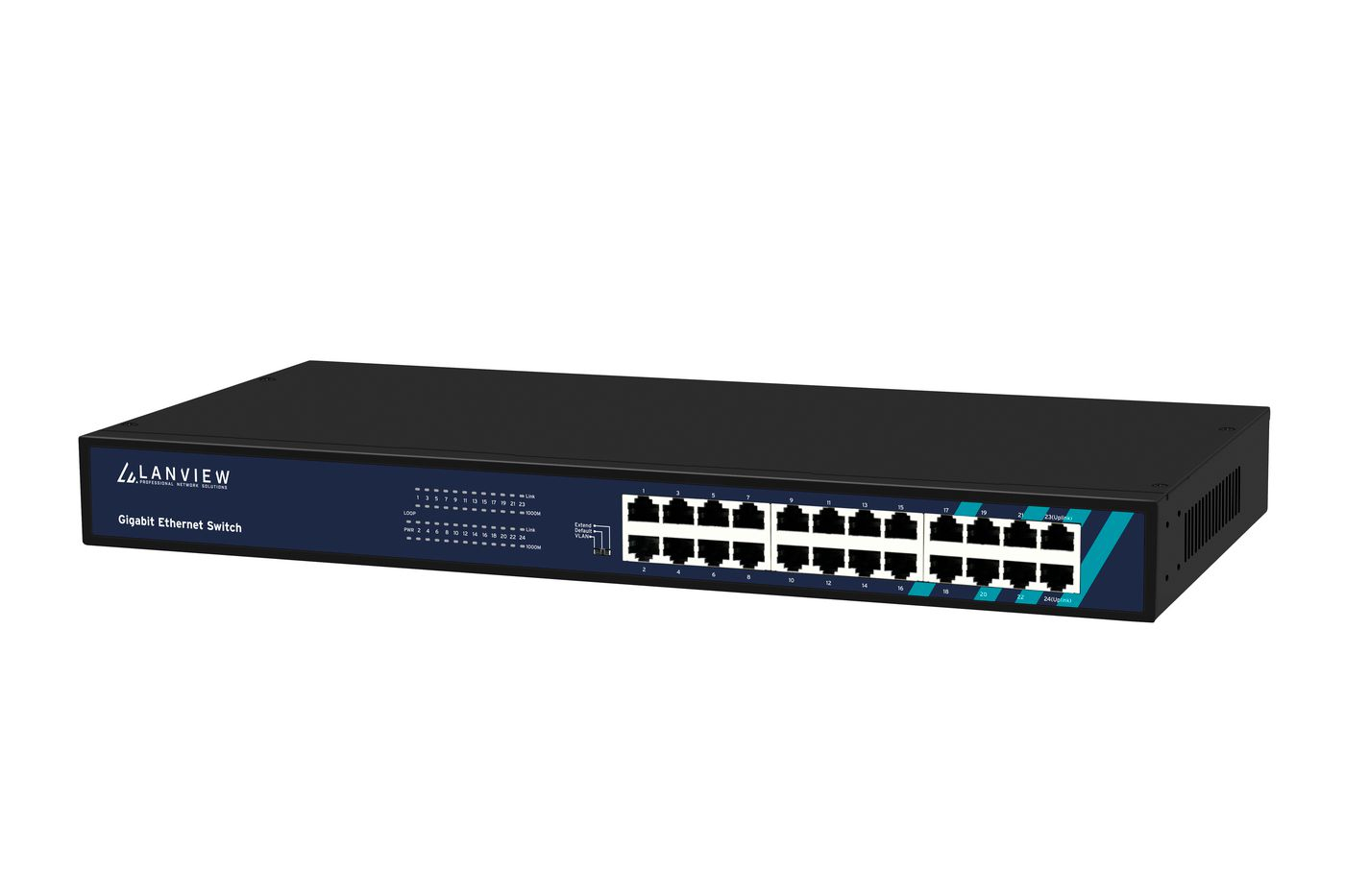

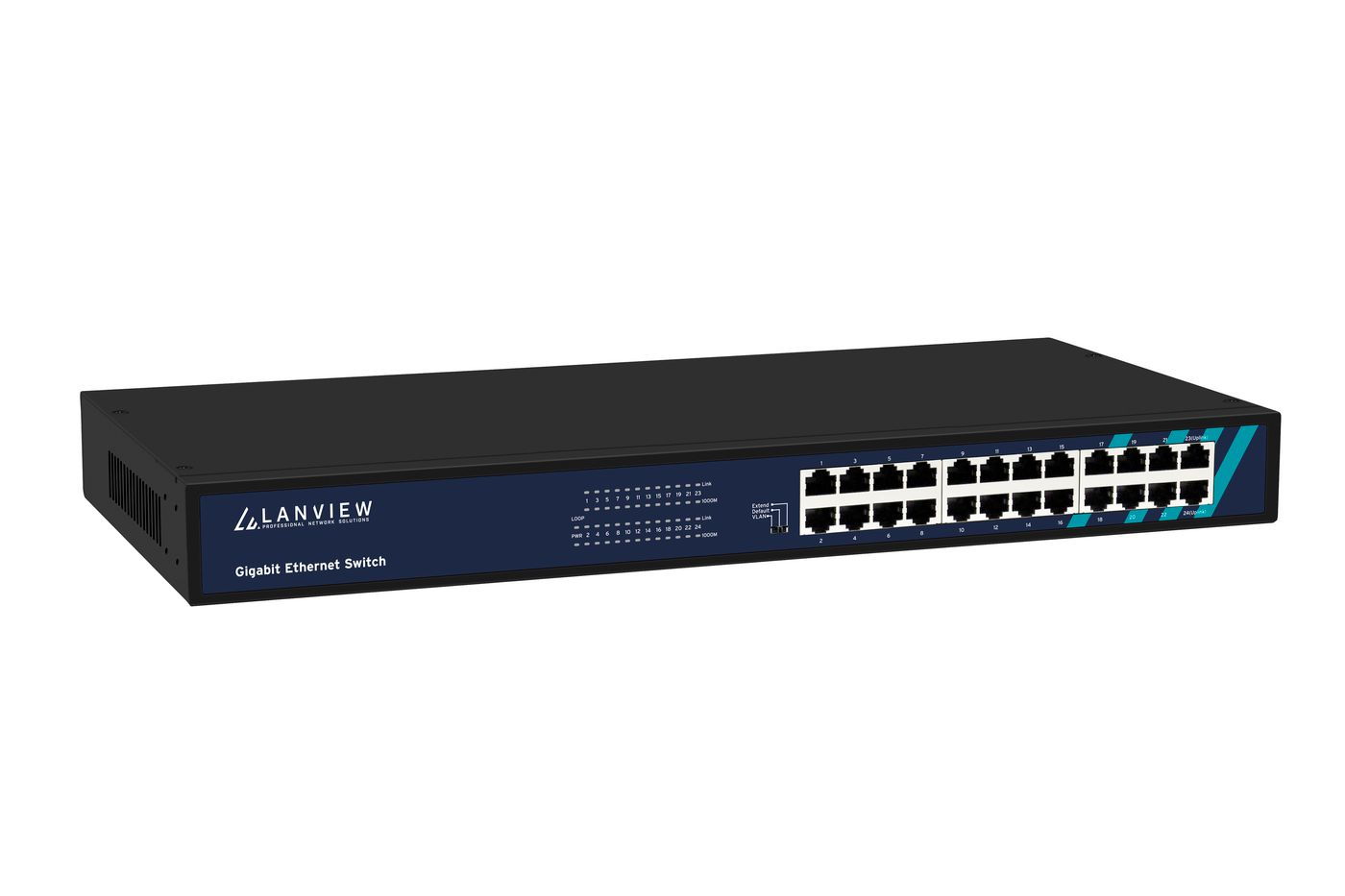

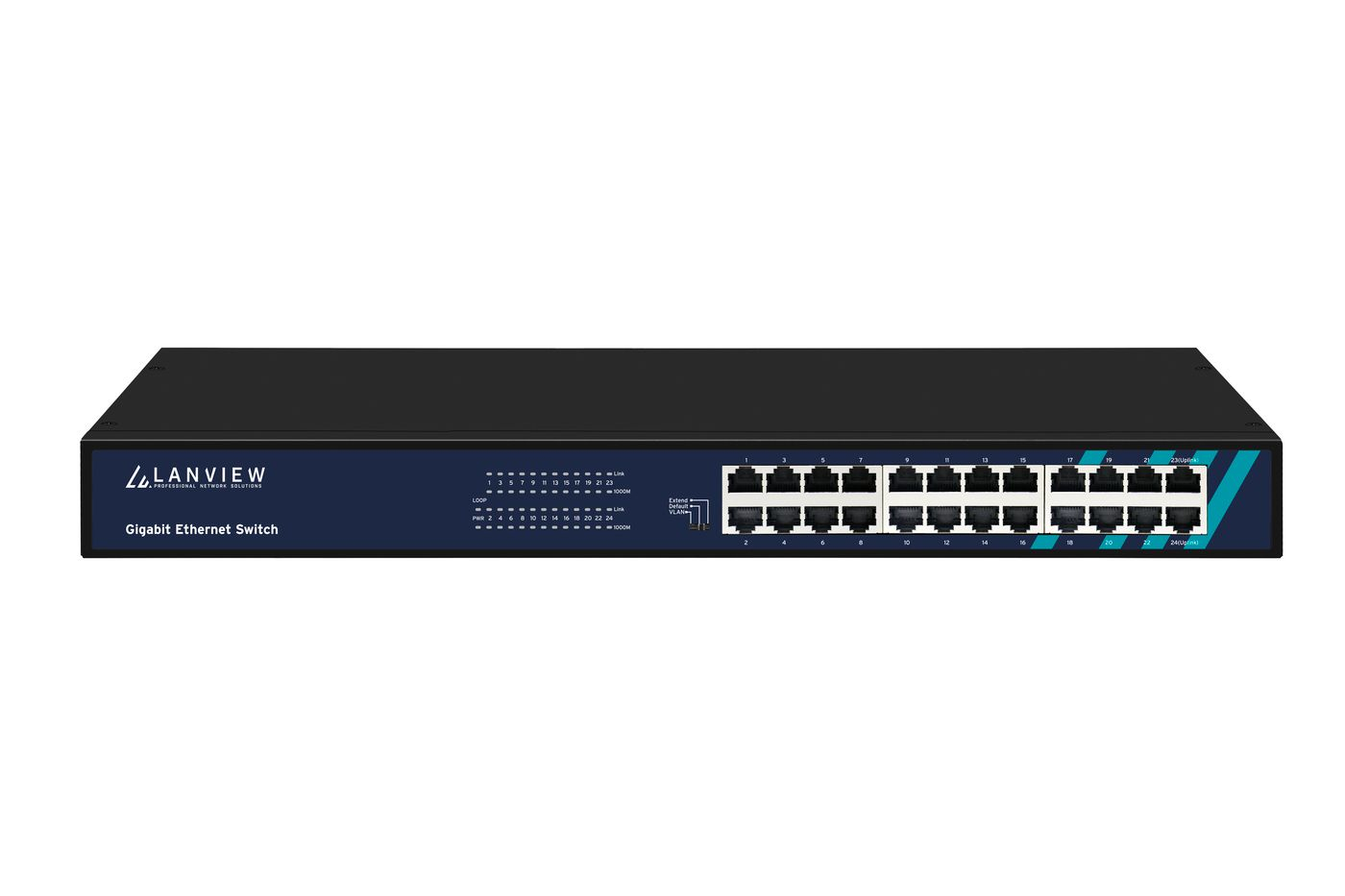

LVN-1UMOUNT-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)
Model LVN-1UMOUNT-24PORT-1GEAN 5715063808290
37 specifications
- Weight2.2 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.3
- MAC address table8000 entries
- Housing materialMetal
Overview
- Weight
- 2.2 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.3
- MAC address table
- 8000 entries
- Housing material
- Metal
- Brand
- Lanview
- Category
- Network Switch
- Model
- LVN-1UMOUNT-24PORT-1G
- Part number
- LVN-1UMOUNT-24PORT-1G
- EAN / UPC
- 5715063808290
- Also known as
- Lanview LVN-1UMOUNT-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)
Specifications
37 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| Store-and-forward | Yes |
| Packet forwarding | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| LED indicators | Link |
| Number of fans | 0 fan(s) |
| On/off switch | No |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 2 A |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 290 mm |
| Height | 85 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 290 mm |
| Package height | 85 mm |
| Package weight | 2.7 kg |
