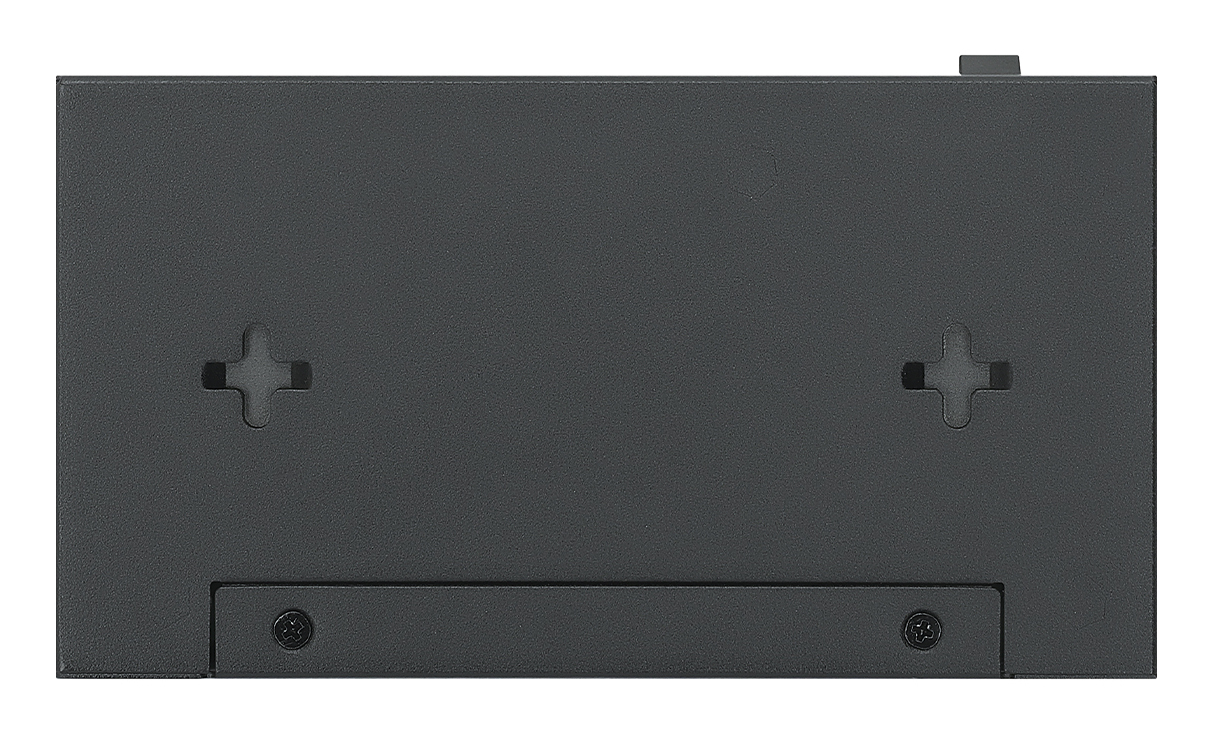

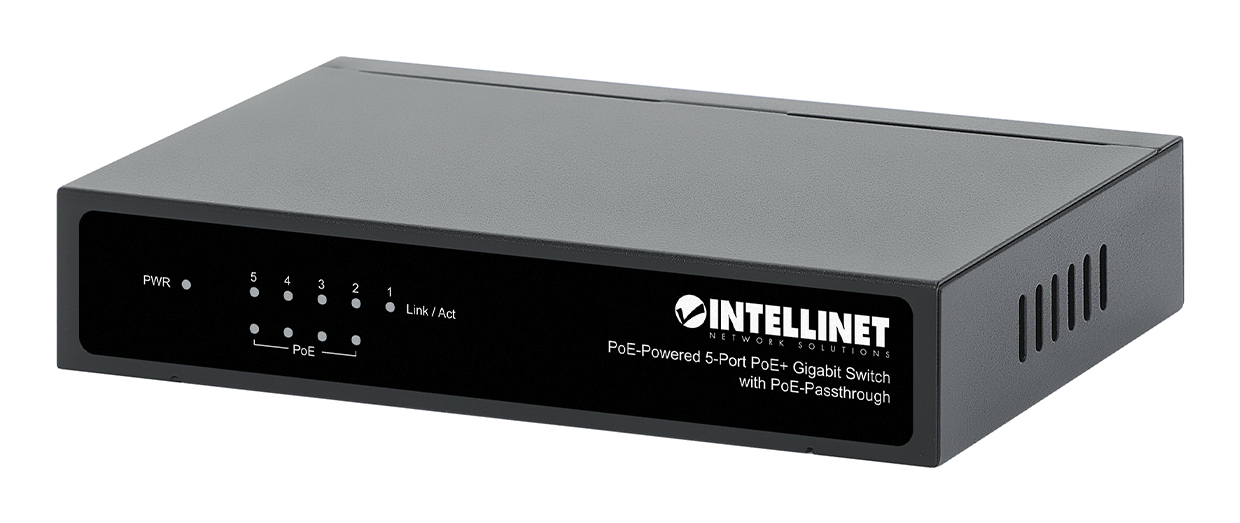

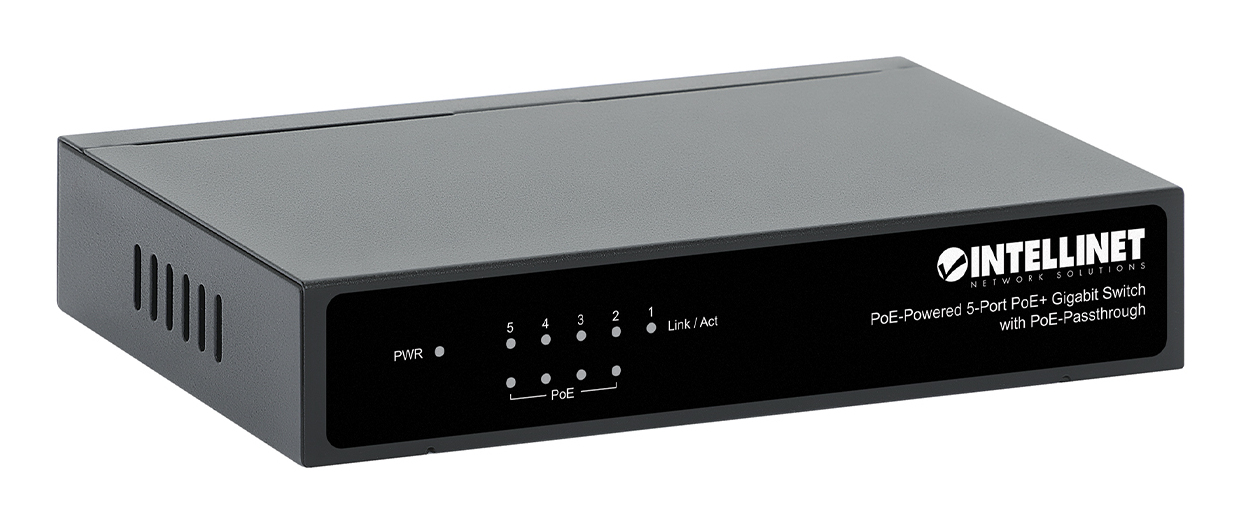

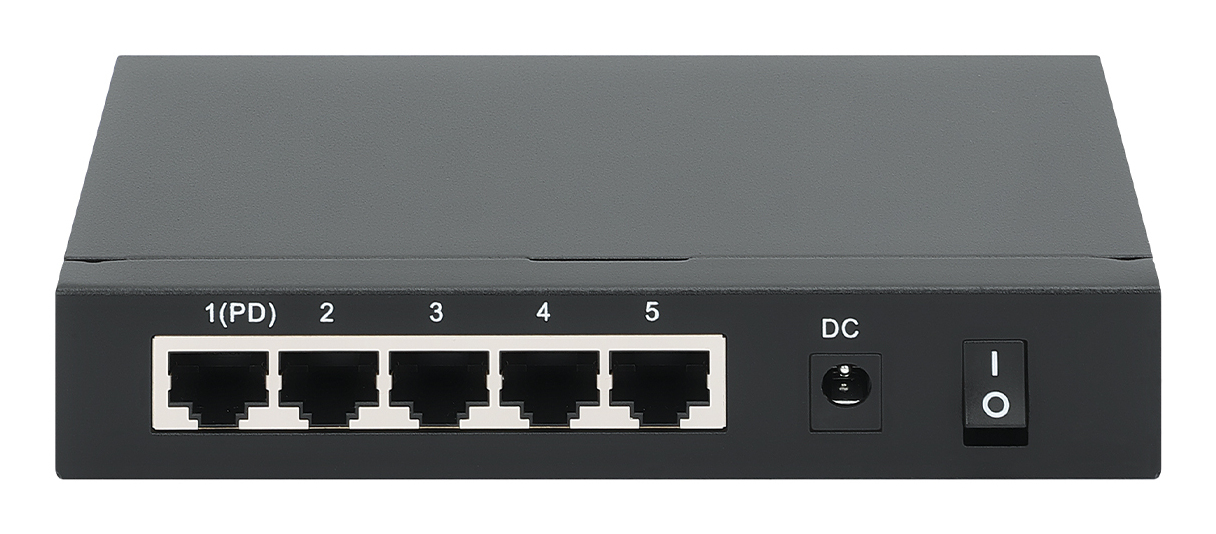

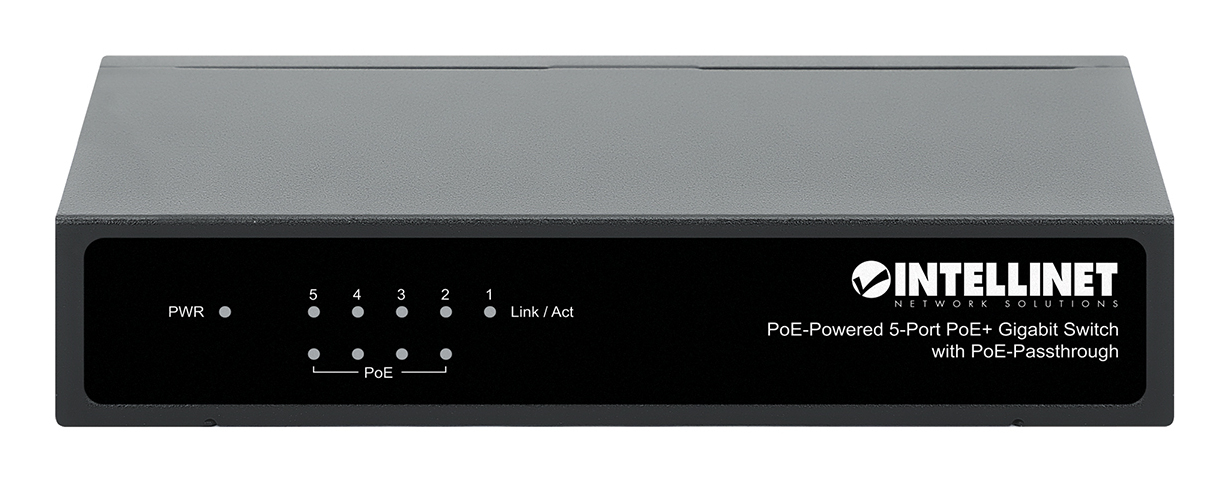

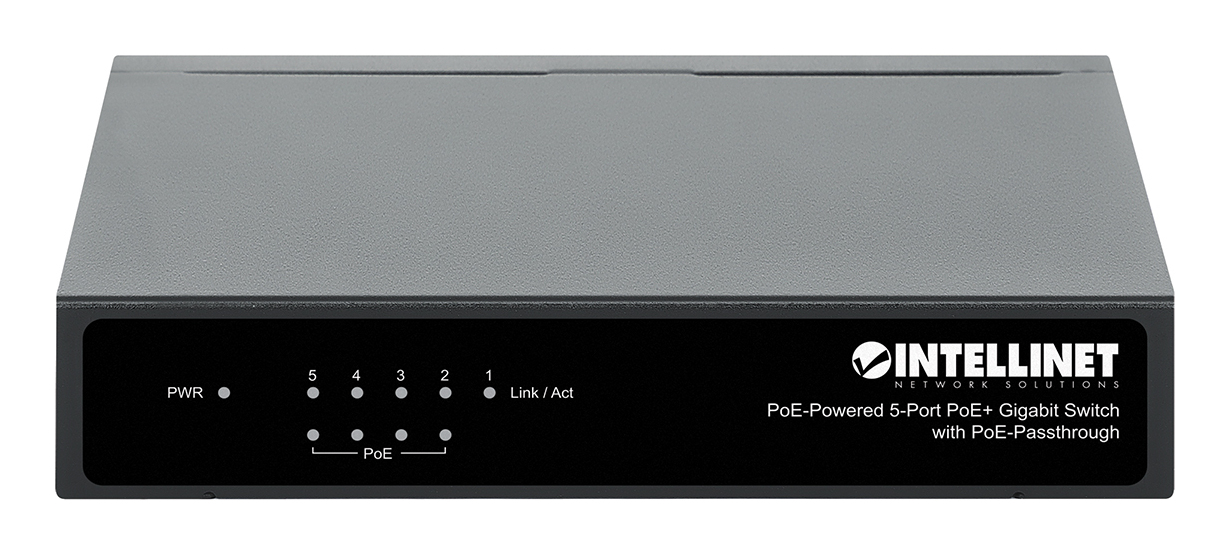

Intellinet PoE-Powered 5x Gigabit

Intellinet PoE-Powered 5x Gigabit

Model PoE-Powered 5x GigabitPart no. 561082EAN 766623561082

37 specifications
  • Weight600 g
  • ColourBlack
  • Basic switching RJ-45 Ethernet ports quantity5
  • 10G supportNo
  • MAC address table2048 entries
  • Power supply includedYes
See all specifications

Overview

Weight
600 g
Colour
Black
Basic switching RJ-45 Ethernet ports quantity
5
10G support
No
MAC address table
2048 entries
Power supply included
Yes
Brand
Intellinet
Model
PoE-Powered 5x Gigabit
Part number
561082
EAN / UPC
766623561082
Also known as
Intellinet 5-Port Gigabit Switch with PoE Passthrough, 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy E

Specifications

37 specifications in 11 groups

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat5e, Cat6
Auto MDI/MDI-XYes
Flow control supportYes

Data transmission

MAC address table2048 entries
Switching capacity10 Gbit/s
Store-and-forwardYes
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps

Design

Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, Power

Power

Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current2.5 A
Power consumption (max)75 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget26 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width140 mm
Depth78 mm
Height28 mm
Weight600 g

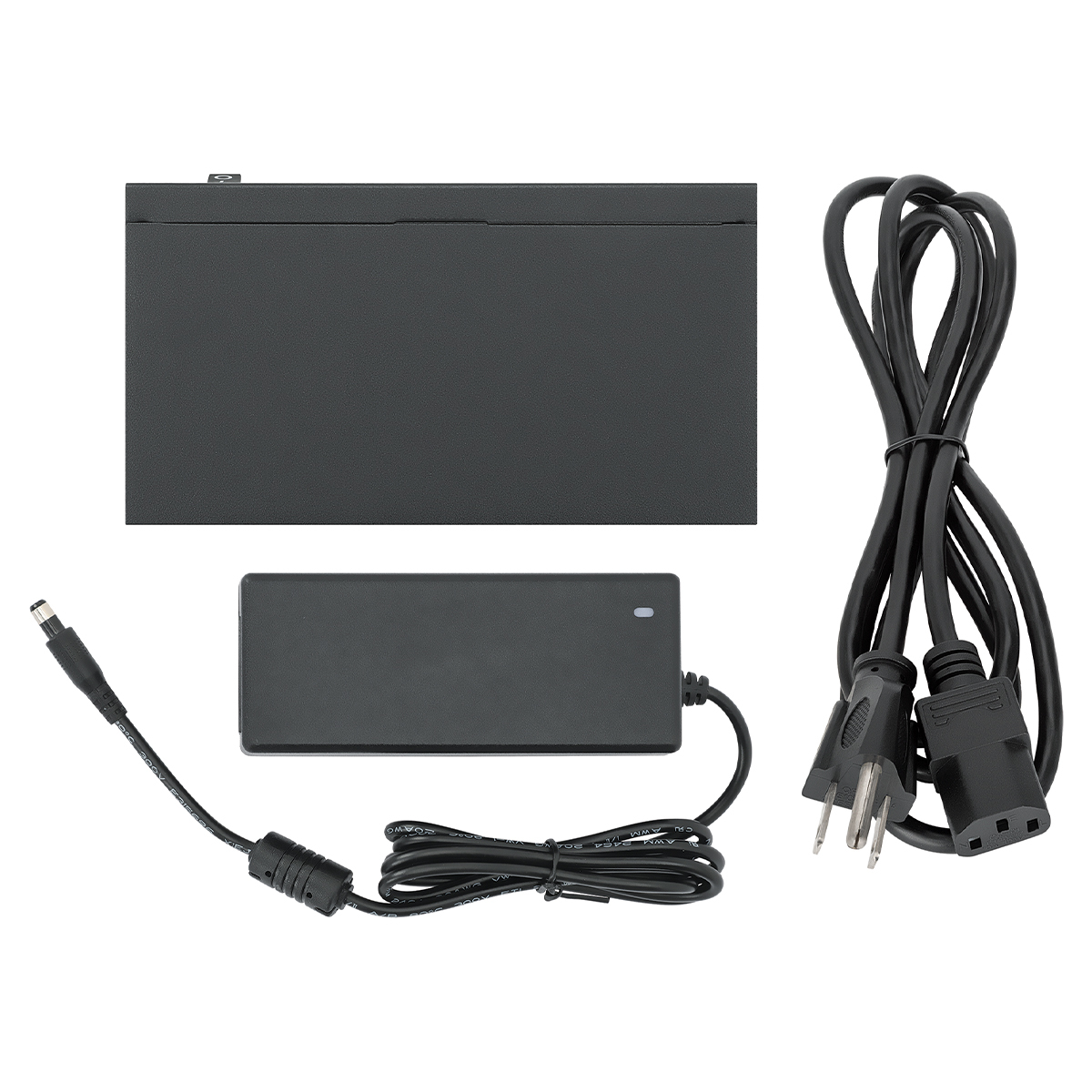

Packaging content

Cables includedAC
ManualYes

Certificates

CertificationFCC Class B, CE, RoHS

Logistics data

Harmonized System (HS) code85176990
