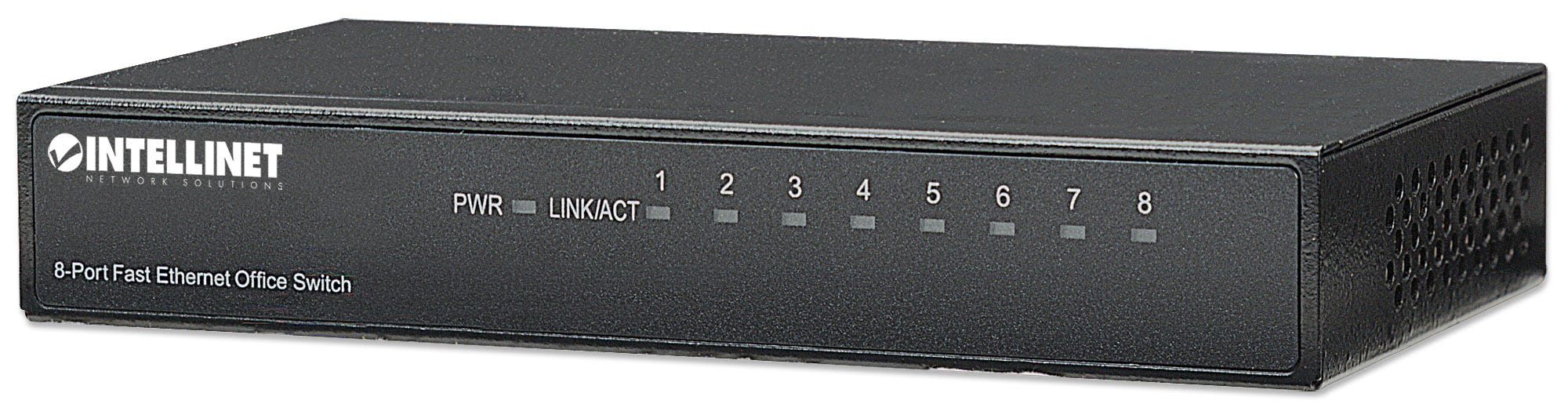

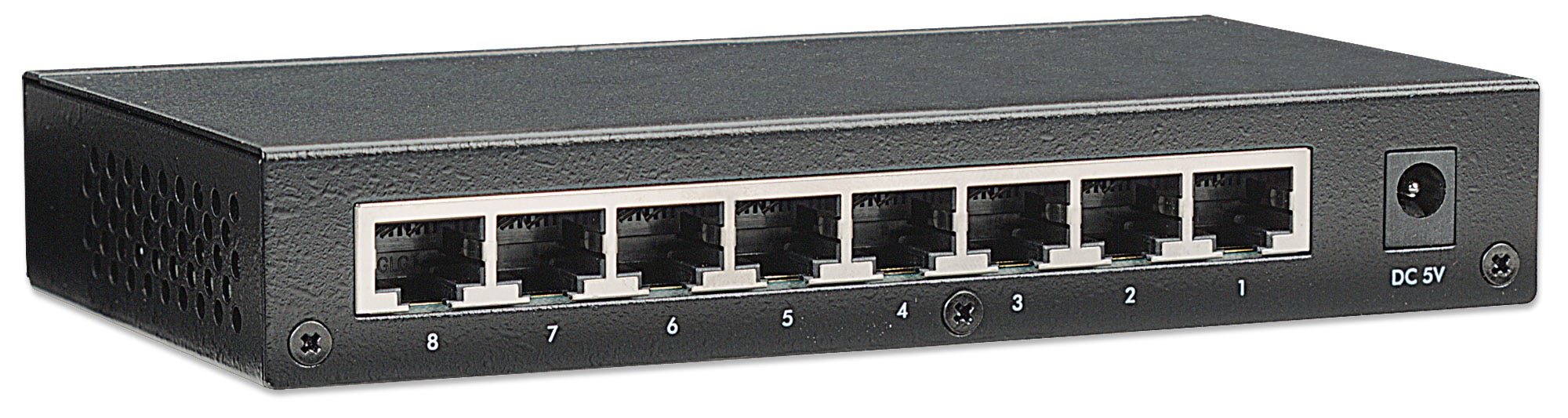

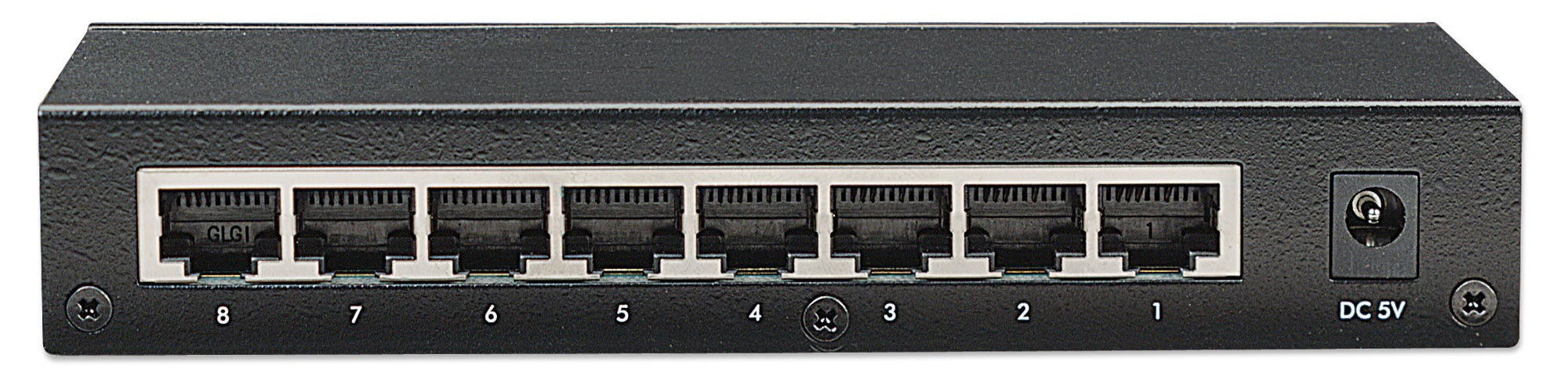

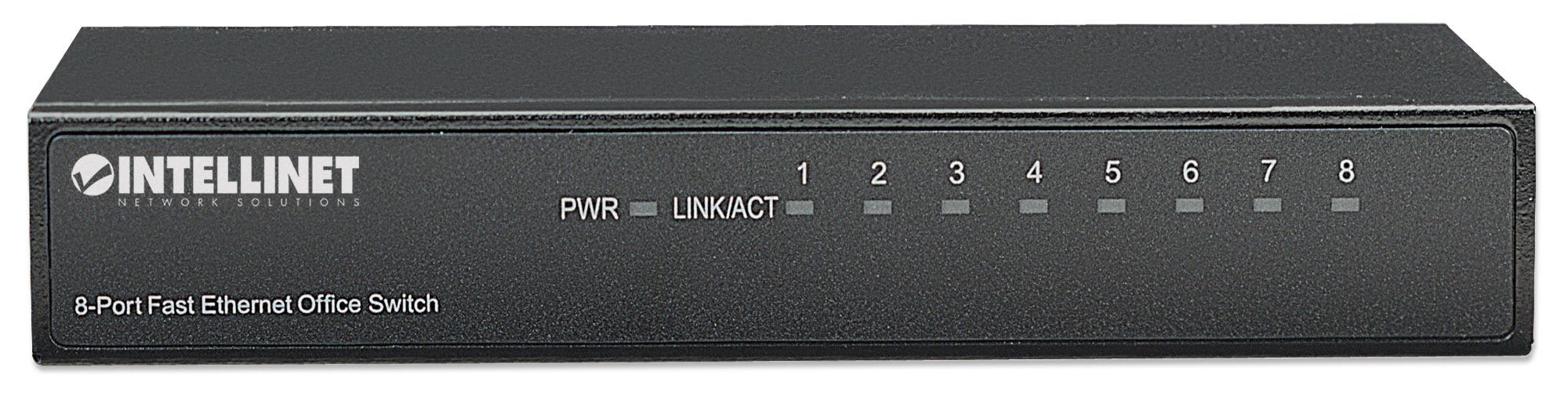

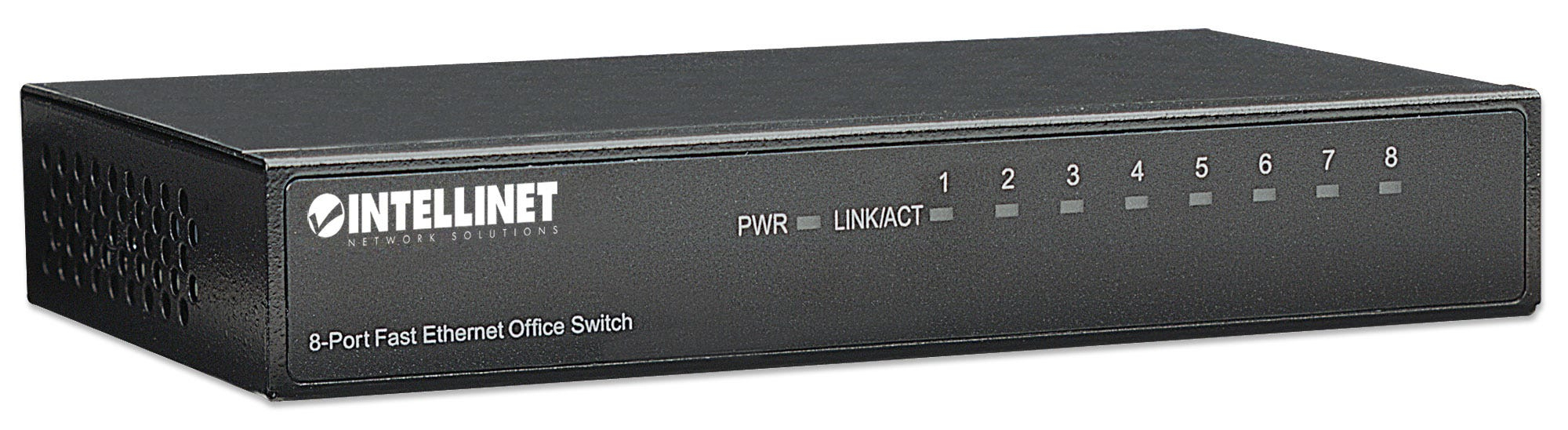

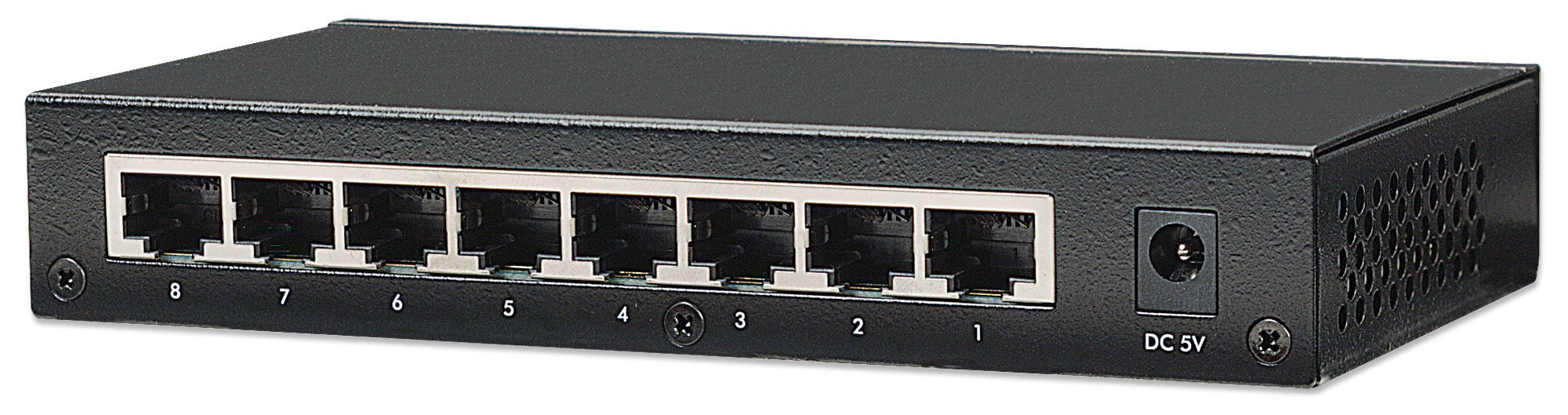

Intellinet 8-Port Fast Ethernet Office Switch
Model 8-Port Fast Ethernet Office SwitchPart no. 523318EAN 7666235233182
26 specifications
- ConnectivityWired
- Weight562.5 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1024 entries
Overview
- Connectivity
- Wired
- Weight
- 562.5 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1024 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 8-Port Fast Ethernet Office Switch
- Part number
- 523318
- EAN / UPC
- 7666235233182, 041114914036, 132018495605, 163121443597 +10 more
- Also known as
- Intellinet 8-Port Fast Ethernet Office Switch, Desktop Size, Metal, IEEE 802.3az (Energy Efficient Ethernet), Box
Specifications
26 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Packet buffer memory | 0.096 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (typical) | 3.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 85 mm |
| Height | 25 mm |
| Weight | 562.5 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
