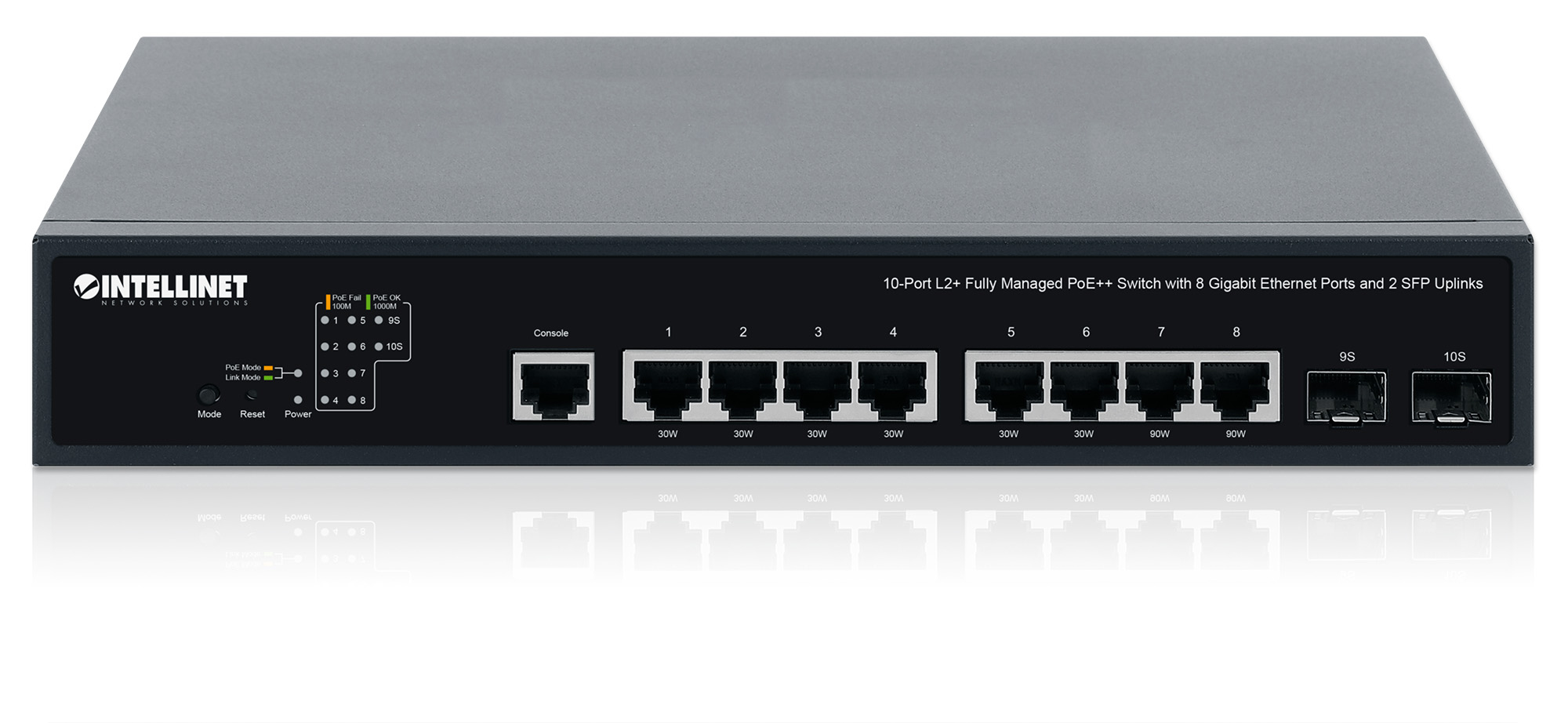

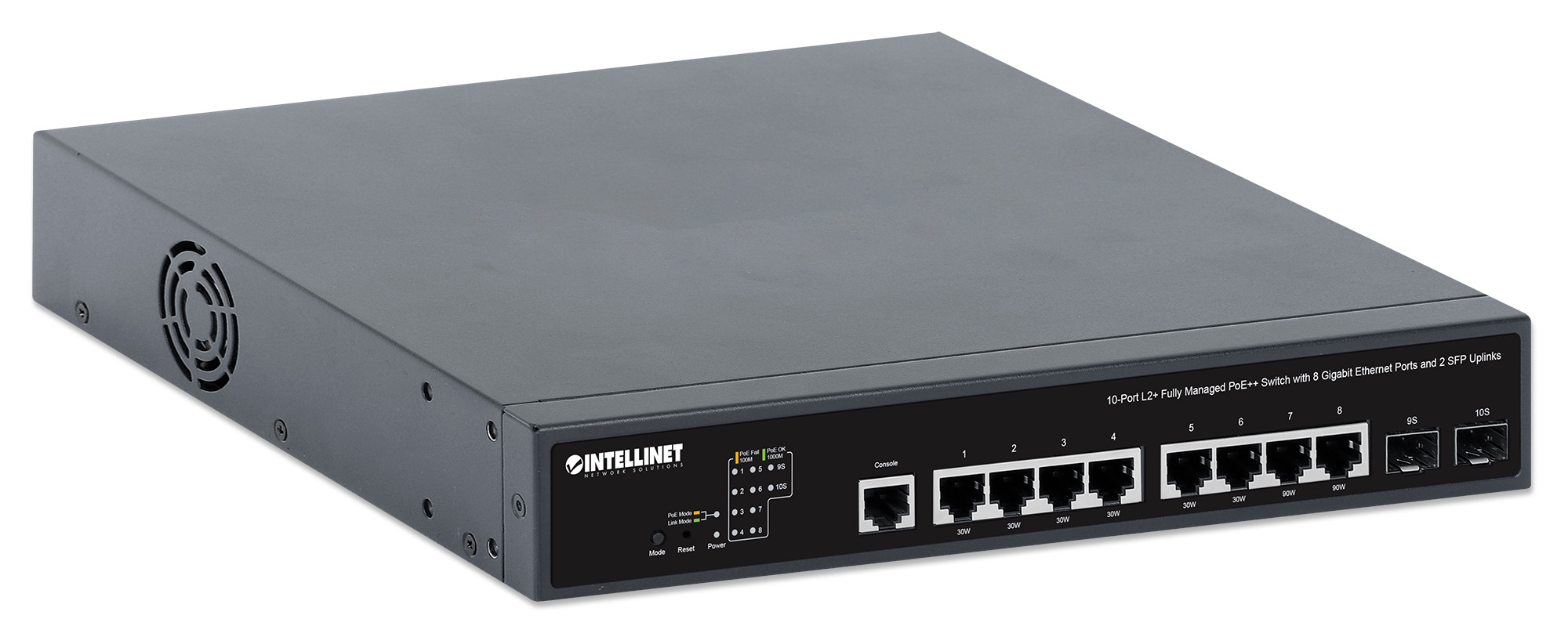

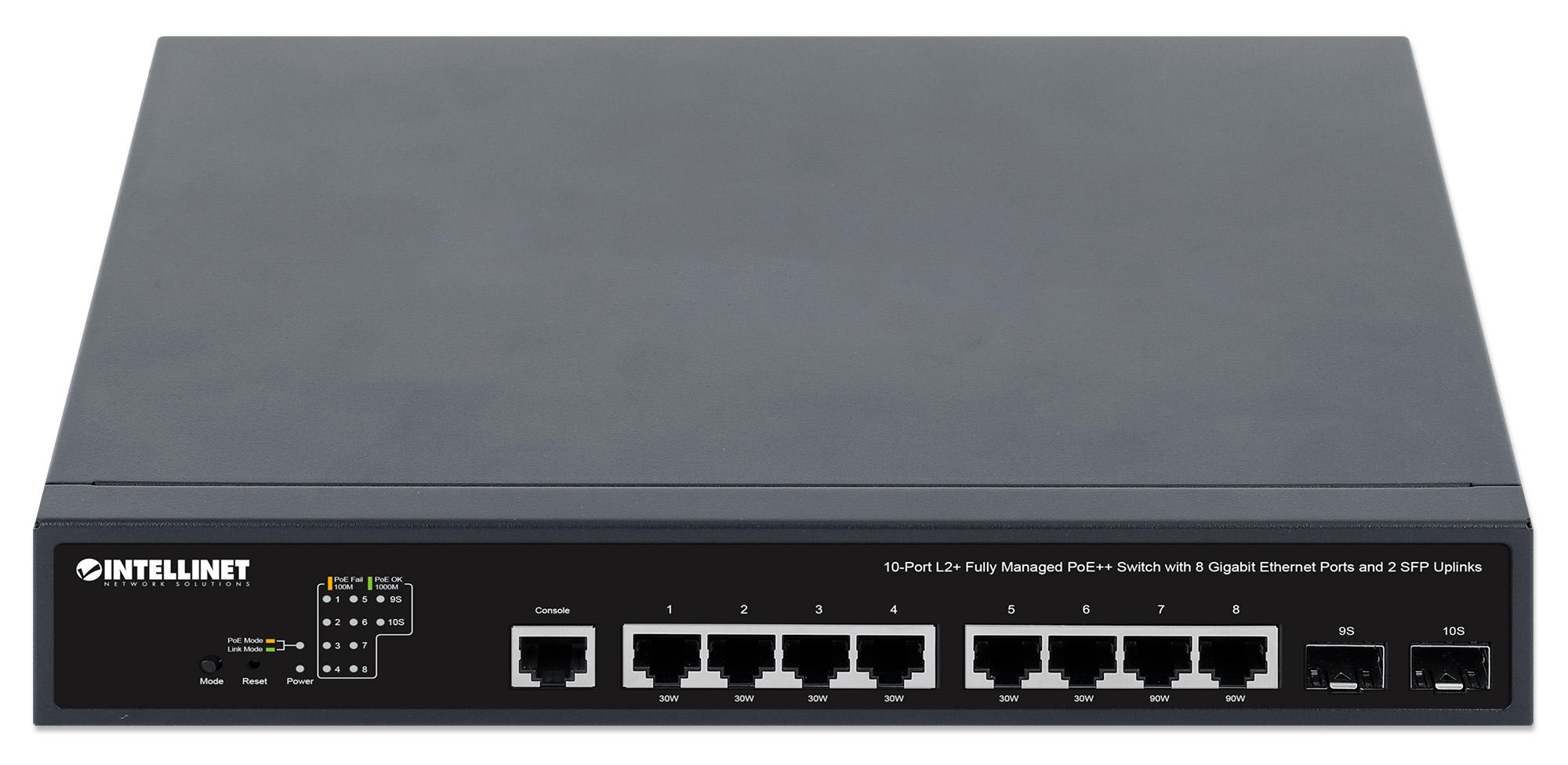

10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks
Model 562003EAN 766623562003
75 specifications
- Type1U
- Weight2.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 562003
- Part number
- 562003
- EAN / UPC
- 766623562003
- Also known as
- Intellinet 10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks
Specifications
75 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP snooping |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, System |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 392650 h |
Power
| Specification | Value |
|---|---|

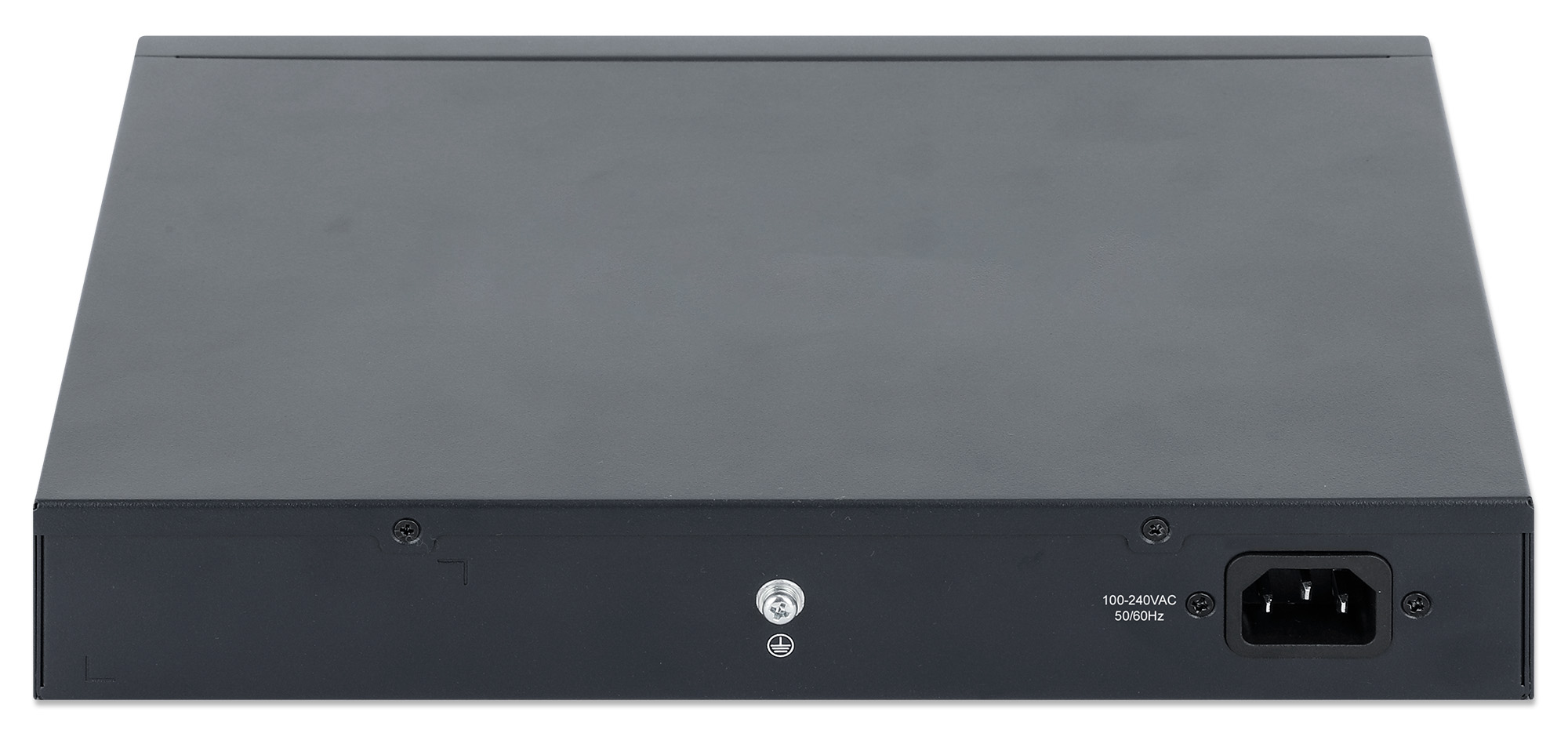

| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 252 W |
| Power protection features | Surge protection |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Total Power over Ethernet (PoE) budget | 242 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|

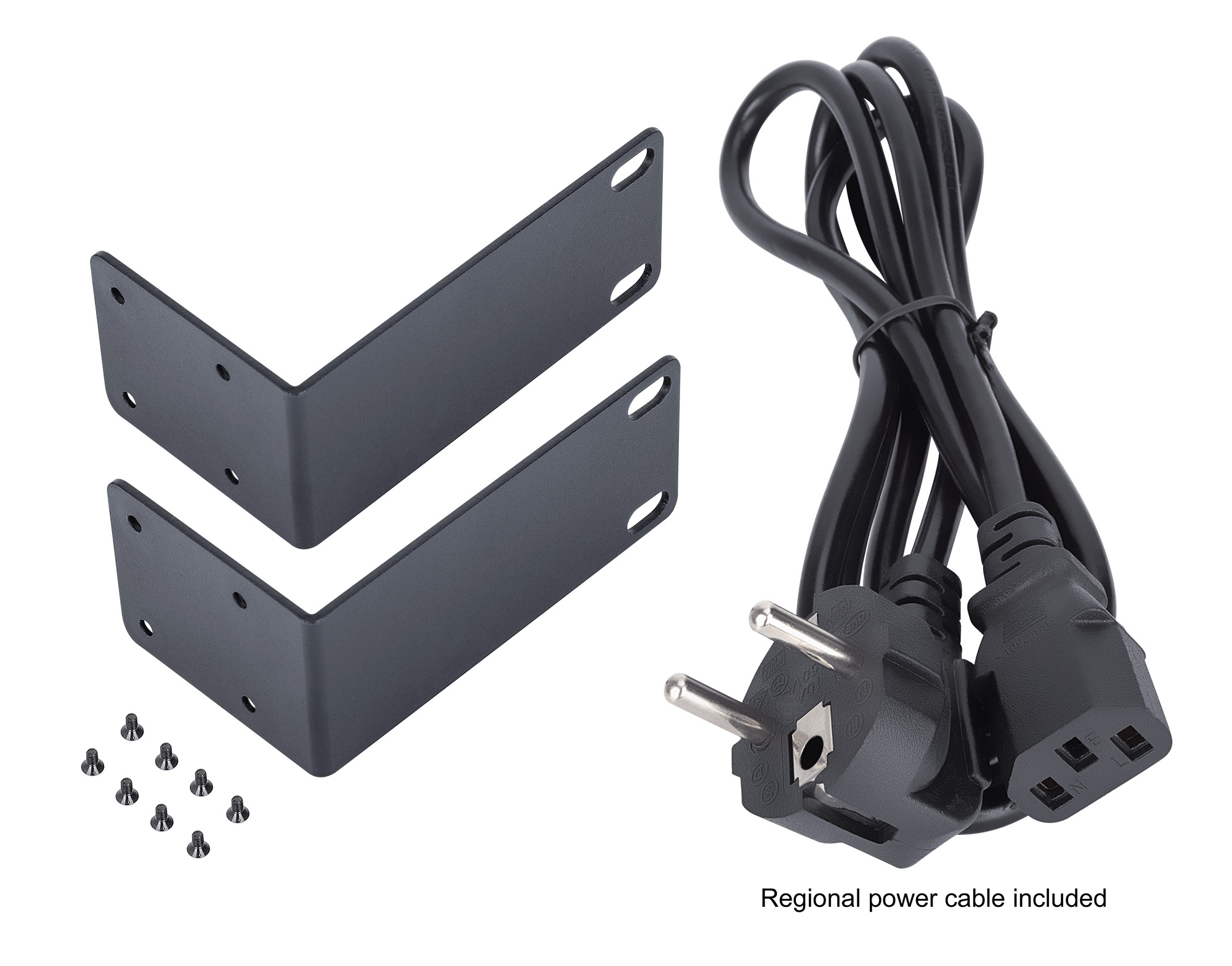

| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 357 mm |
| Package depth | 355 mm |
| Package height | 101 mm |
| Package weight | 2.65 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | FCC, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 307 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 307 mm |
| Master (outer) case gross weight | 11.7 kg |
| Products per master (outer) case | 4 pc(s) |
