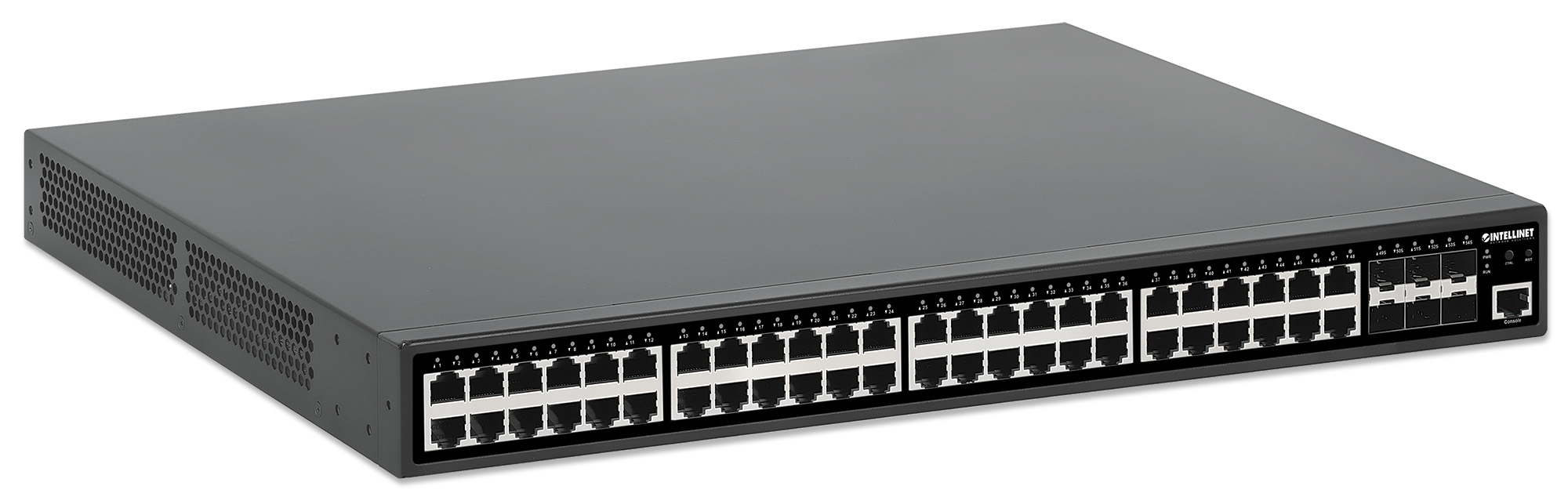

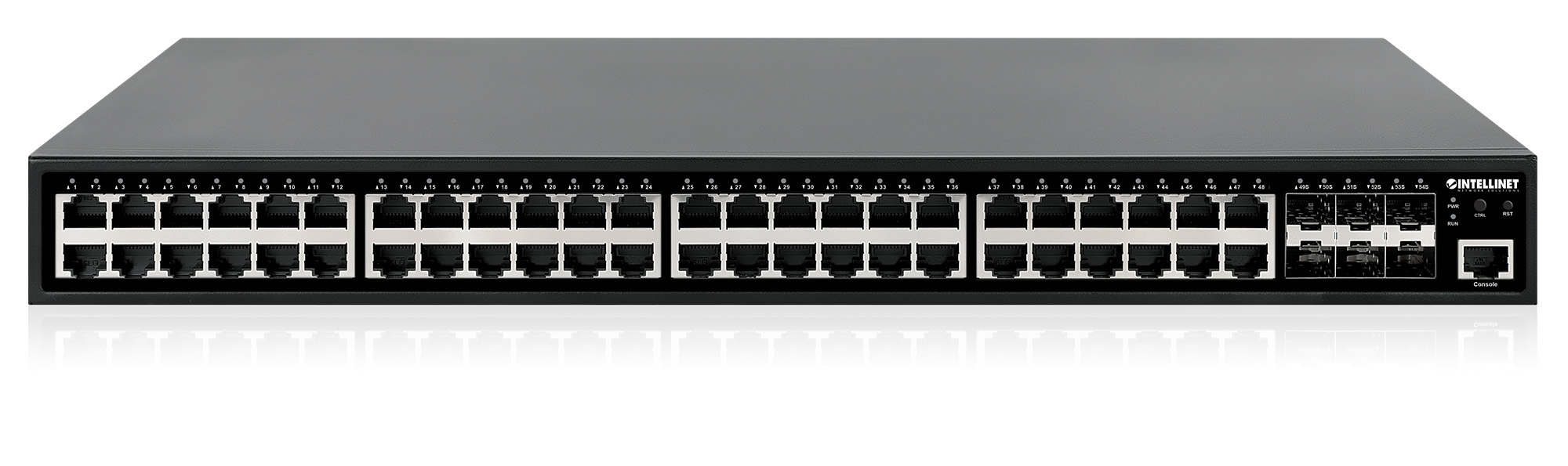

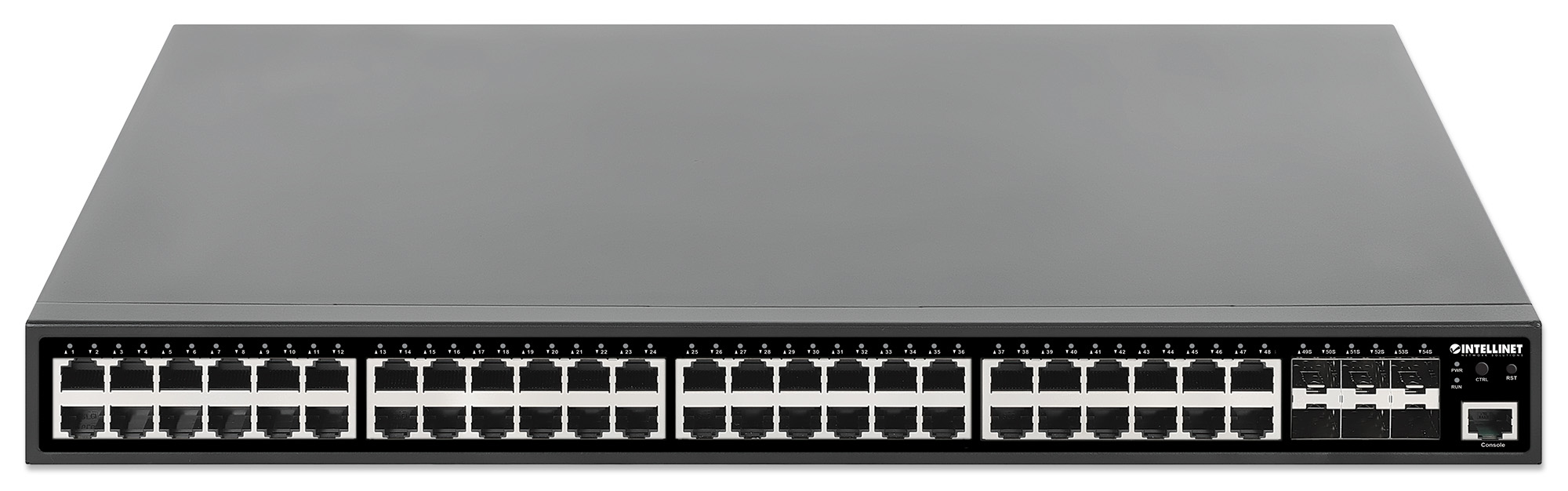

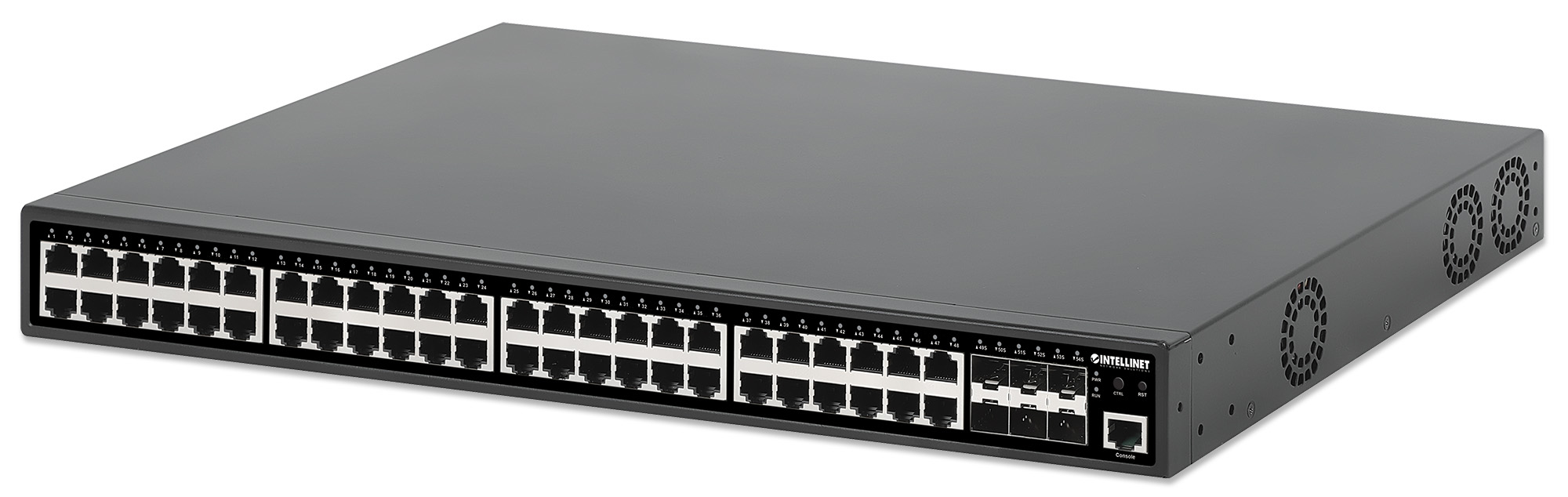

48-Port Gigabit Ethernet PoE+ Layer 2+ Managed Switch with Six
10G SFP+ Uplinks IEEE 802.3at/af (PoE+/PoE) Compliant, 450 W PoE Power Budget, Layer 2
Model 561969-UKEAN 766623996396
67 specifications
- Type1U
- Weight5.45 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 5.45 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561969-UK
- Part number
- 561969-UK
- EAN / UPC
- 766623996396
- Also known as
- Intellinet 48-Port Gigabit Ethernet PoE+ Layer 2+ Managed Switch with Six 10G SFP+ Uplinks IEEE 802.3at/af (PoE+/PoE) Compliant, 450 W PoE Power Budget, Layer 2
Specifications
67 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 6 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.704 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP snooping |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, System |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 460 W |
| Power saving mode (EEE) | Yes |
| Power protection features | Over voltage, Overload, Short circuit |

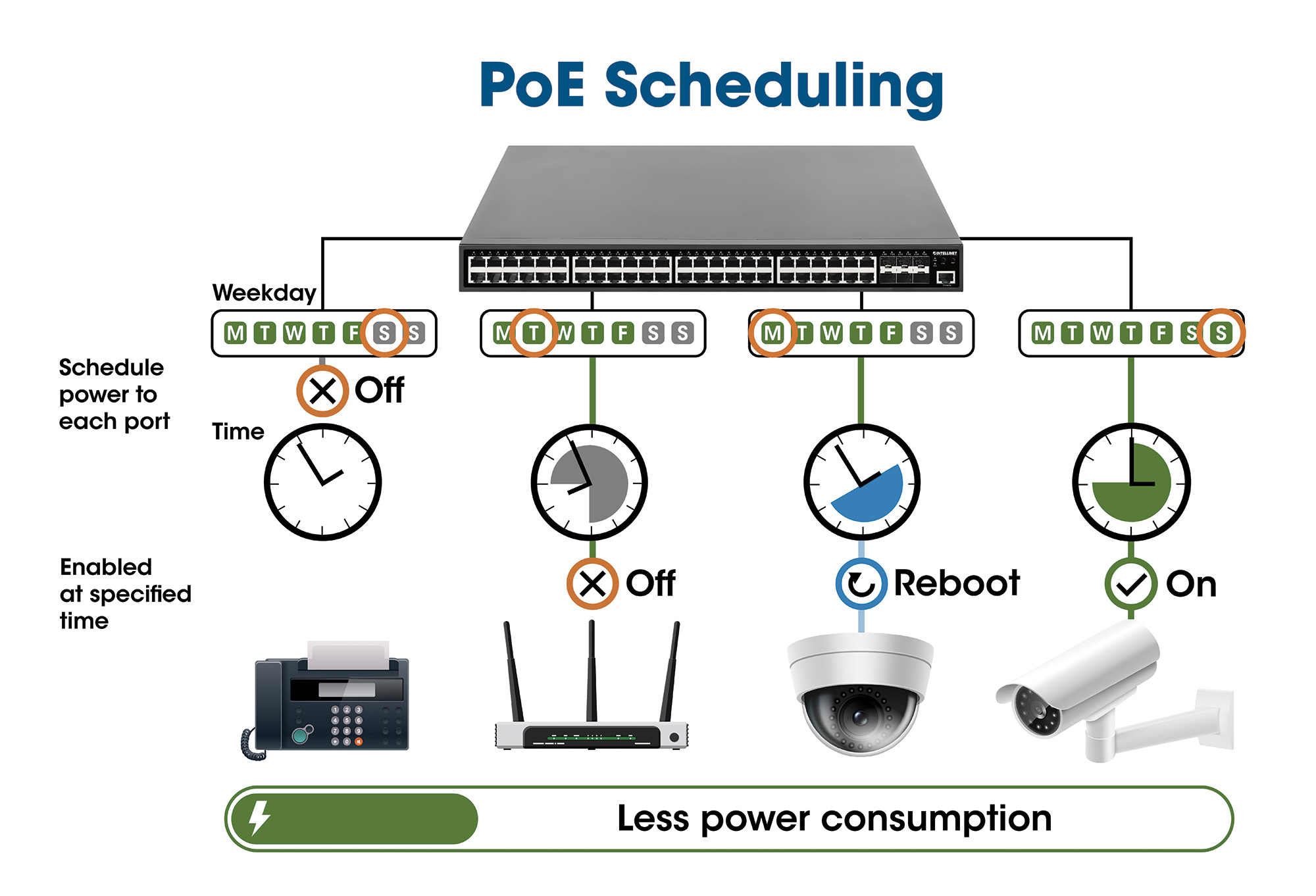

Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 450 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 5.45 kg |

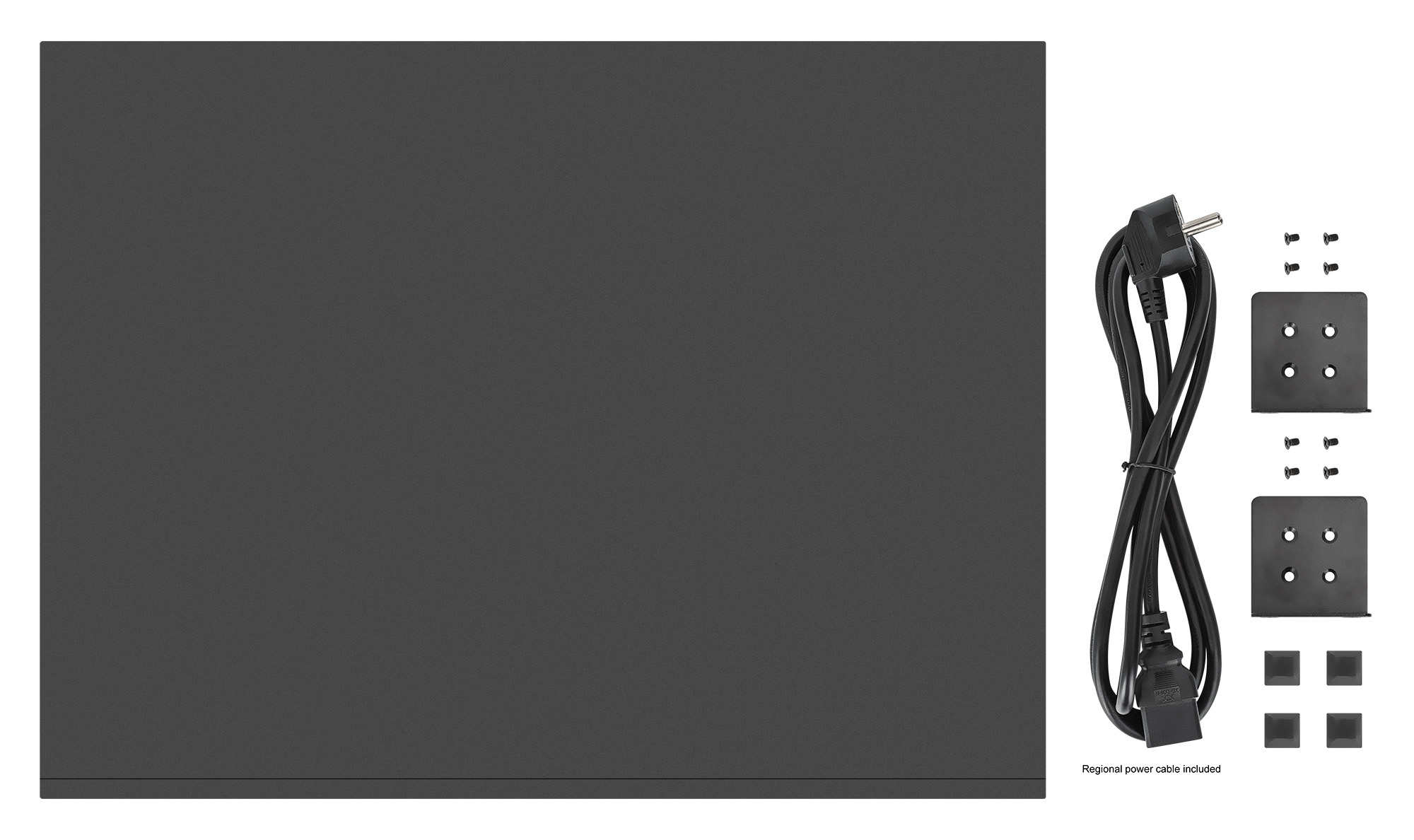

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS, UKCA, NDAA |
