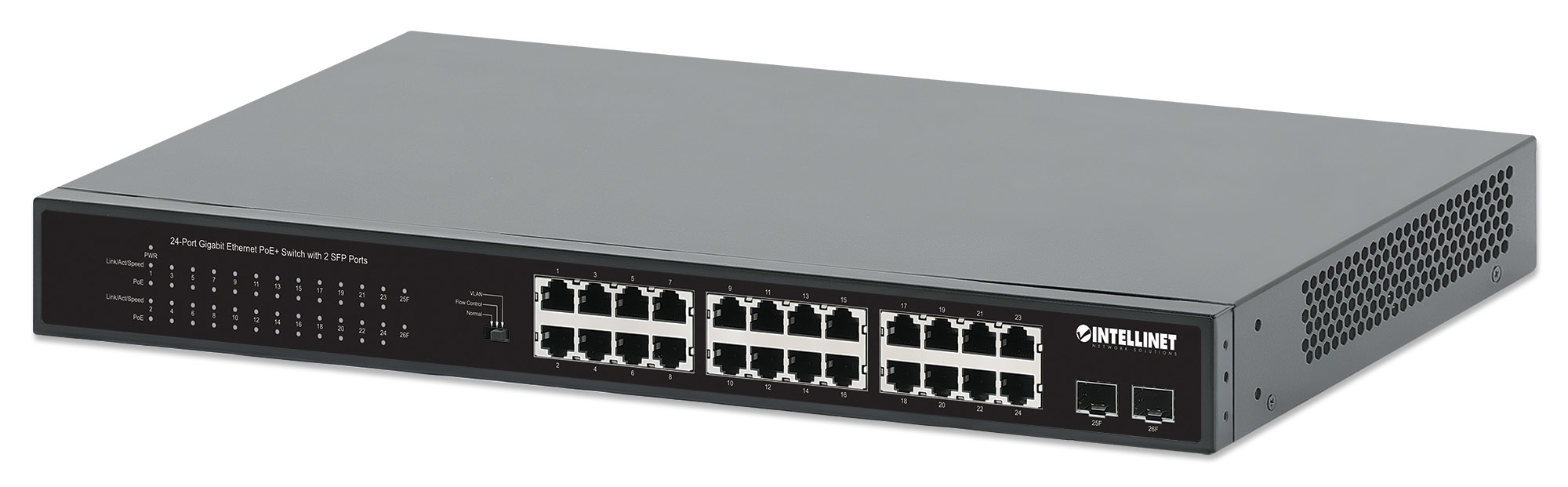

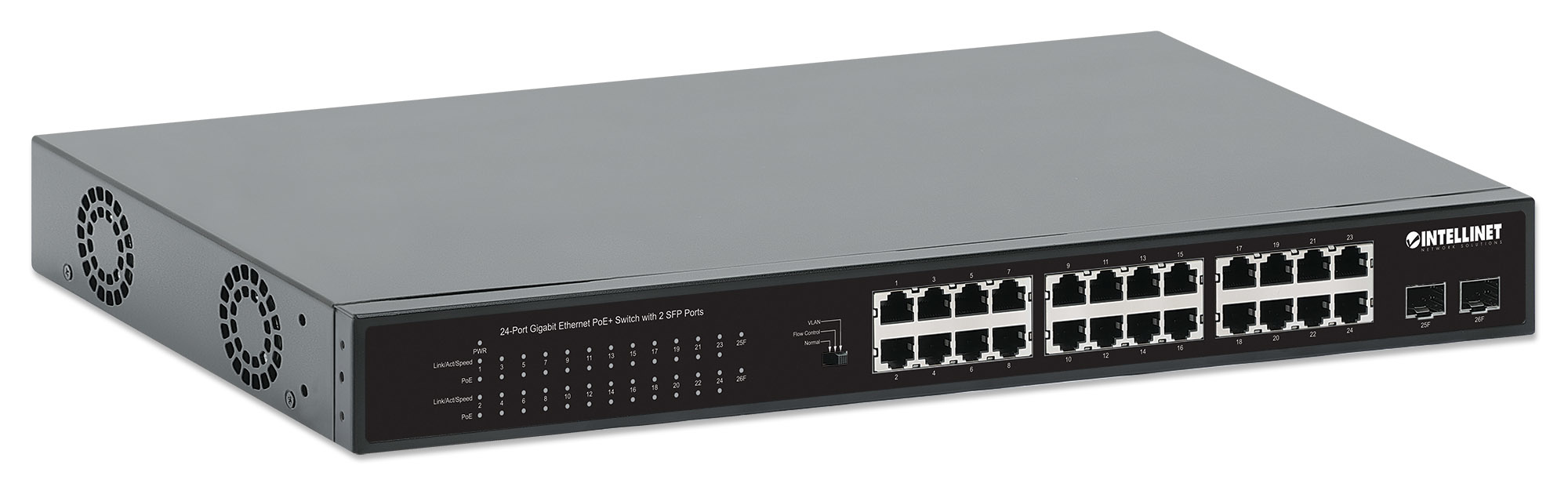

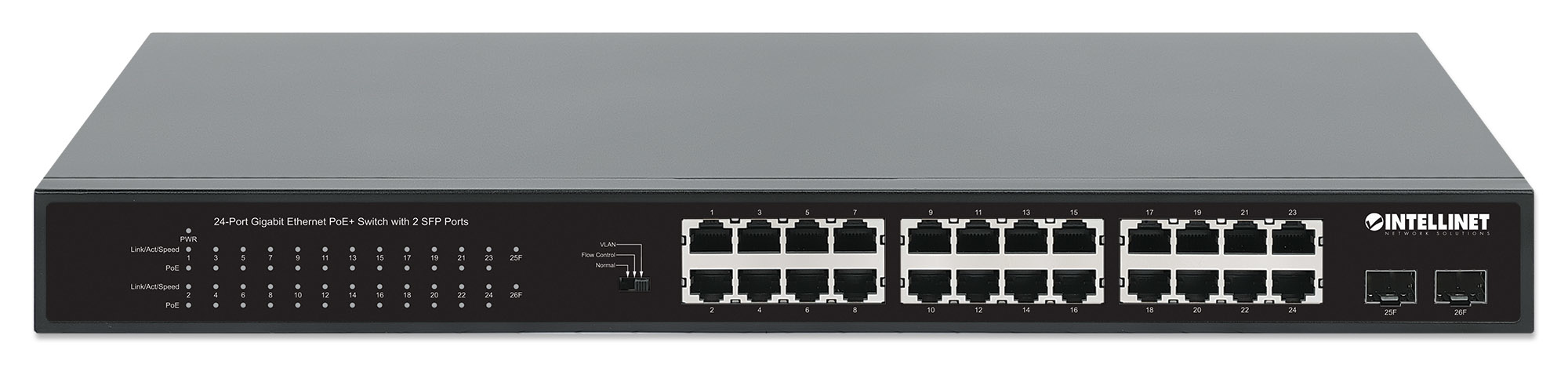

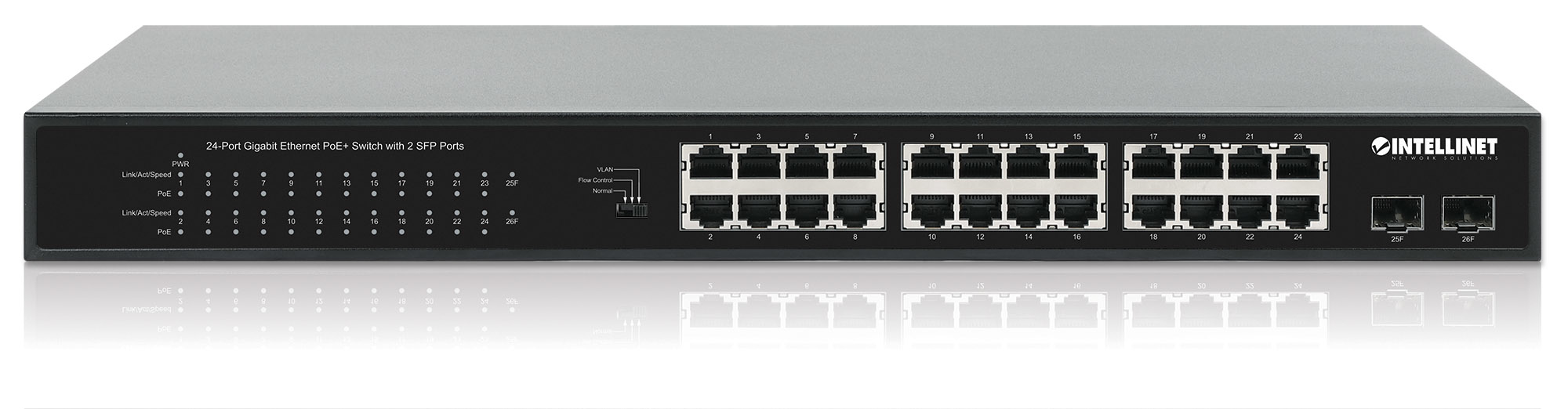

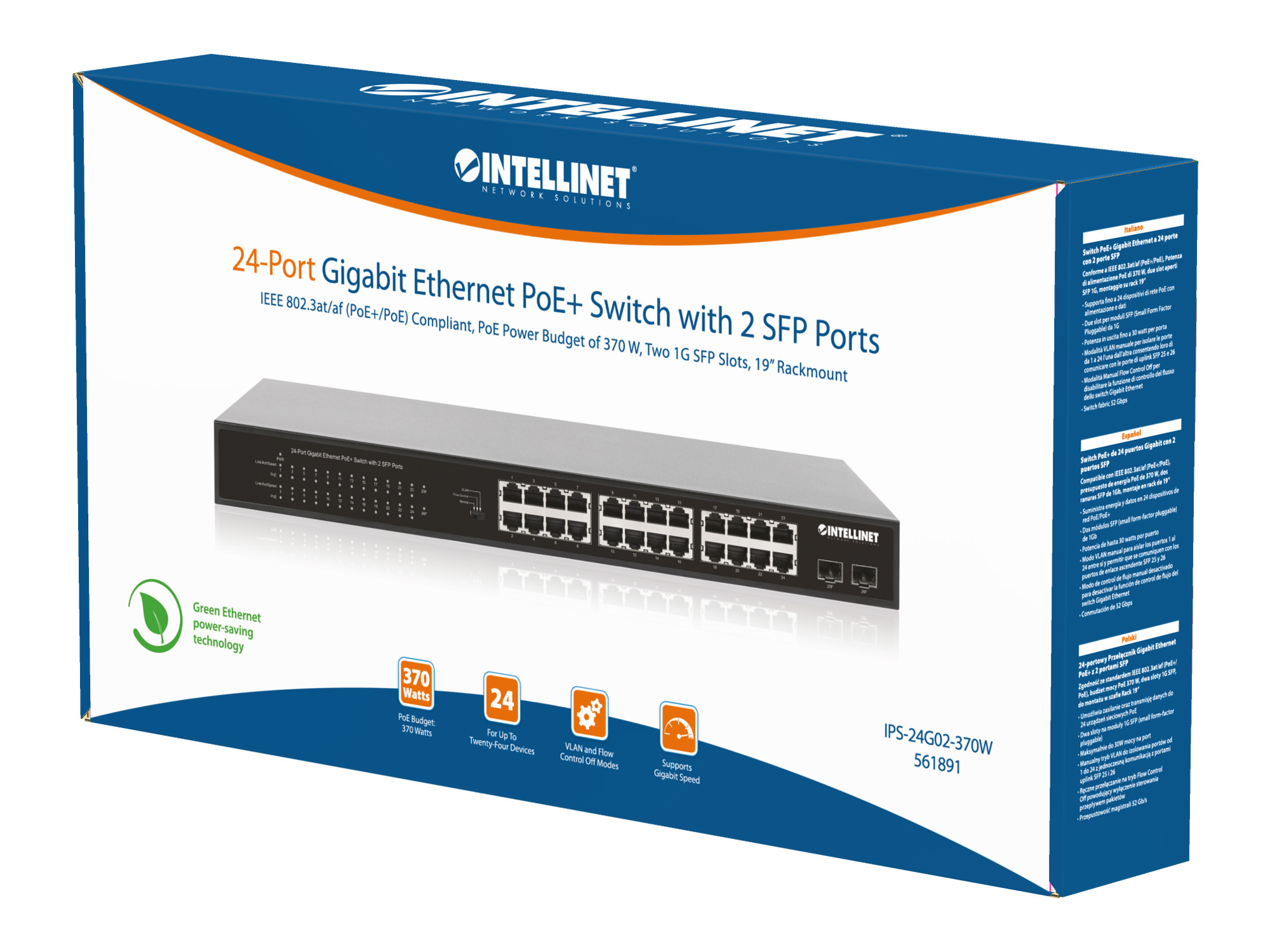

24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of
370 W, Two 1G SFP Open Slots, 19" Rac
Model 561891-UKEAN 766623996341
61 specifications
- Type1U
- Weight3.37 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Type
- 1U
- Weight
- 3.37 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561891-UK
- Part number
- 561891-UK
- EAN / UPC
- 766623996341
- Also known as
- Intellinet 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget of 370 W, Two 1G SFP Open Slots, 19" Rac
Specifications
61 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 10GBASE-T, 100BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 36.688 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9200 |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 400 W |
| Power saving mode (EEE) | Yes |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 3.37 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 295 mm |
| Package depth | 555 mm |
| Package height | 90 mm |
| Package weight | 3.87 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 375 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 16.6 kg |
| Products per master (outer) case | 4 pc(s) |
