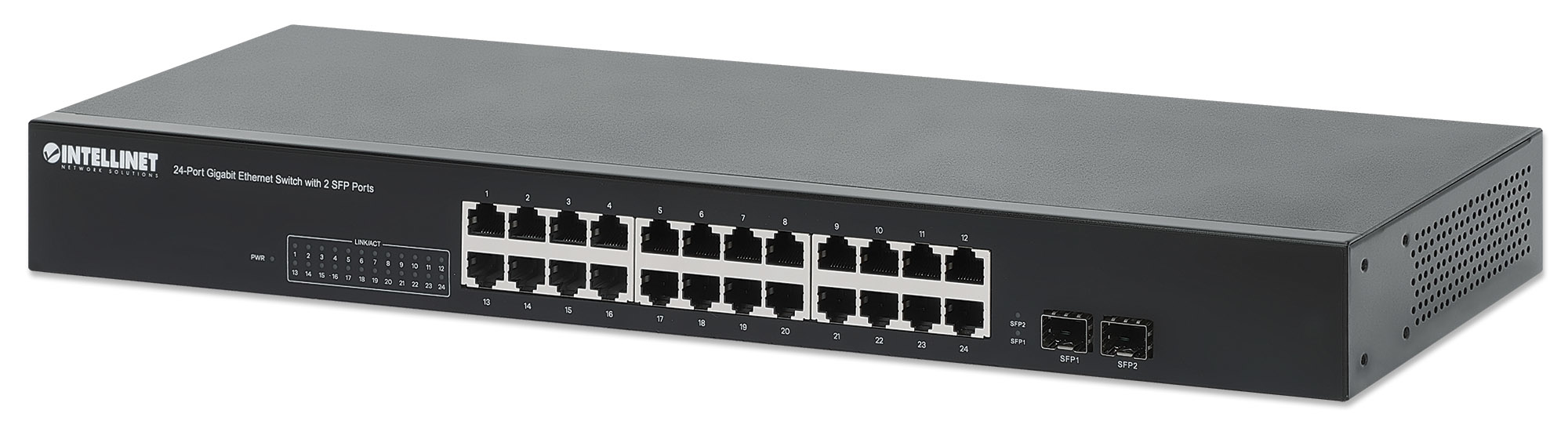

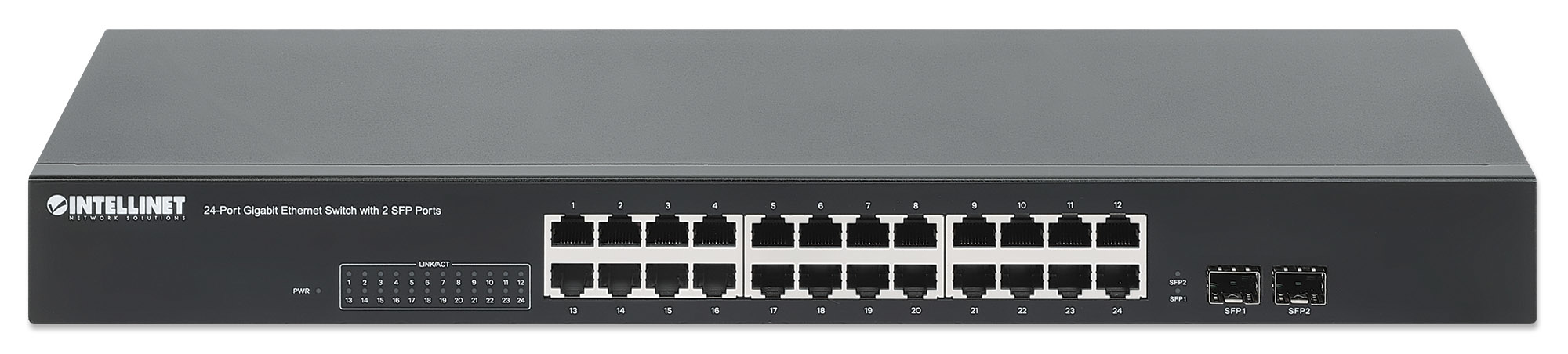

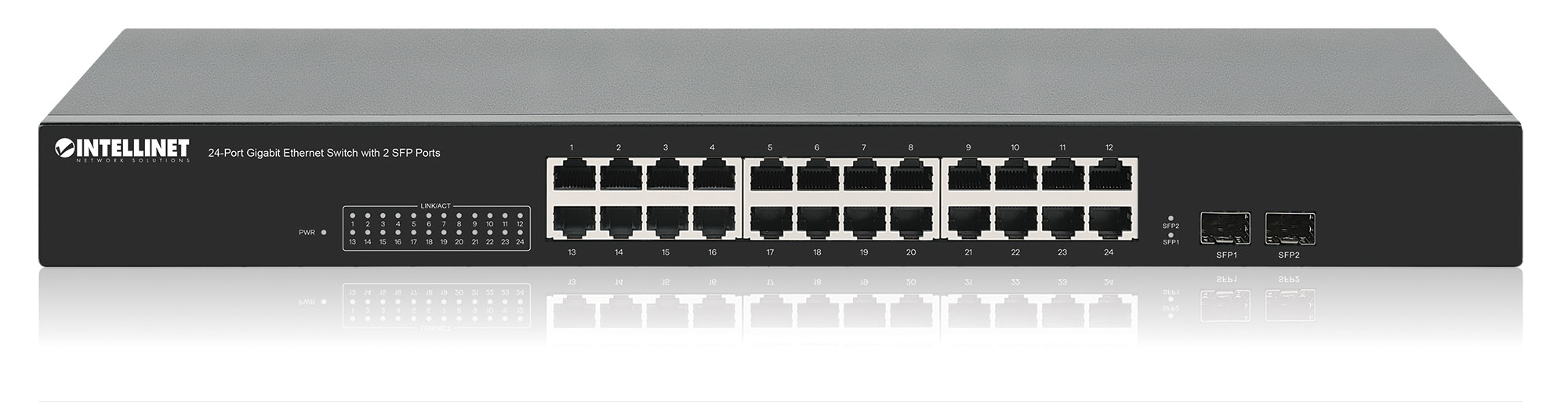

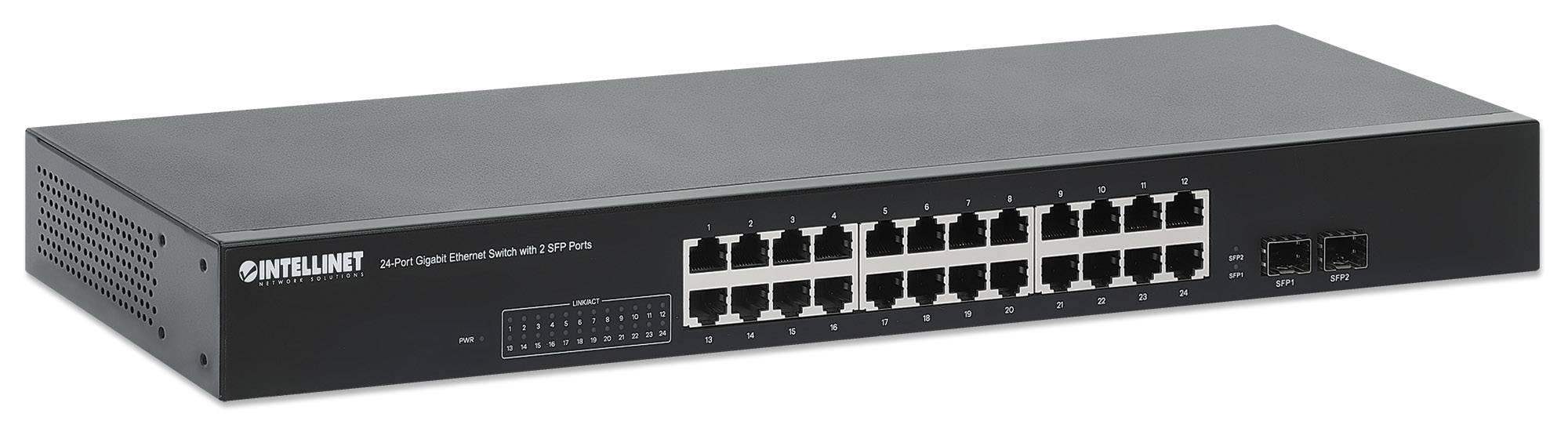

24-Port Gigabit Ethernet Switch with 2 SFP Ports
24 x 10/100/1000 Mbps RJ45 Ports + 2x SFP, IEEE 802.3az, 19" Rackmount
Model 561877EAN 766623561877
42 specifications
- Weight1.75 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
- Rack mountingYes
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Rack mounting
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561877
- Part number
- 561877
- EAN / UPC
- 766623561877
- Also known as
- Intellinet 24-Port Gigabit Ethernet Switch with 2 SFP Ports, 24 x 10/100/1000 Mbps RJ45 Ports + 2x SFP, IEEE 802.3az, 19" Rackmount
Specifications
42 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1.75 kg |
Packaging content
| Specification | Value |
|---|---|

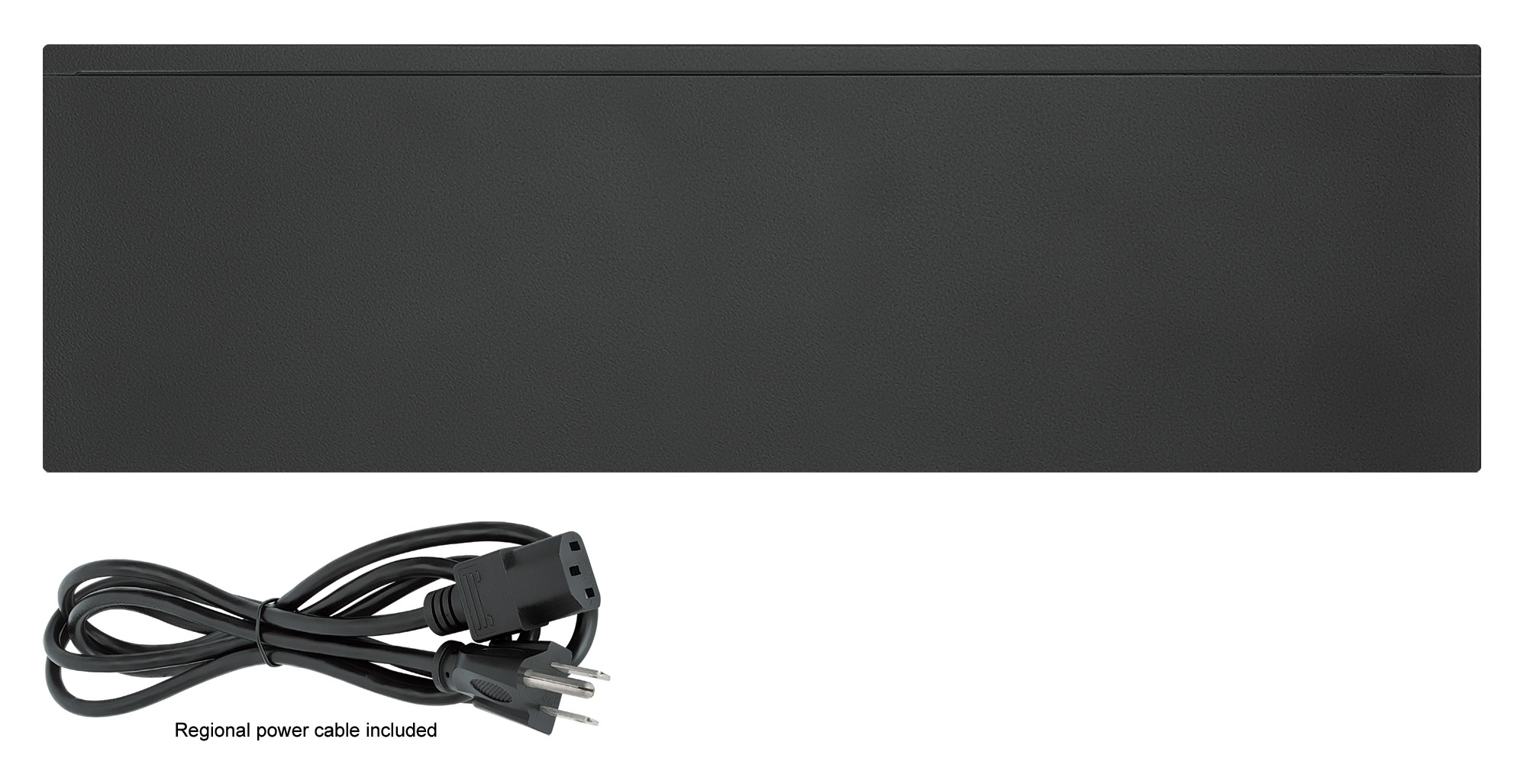

| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, UKCA, NDAA |
