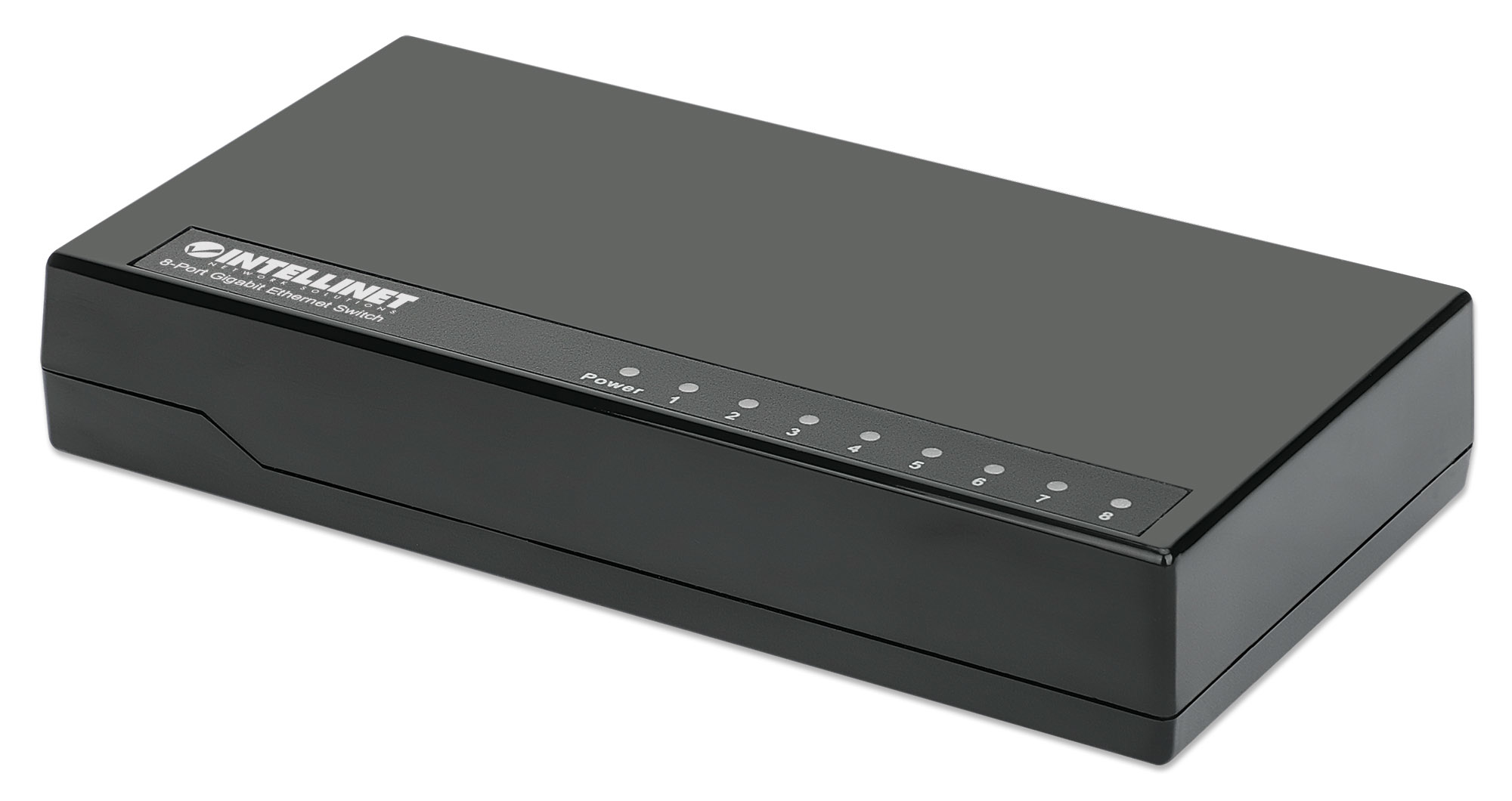

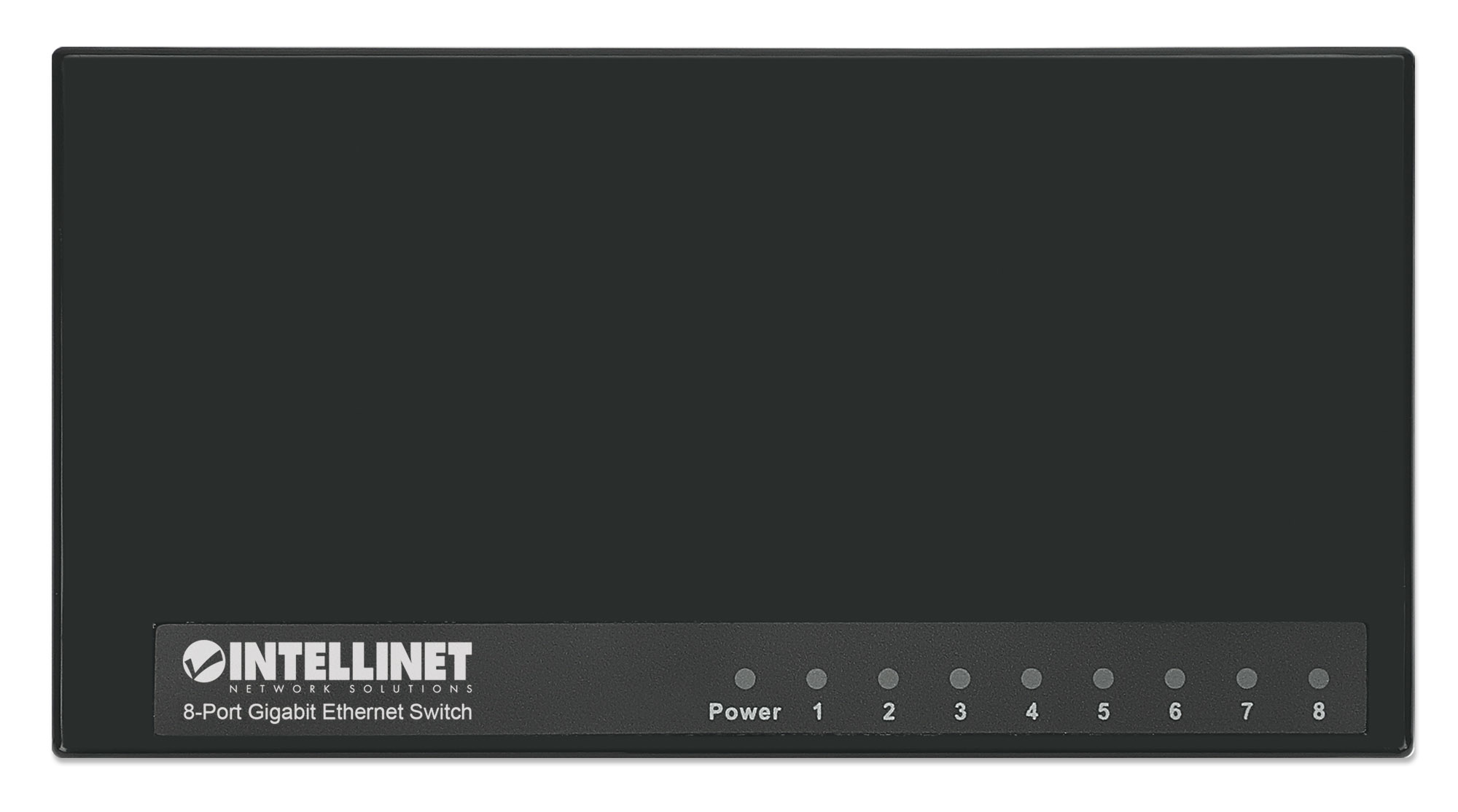

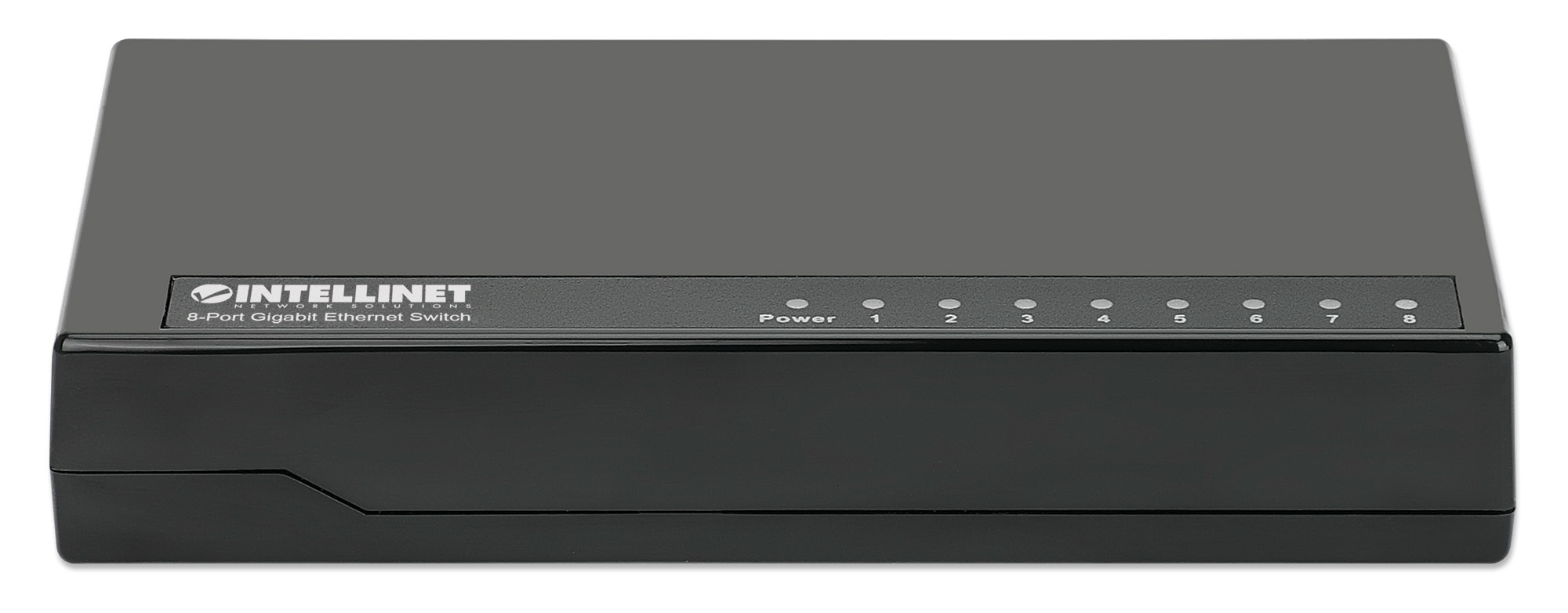

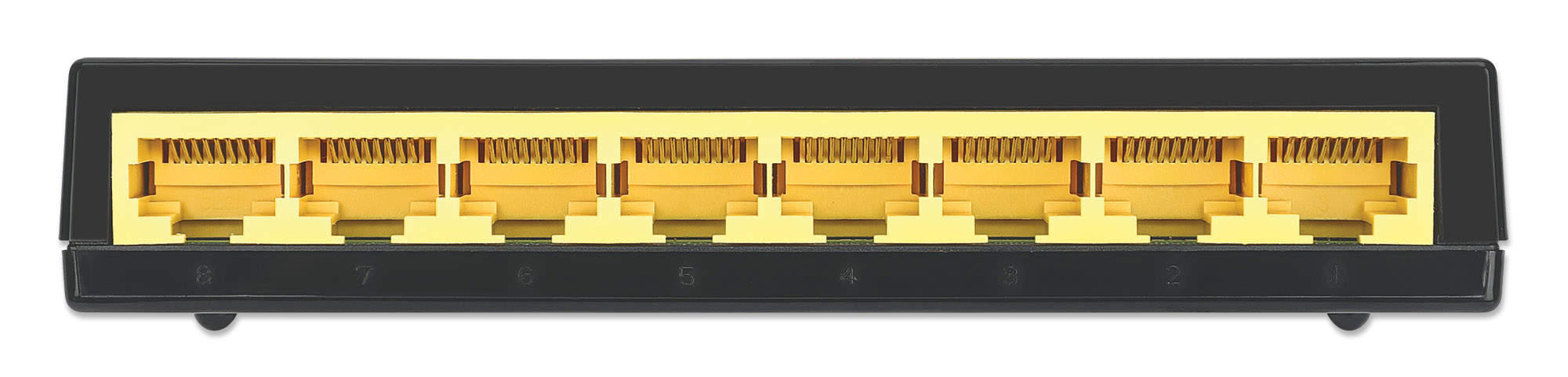

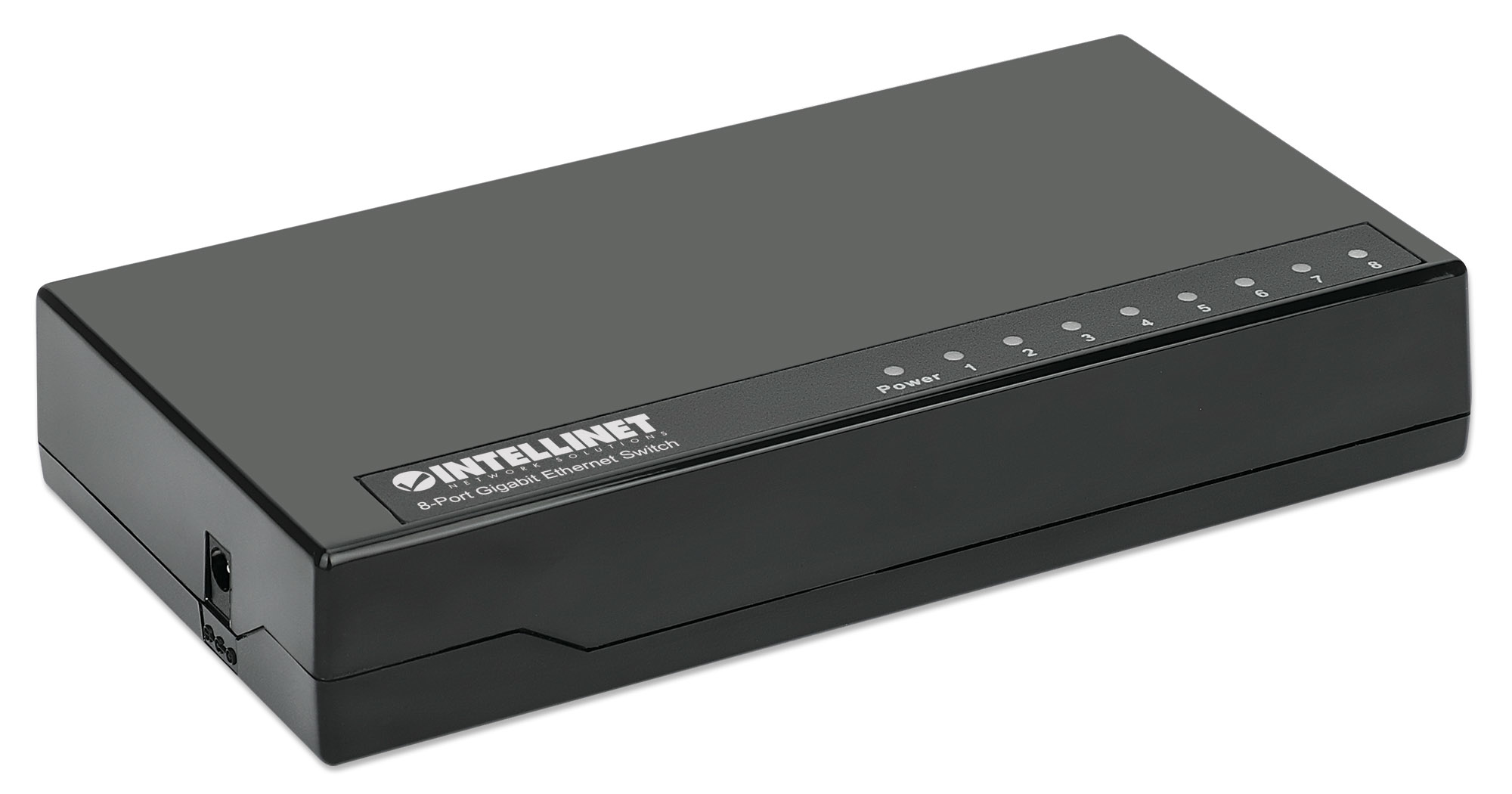

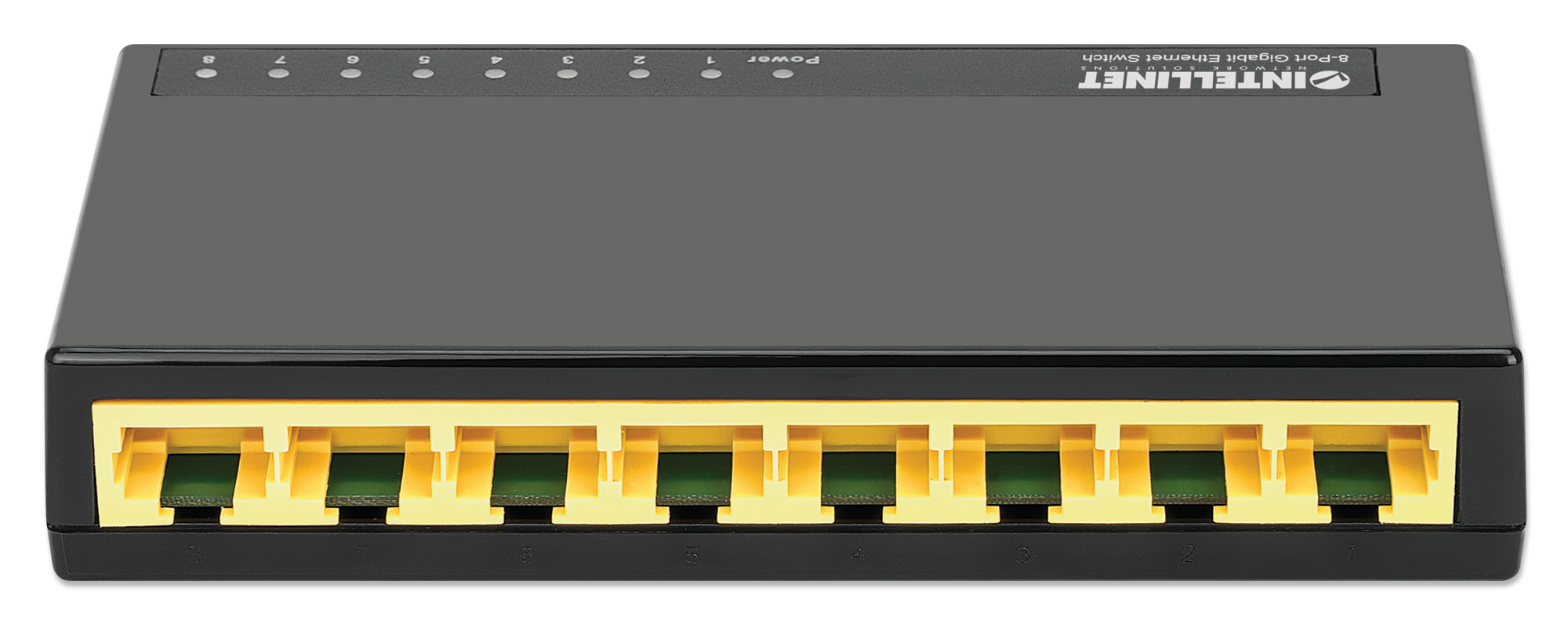

8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black
Model 561754EAN 766623561754
31 specifications
- Weight150 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
- Power sourceAC
Overview
- Weight
- 150 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Power source
- AC
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561754
- Part number
- 561754
- EAN / UPC
- 766623561754
- Also known as
- Intellinet 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black
Specifications
31 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat6 |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power, Speed |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Power consumption (max) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 125 mm |
| Height | 22 mm |
| Weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
