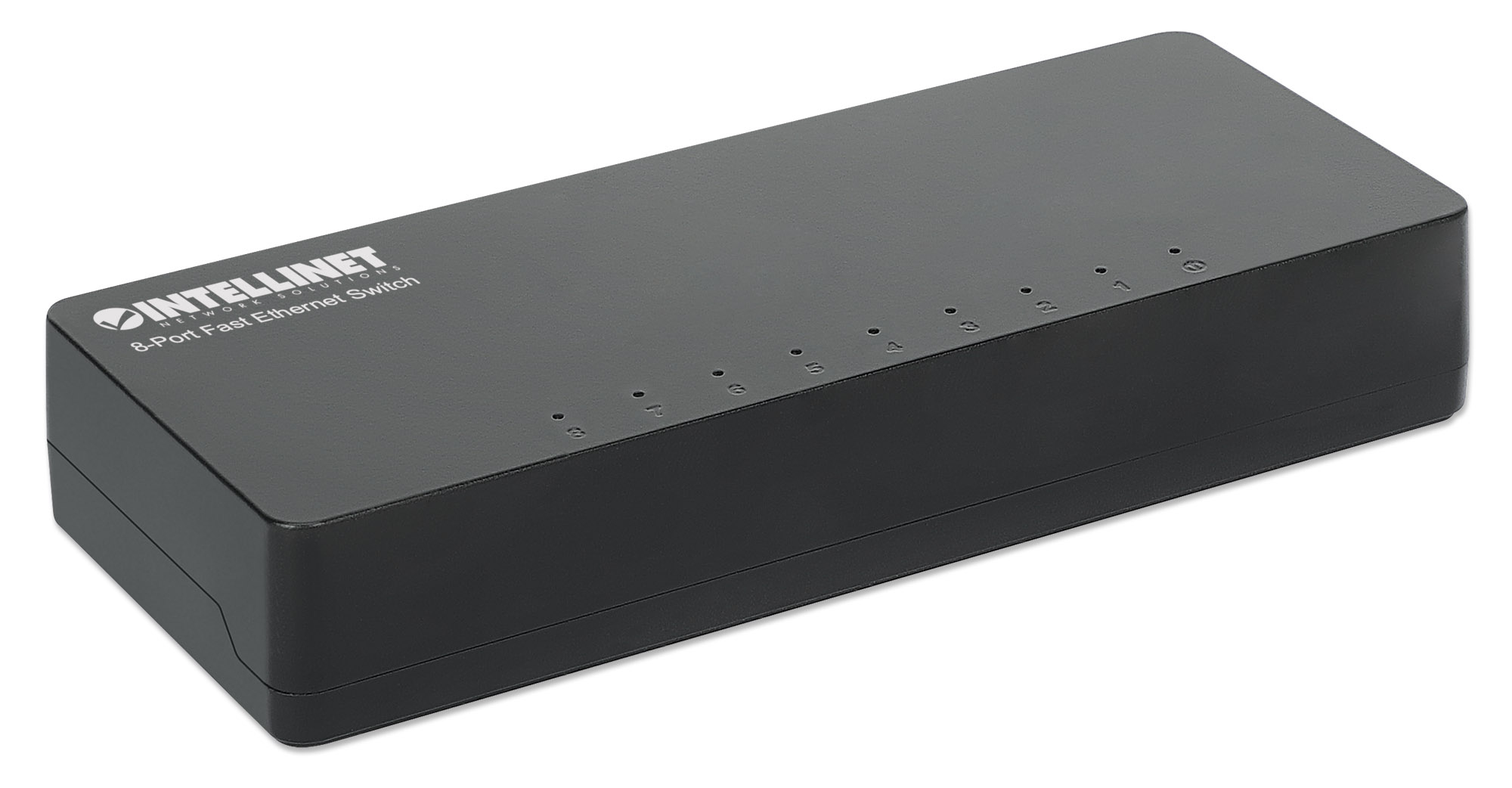

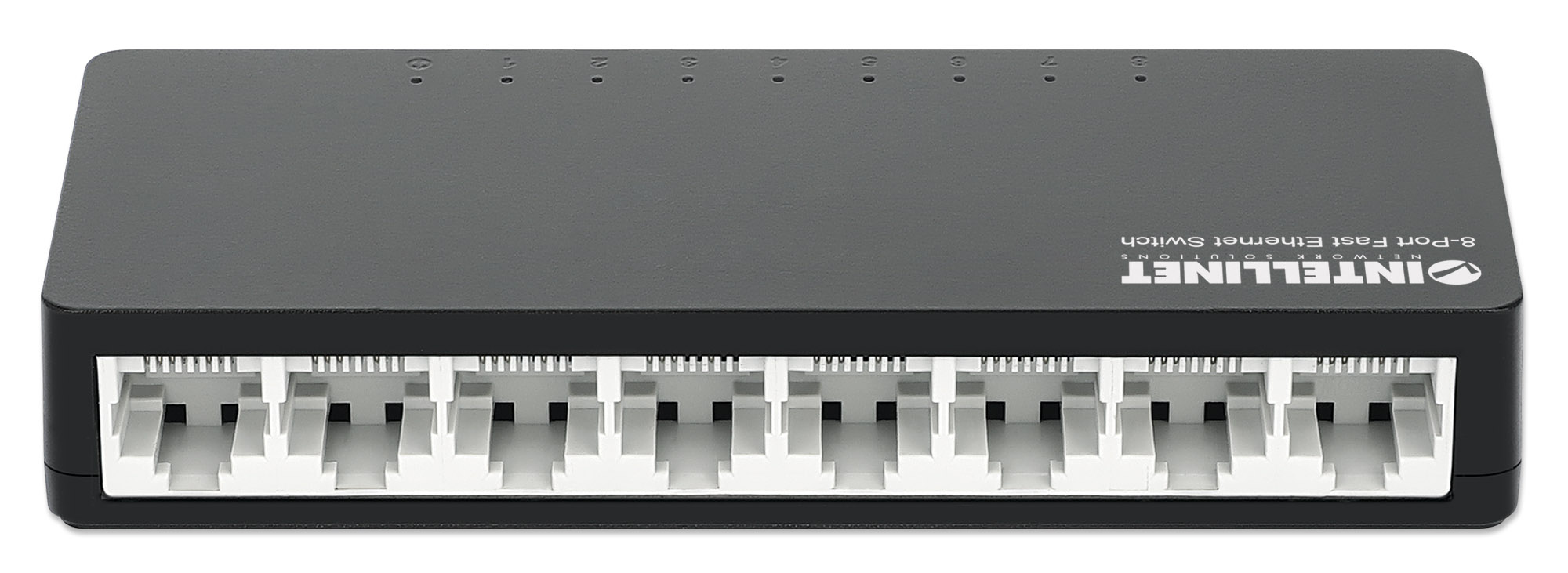

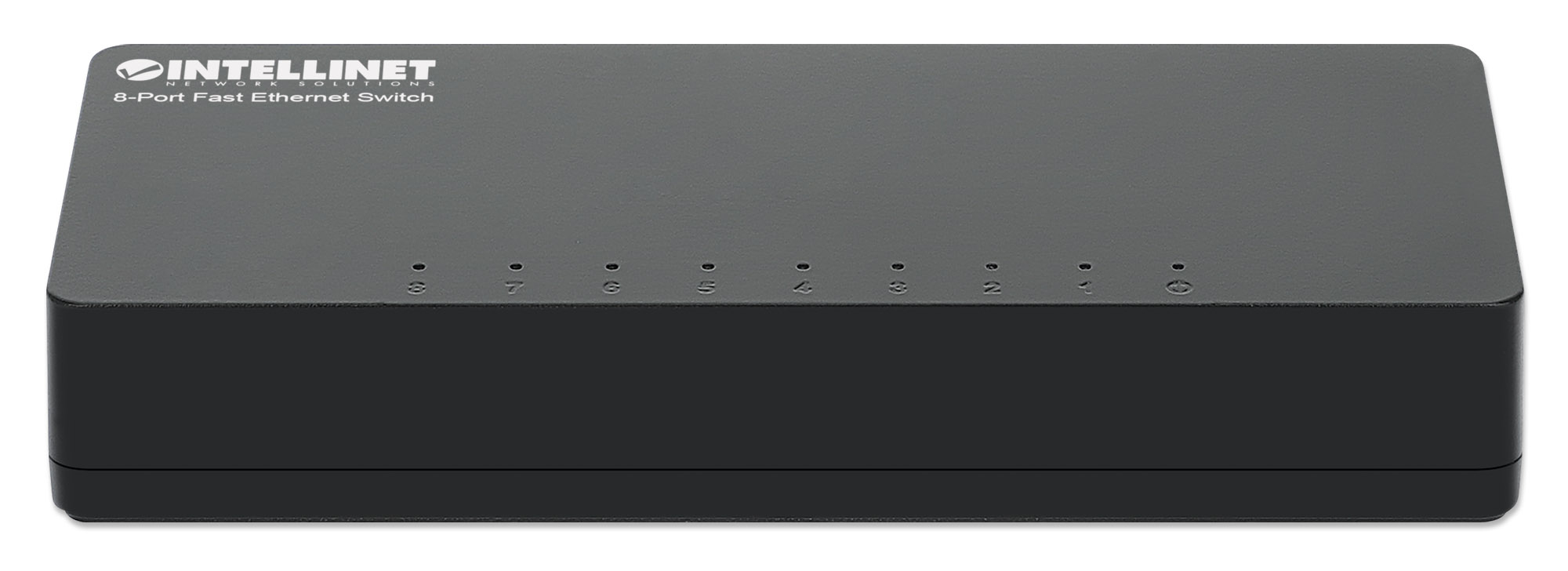

8-Port Fast Ethernet Switch Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black
Model 561730EAN 766623561730
36 specifications
- Weight150 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1000 entries
- FanlessYes
Overview
- Weight
- 150 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1000 entries
- Fanless
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561730
- Part number
- 561730
- EAN / UPC
- 766623561730
- Also known as
- Intellinet 8-Port Fast Ethernet Switch Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Black
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|

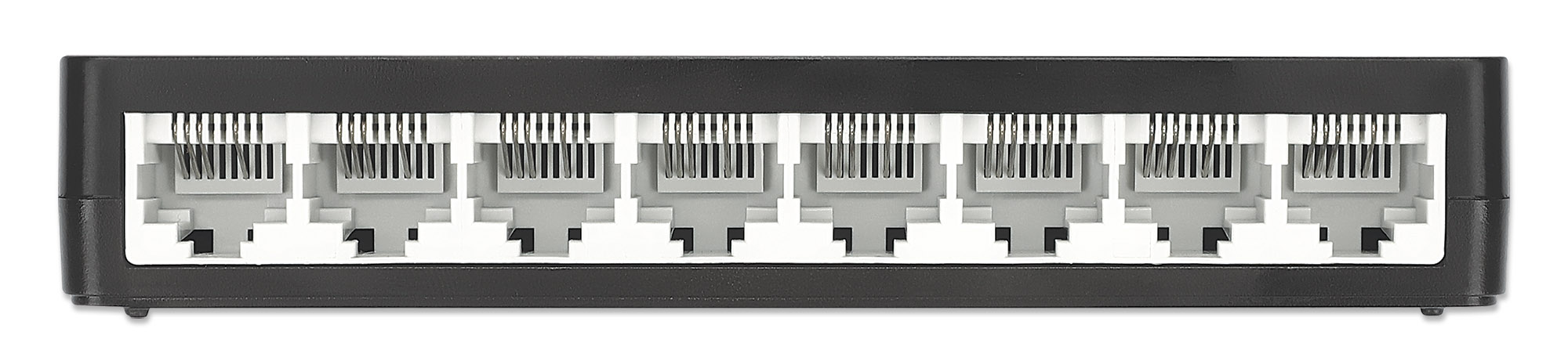

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat6 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 1.19 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |

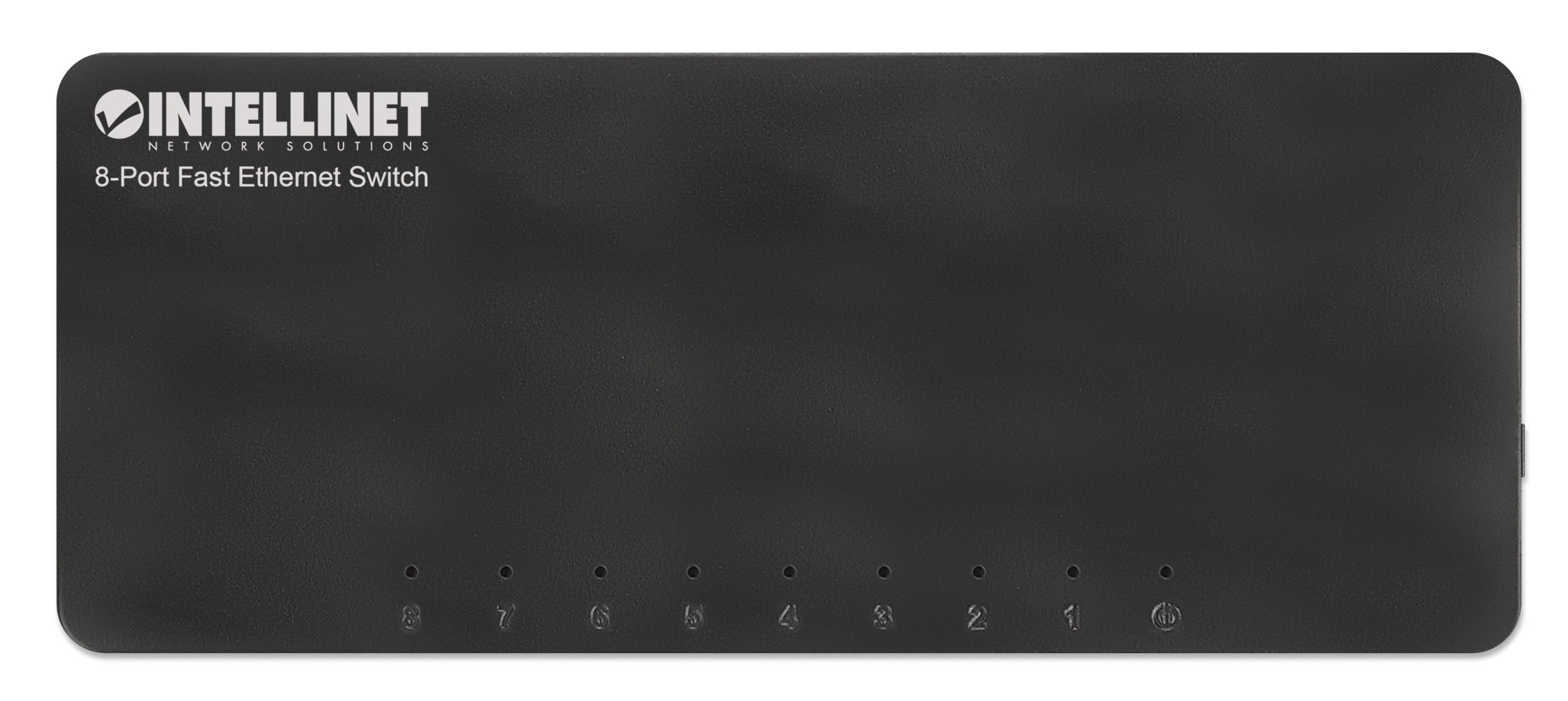

| LED indicators | Activity, Link, Power, Speed |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Input current | 0.55 A |
| Input voltage | 5 V |
| Power consumption (max) | 1.26 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 124 mm |
| Height | 21 mm |
| Weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
