6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power
60 W PSE PoE Port, Three IEEE 802.3at/af PSE PoE Ports, PoE Power B
Model 561686EAN 766623561686
33 specifications
- Weight410 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- MAC address table1000 entries
- Power sourceAC/DC
Overview
- Weight
- 410 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- MAC address table
- 1000 entries
- Power source
- AC/DC
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561686
- Part number
- 561686
- EAN / UPC
- 766623561686
- Also known as
- Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power 60 W PSE PoE Port, Three IEEE 802.3at/af PSE PoE Ports, PoE Power B
Specifications
33 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5e |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.2 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |

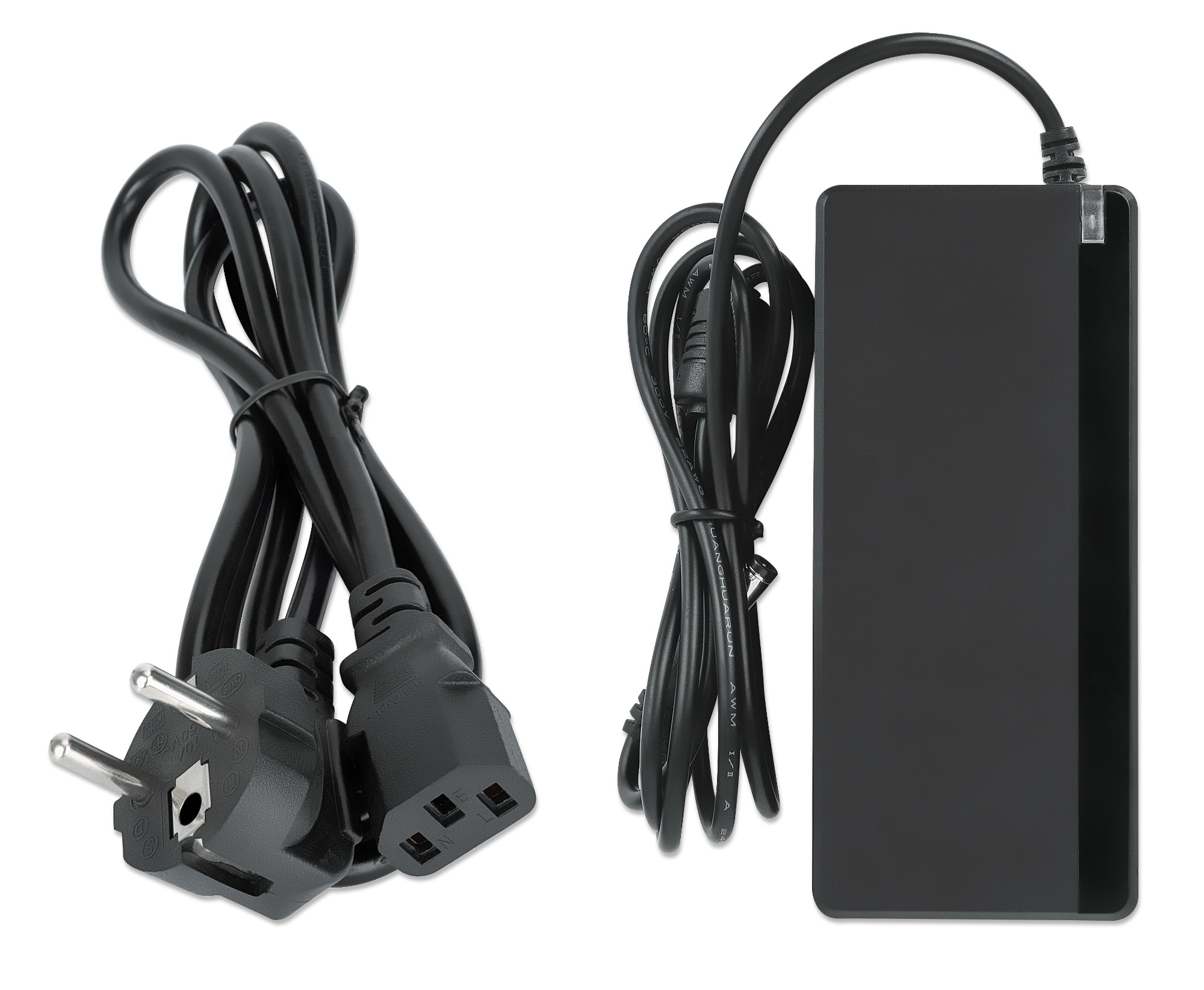

| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 153 mm |
| Height | 29 mm |
| Weight | 410 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
