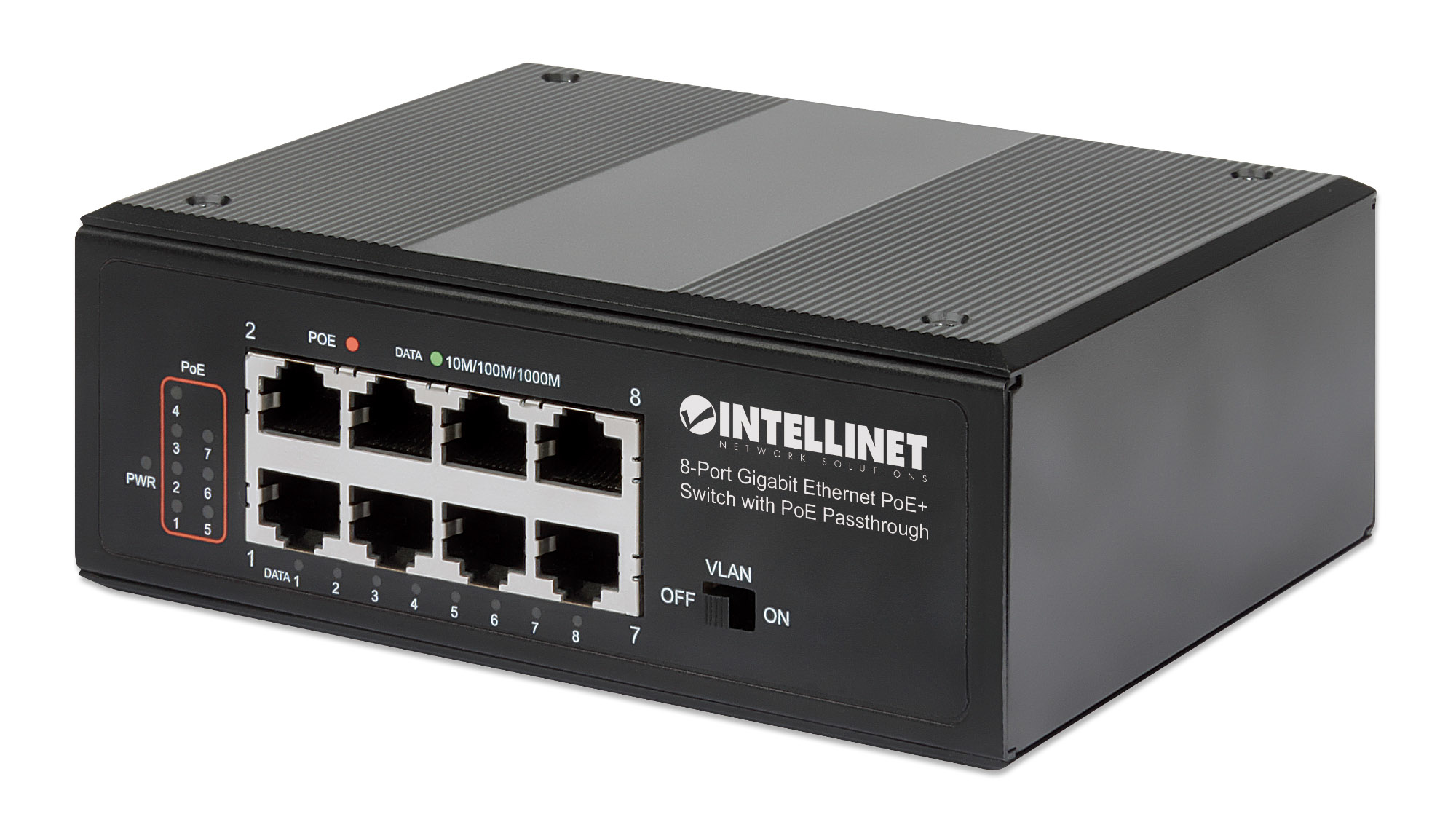

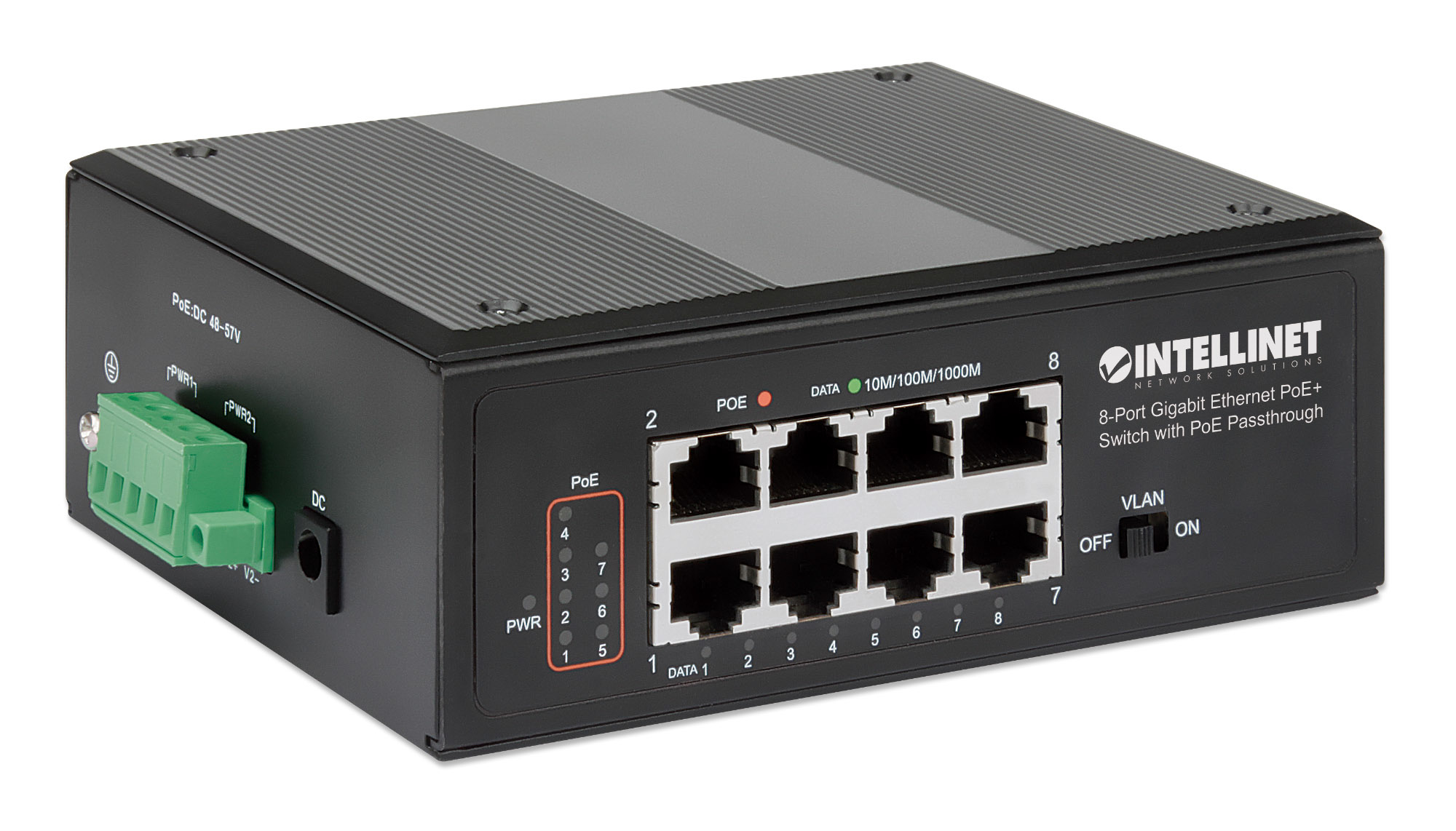

8-Port Gigabit Ethernet PoE+ Industrial Switch with PoE Passthrough, One PD PoE Port with
95 W Power Input, Seven PSE PoE Ports, PoE Power Budget up
Model 561624EAN 766623561624
44 specifications
- Weight673 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
- FanlessYes
Overview
- Weight
- 673 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Fanless
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561624
- Part number
- 561624
- EAN / UPC
- 766623561624
- Also known as
- Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch with PoE Passthrough, One PD PoE Port with 95 W Power Input, Seven PSE PoE Ports, PoE Power Budget up
Specifications
44 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Cable types supported | Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9200 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

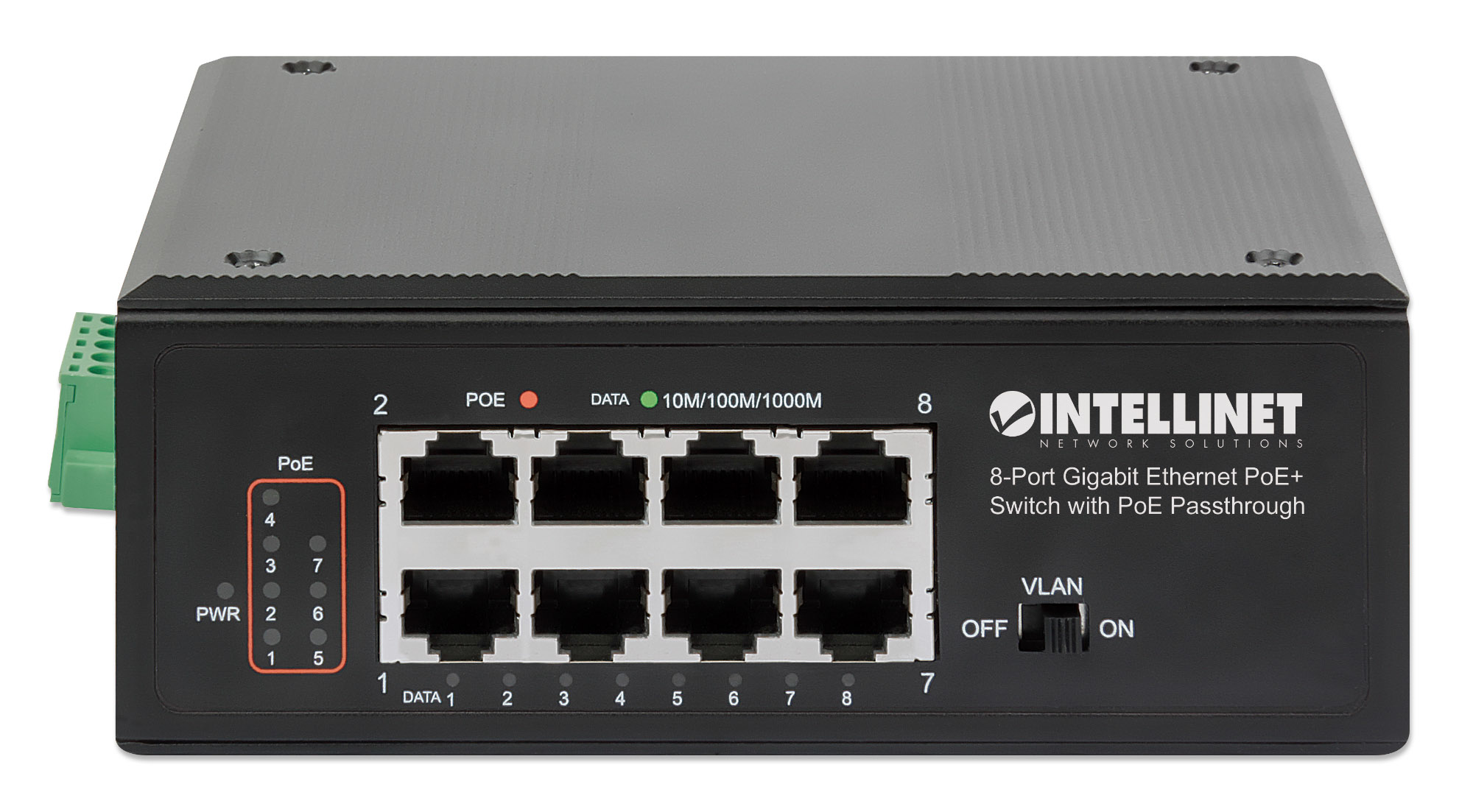

| LED indicators | Activity, Link, PoE, Power |

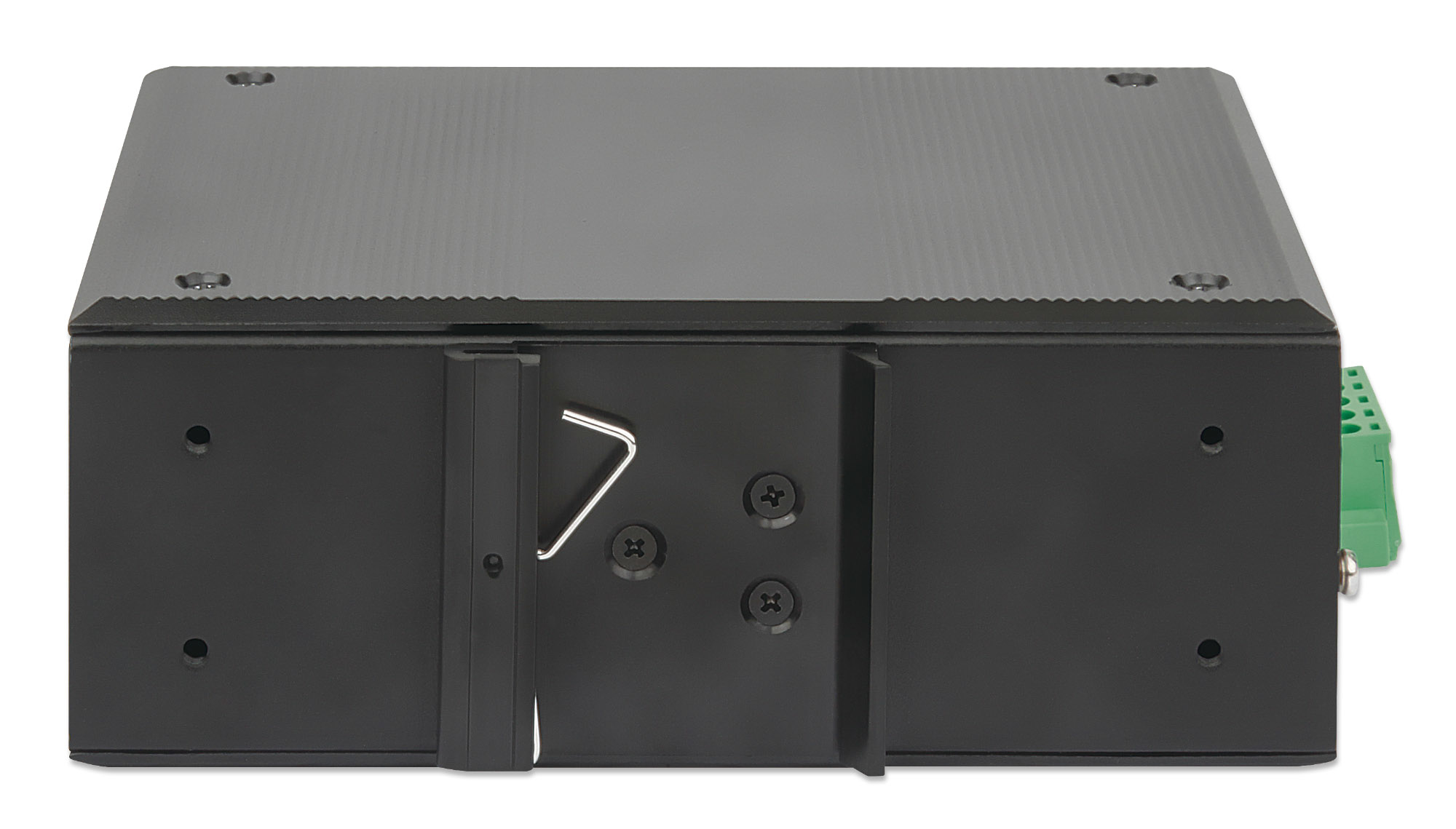

| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 48 - 57 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 75 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |

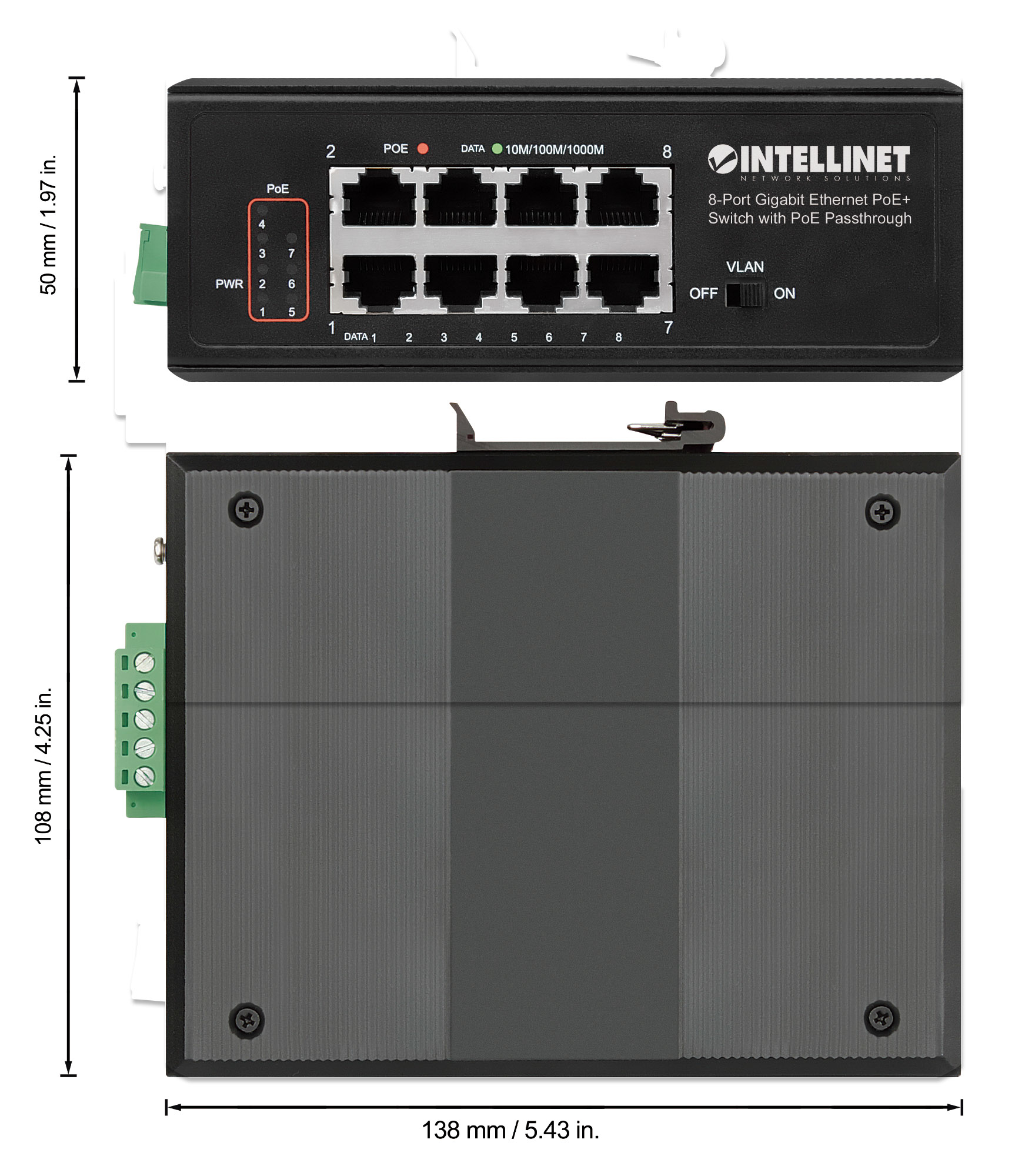

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 108 mm |
| Height | 50 mm |
| Weight | 673 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UL |
| Certification | FCC B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
