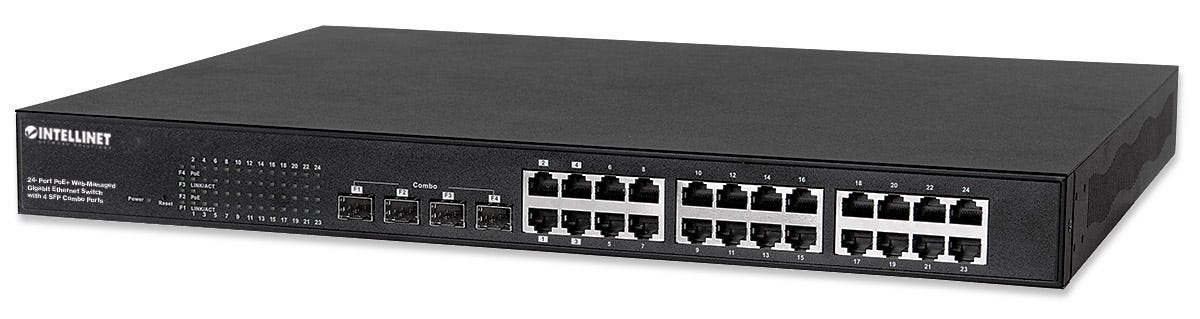

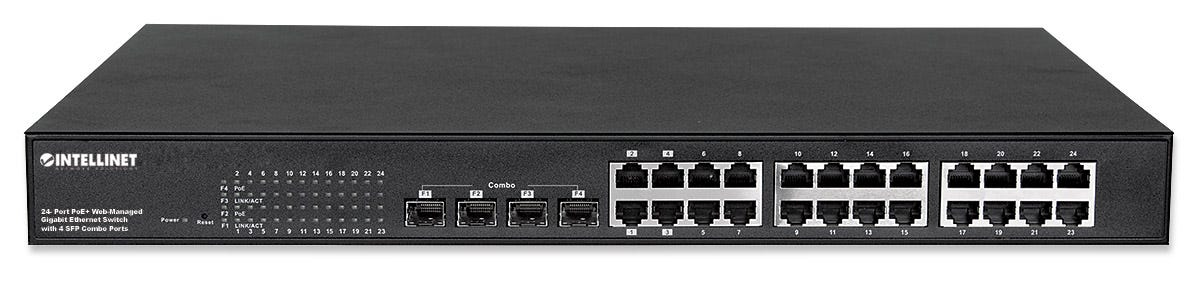

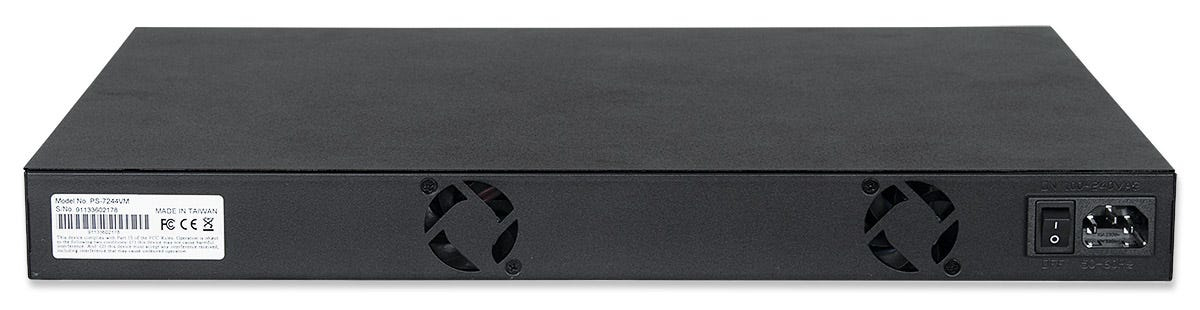

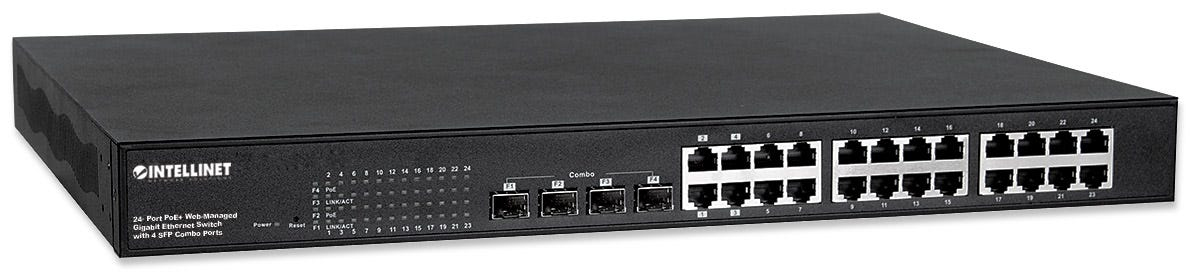

Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant

Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant

430 W, Endspan, 19

Model 561372EAN 766623561372

60 specifications

Weight4.7 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo
MAC address table8000 entries

See all specifications

Overview

Weight: 4.7 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No
MAC address table: 8000 entries

Brand: Intellinet
Category: Network Switch
Model: 561372
Part number: 561372
EAN / UPC: 766623561372
Also known as: Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 430 W, Endspan, 19

Specifications

60 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Control and Provisioning of Wireless Access Points (CAPWAP)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9600
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet buffer memory	0.5 MB

Security

Specification	Value
IGMP snooping	Yes
Security algorithms	SNMP

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Number of fans	2 fan(s)

Power

Specification	Value
AC input voltage	90 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	500 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	300 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	331 mm
Height	44 mm
Weight	4.7 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box

Certificates

Specification	Value
Certification	FCC A, CE

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
