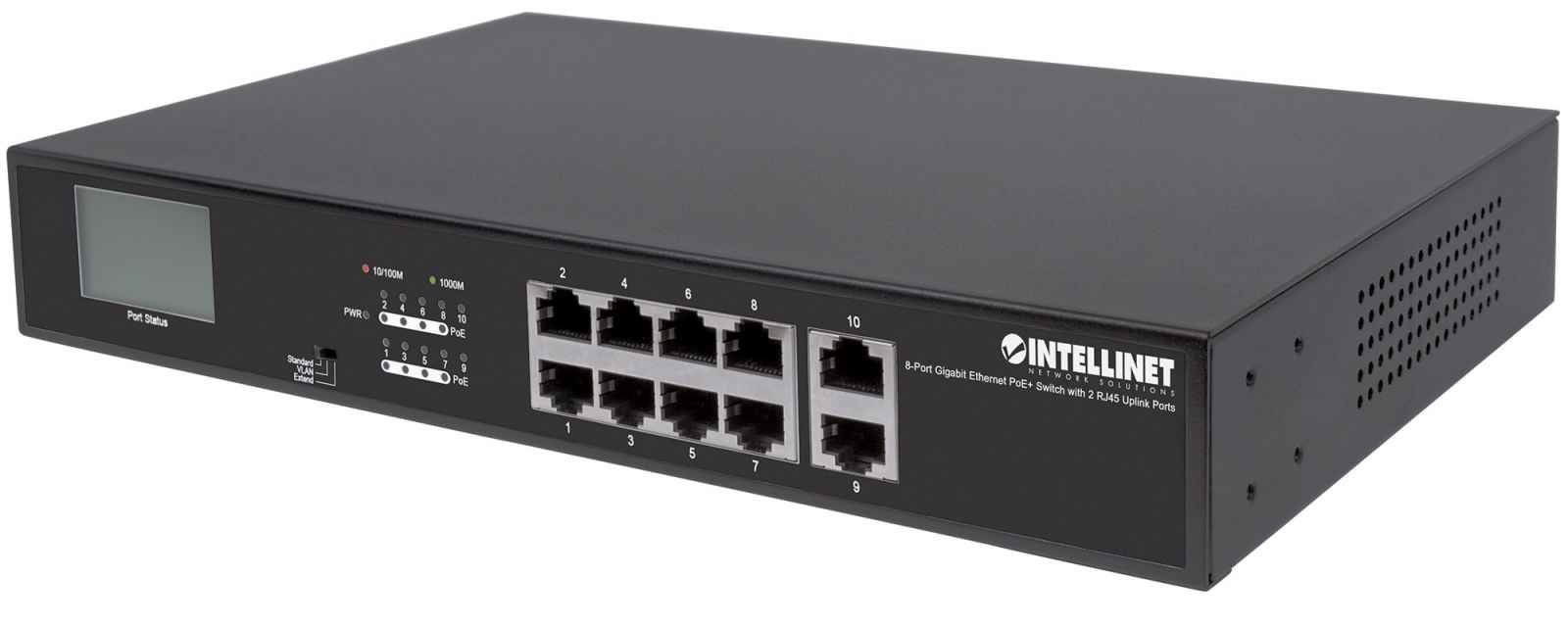

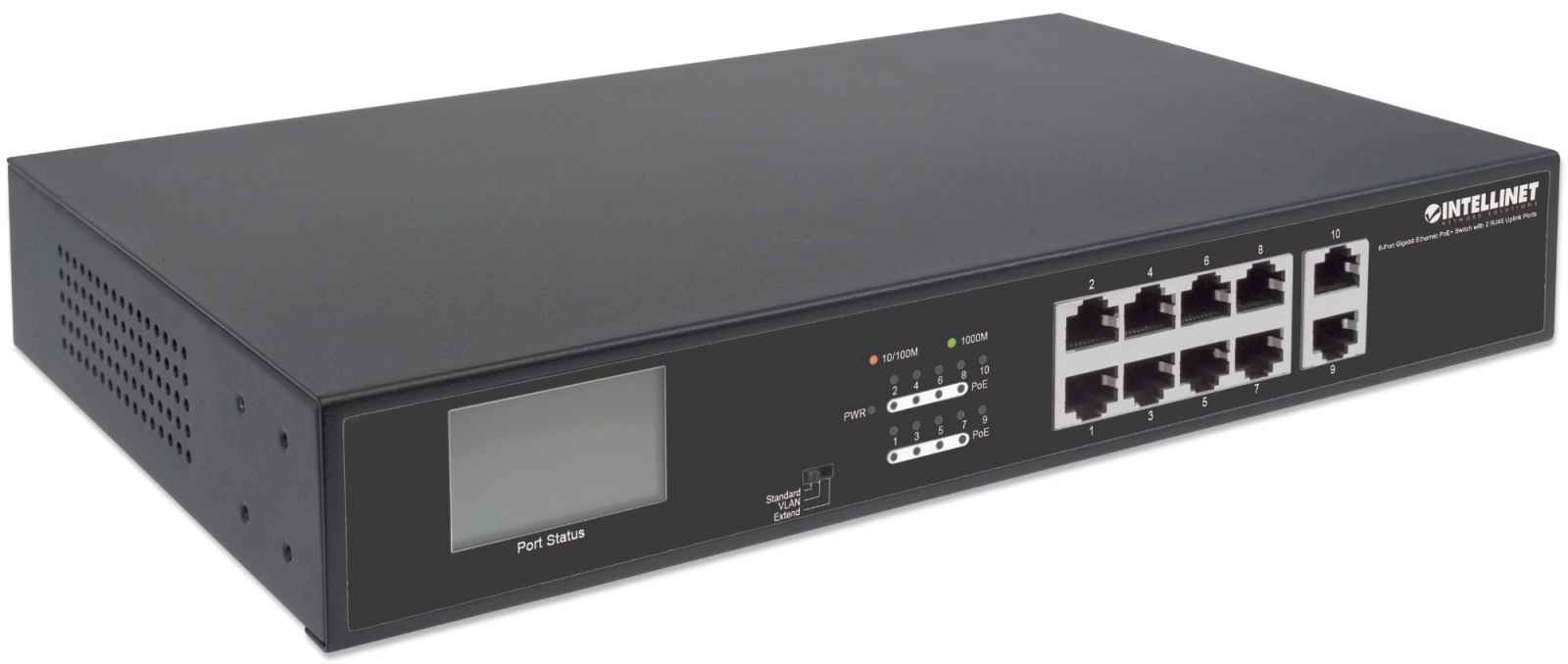

Intellinet 8-Port Gigabit Ethernet PoE+ Switch with 2 RJ45 Gigabit Uplink Ports and LCD Screen, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Comp
Model 561303EAN 766623561303
41 specifications
- Weight2.5 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table8192 entries
- Rack mountingYes
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table
- 8192 entries
- Rack mounting
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561303
- Part number
- 561303
- EAN / UPC
- 766623561303
- Also known as
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch with 2 RJ45 Gigabit Uplink Ports and LCD Screen, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Comp
Specifications
41 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |

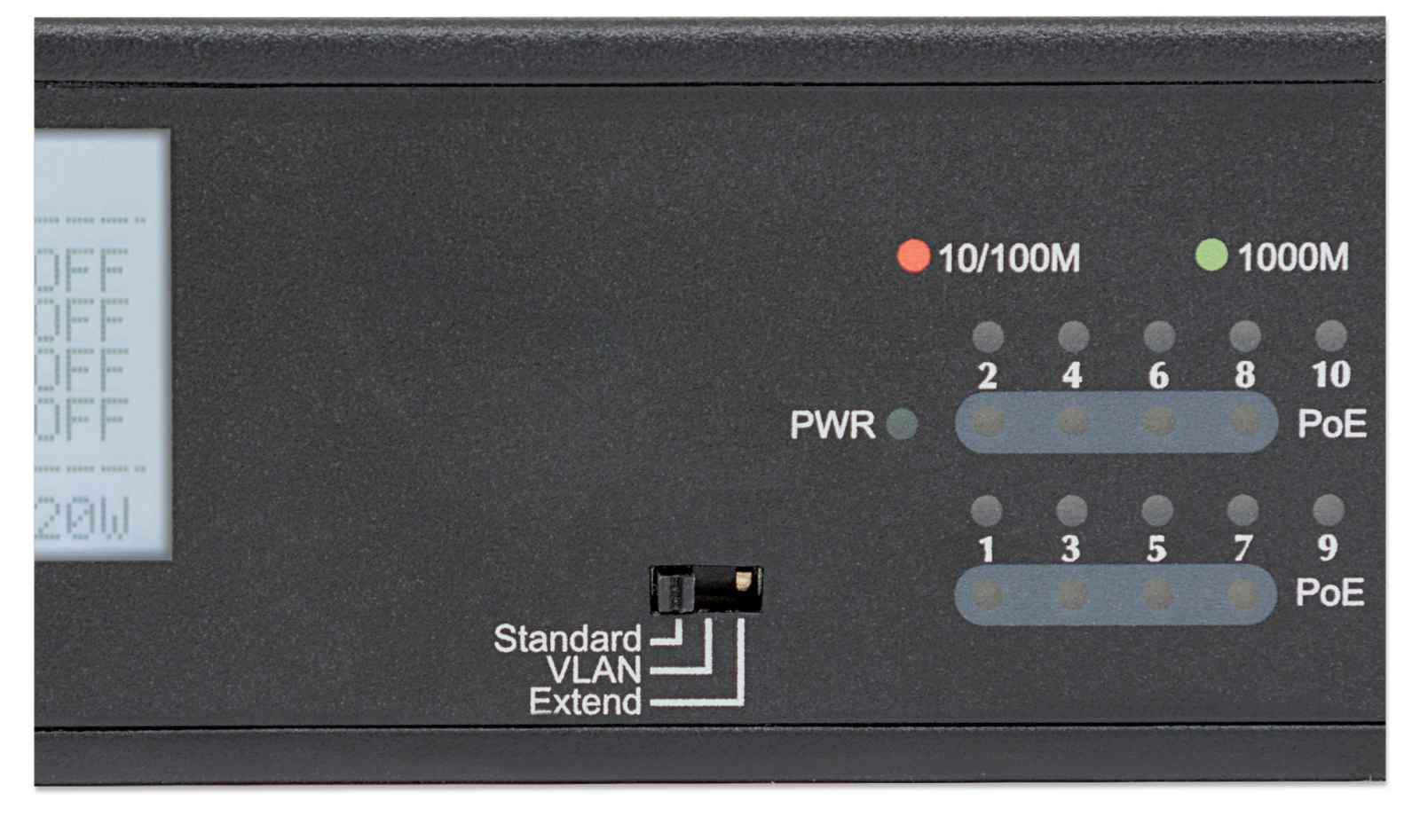

| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
Power
| Specification | Value |
|---|---|

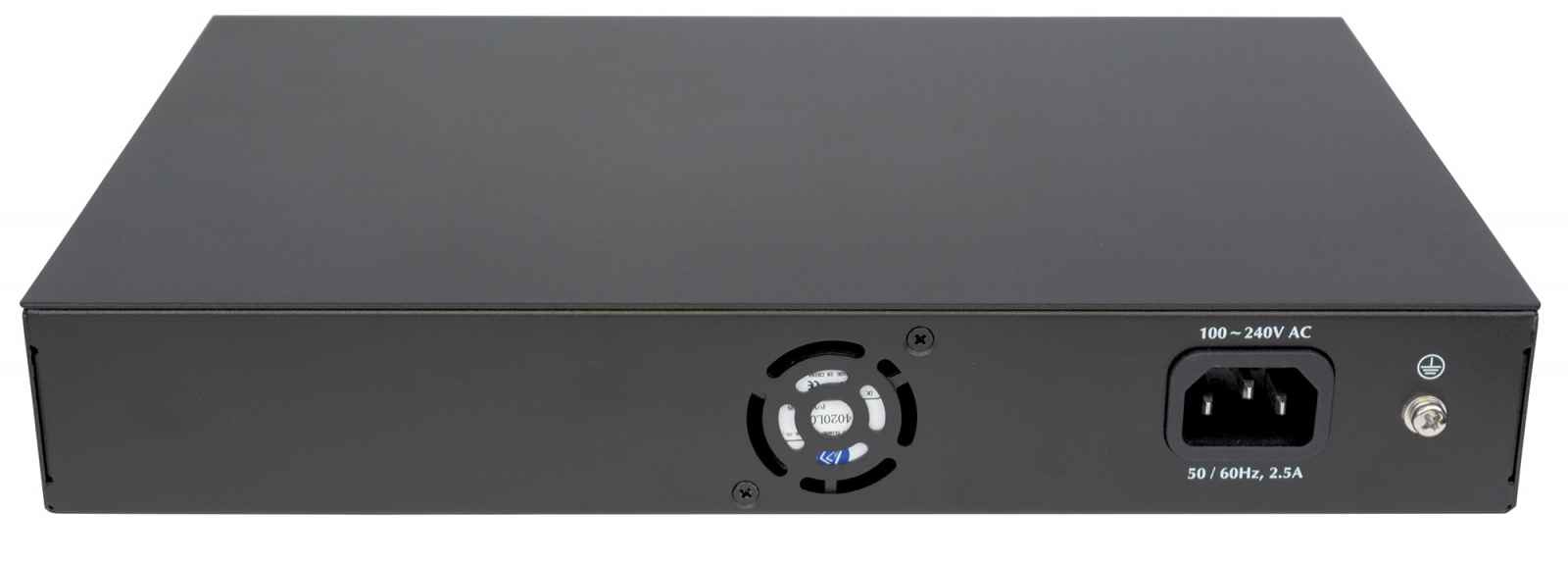

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 140 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 280 mm |
| Height | 45 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |

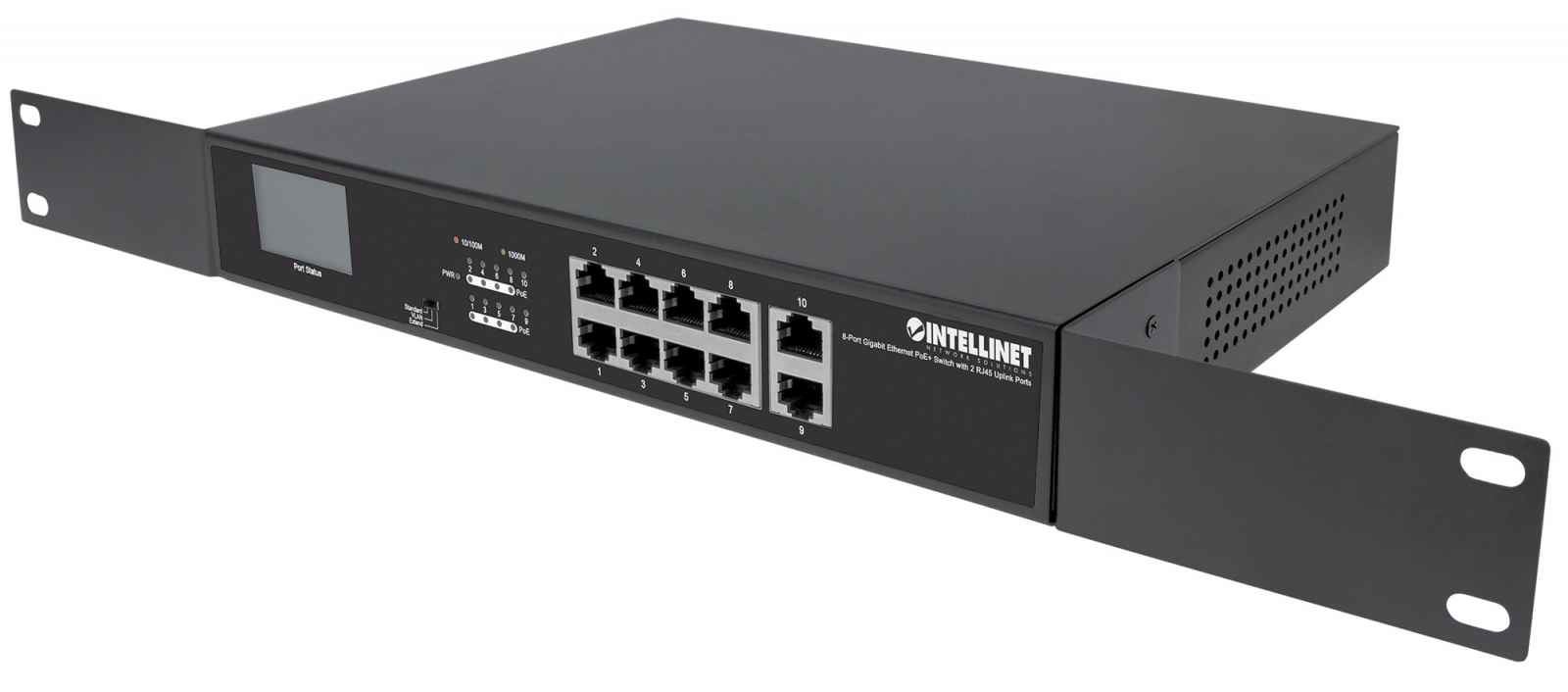

| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS |
