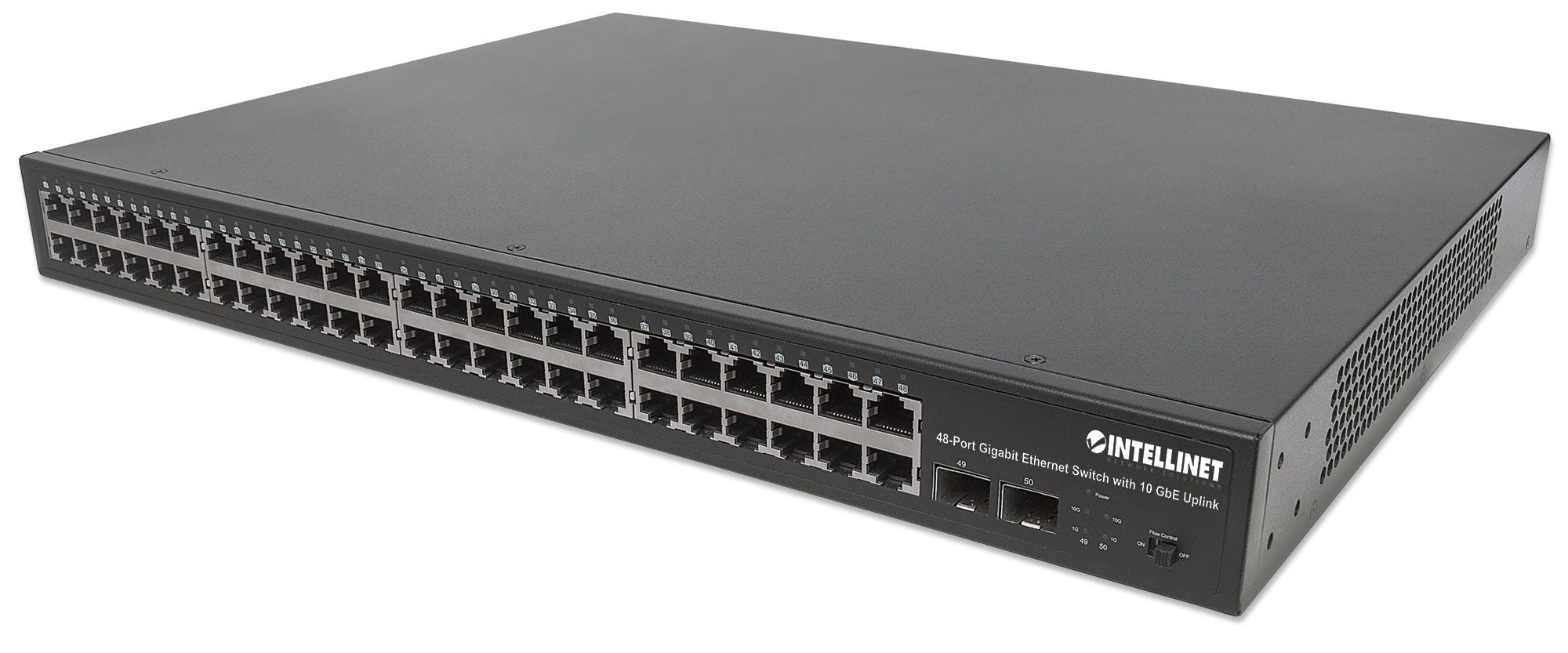

Intellinet 48-Port Gigabit Ethernet Switch with 10 GbE Uplink
48 x 10/100/1000 Mbps RJ45 Ports & 2 x 10 GbE SFP+ open slots, IEEE 802.3az (Energy Efficient Eth
Model 561297EAN 766623561297
40 specifications
- Type1U
- Weight3 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
- MAC address table16000 entries
Overview
- Type
- 1U
- Weight
- 3 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561297
- Part number
- 561297
- EAN / UPC
- 766623561297
- Also known as
- Intellinet 48-Port Gigabit Ethernet Switch with 10 GbE Uplink, 48 x 10/100/1000 Mbps RJ45 Ports & 2 x 10 GbE SFP+ open slots, IEEE 802.3az (Energy Efficient Eth
Specifications
40 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 136 Gbit/s |
| Forwarding rate | 101 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Power fail, Speed |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 34.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE |
