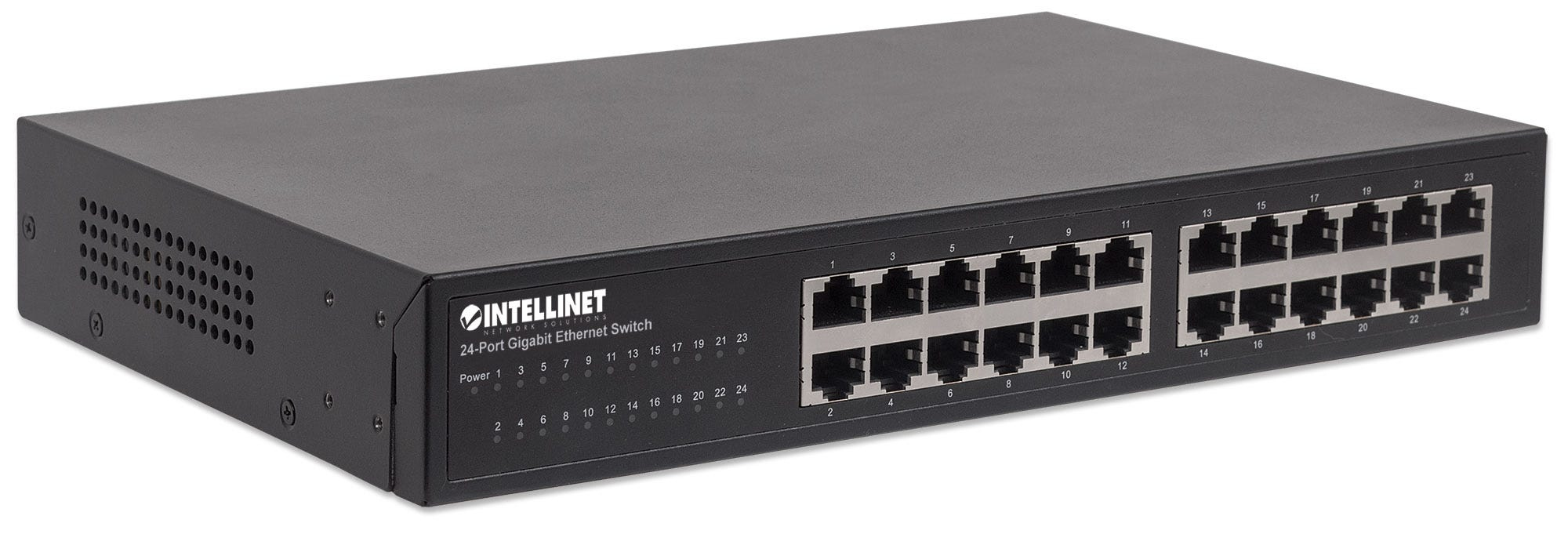

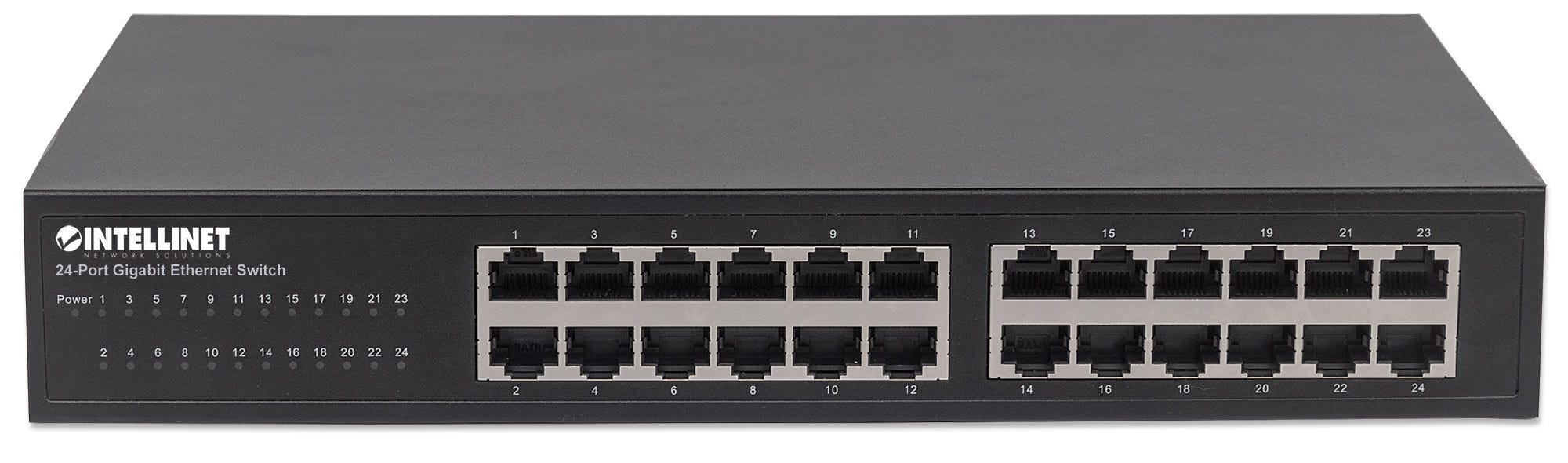

24-Port Gigabit Ethernet Switch
24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal
Model 561273EAN 766623561273
47 specifications
- Weight2.6 kg
- ColourBlack
- Control and Provisioning of Wireless Access Points (CAPWAP)Yes
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table16384 entries
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Control and Provisioning of Wireless Access Points (CAPWAP)
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 16384 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561273
- Part numbers
- 561273, 561273-UK
- EAN / UPC
- 766623561273, 766623996075
- Also known as
- Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Control and Provisioning of Wireless Access Points (CAPWAP) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

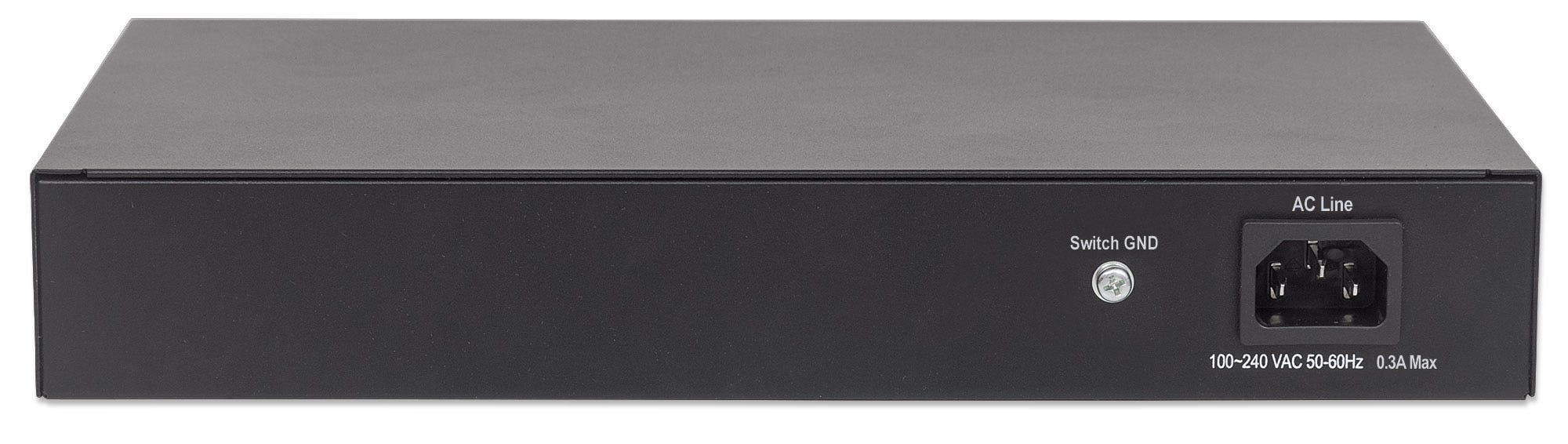

| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.512 MB |
Design
| Specification | Value |
|---|---|

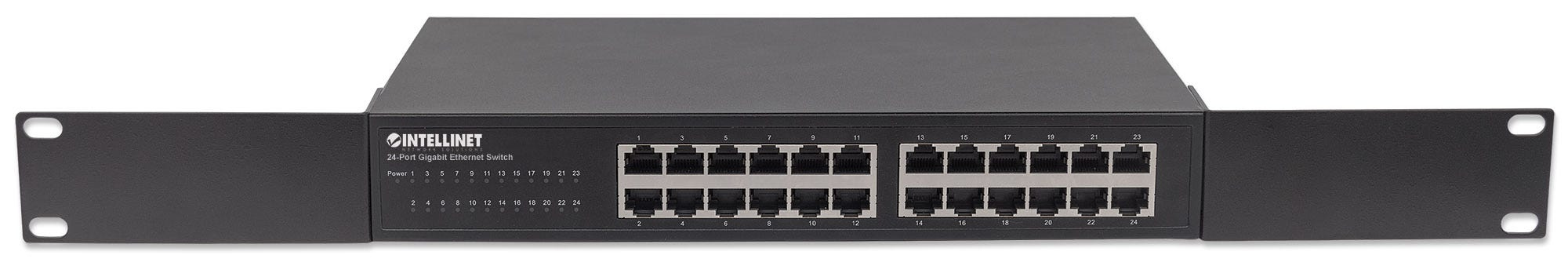

| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 16 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC A, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
