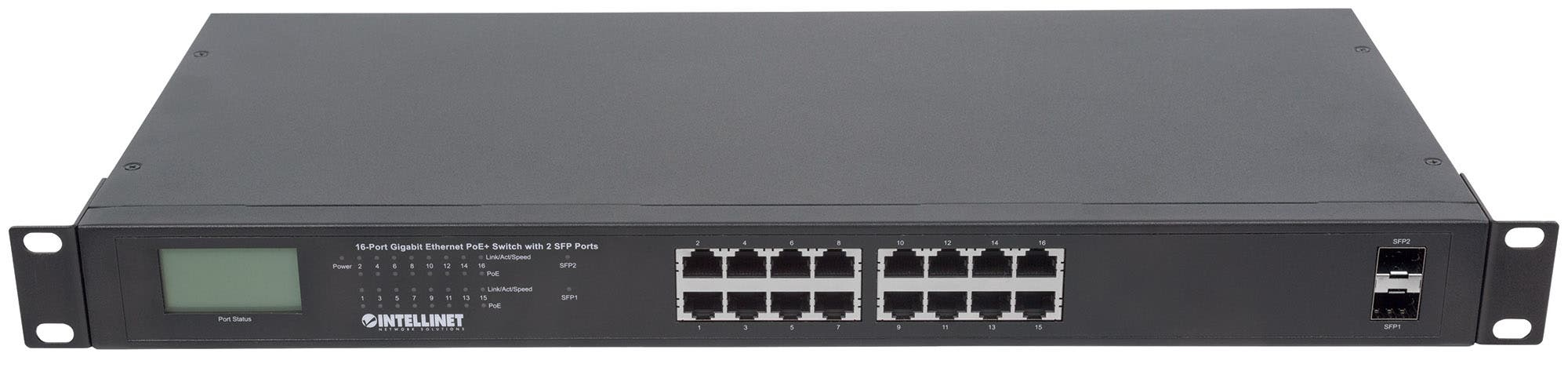

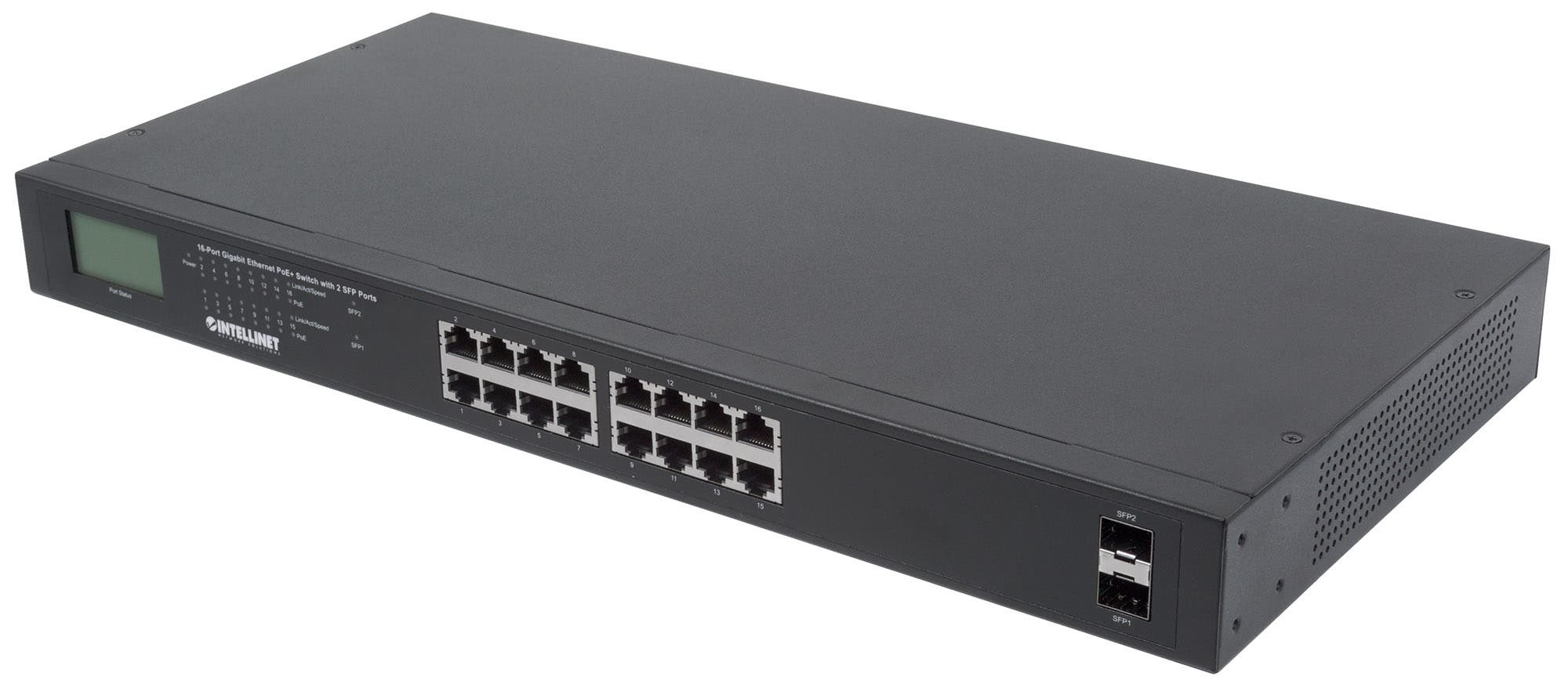

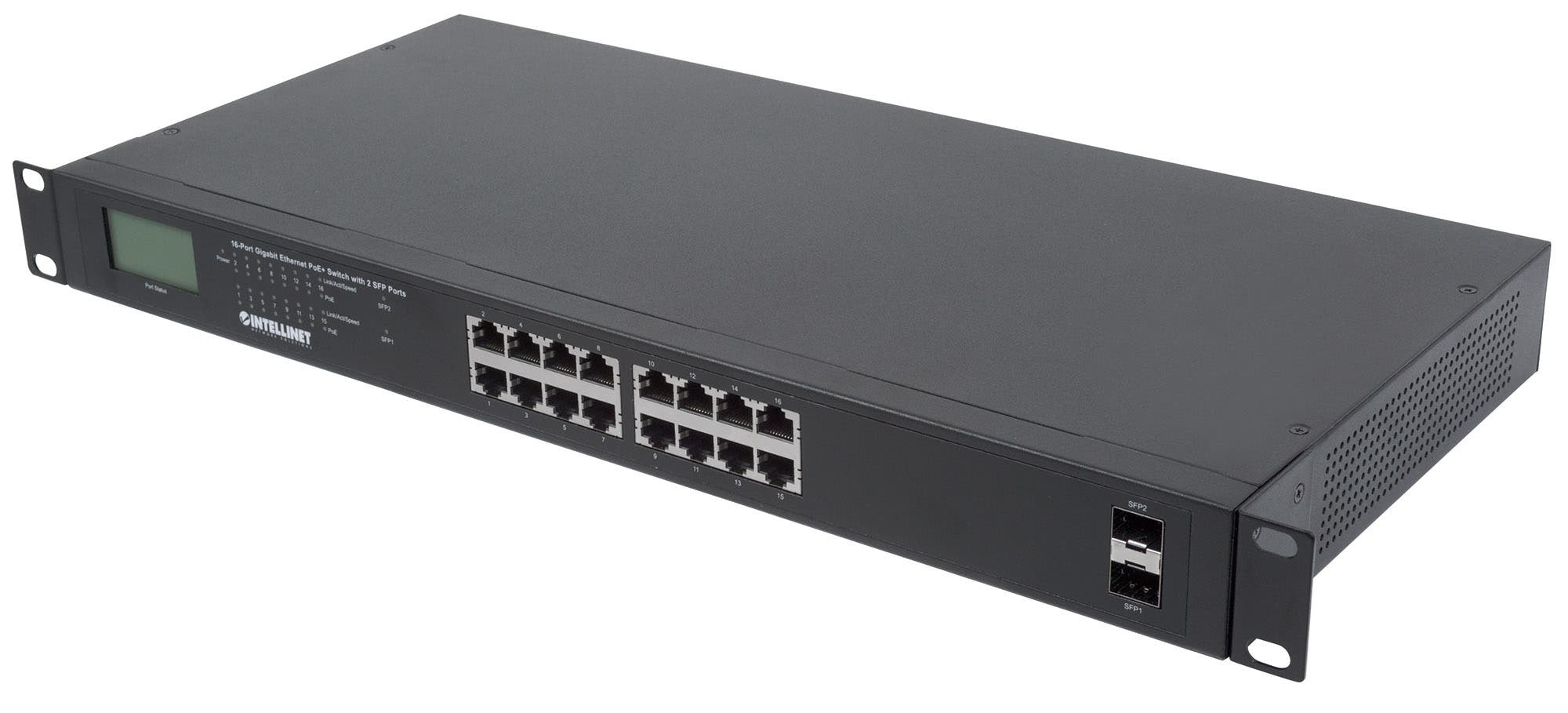

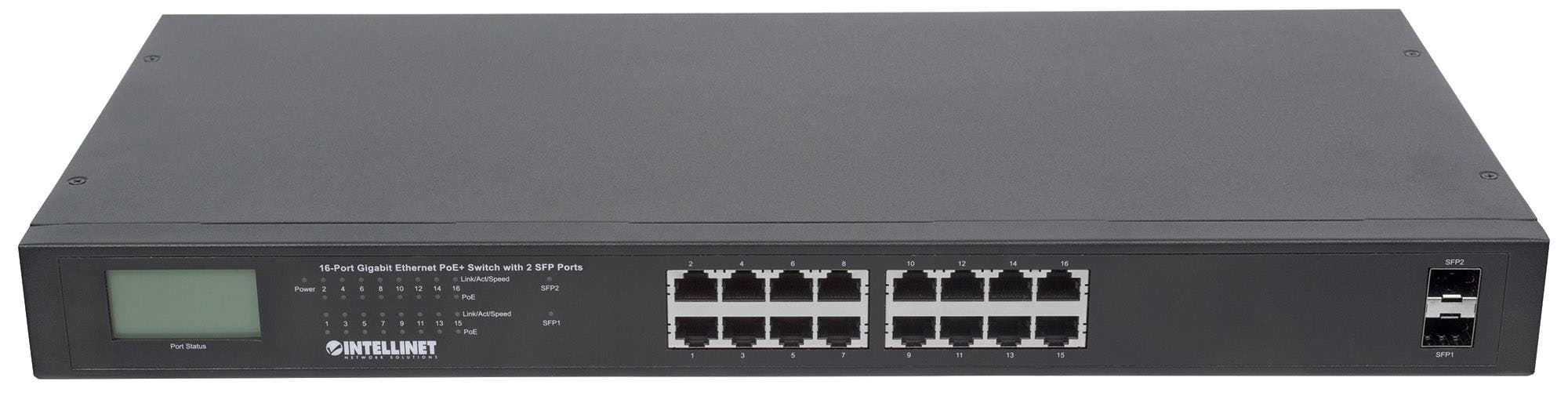

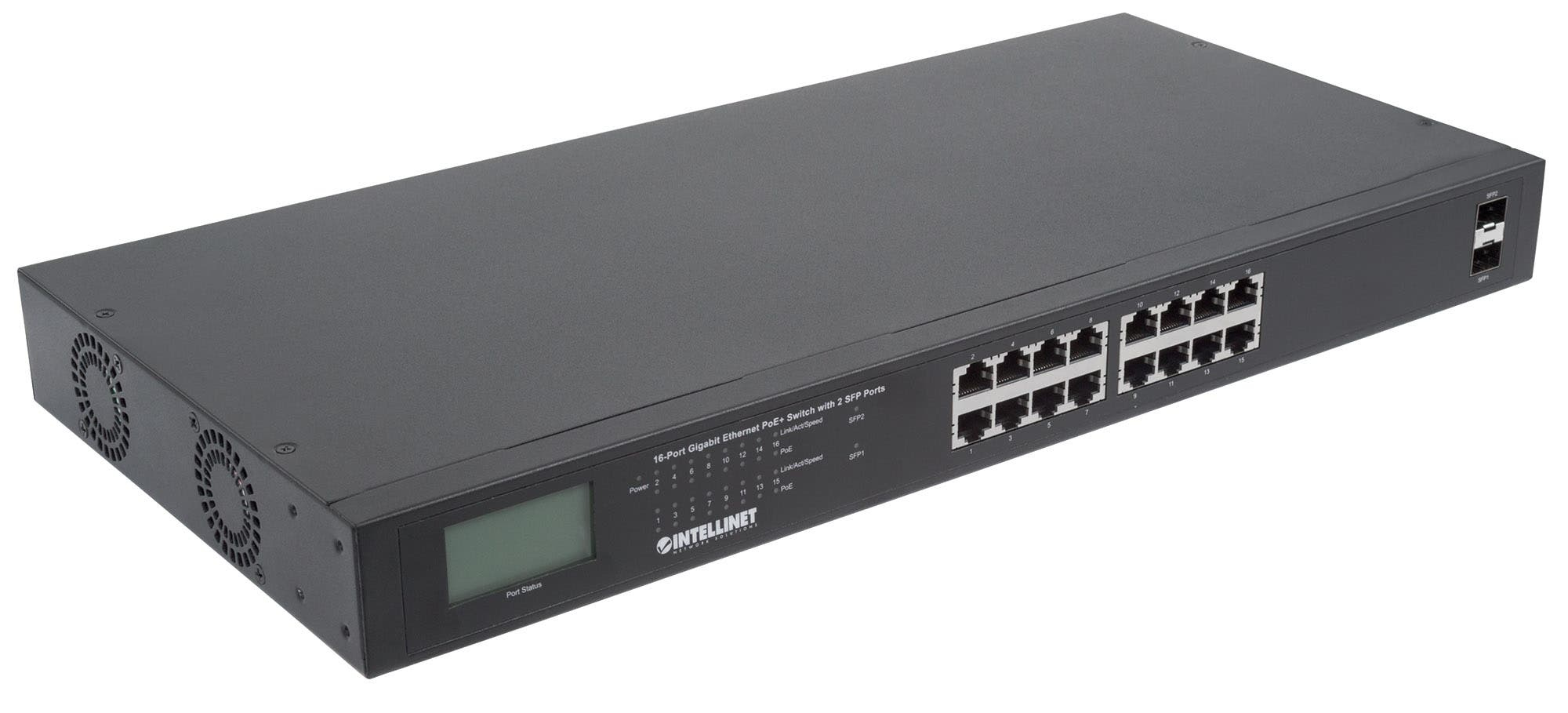

16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
370 W, Endspan, 19" Rac
Model 561259-UKEAN 766623995757
39 specifications
- Noise21.3 dB
- Weight4 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology100BASE-TX, 1000BASE-T
- MAC address table8192 entries
Overview
- Noise
- 21.3 dB
- Weight
- 4 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 100BASE-TX, 1000BASE-T
- MAC address table
- 8192 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561259-UK
- Part number
- 561259-UK
- EAN / UPC
- 766623995757
- Also known as
- Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rac
Specifications
39 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 36 Gbit/s |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 21.3 dB |
| Mean time between failures (MTBF) | 144000 h |
Power
| Specification | Value |
|---|---|

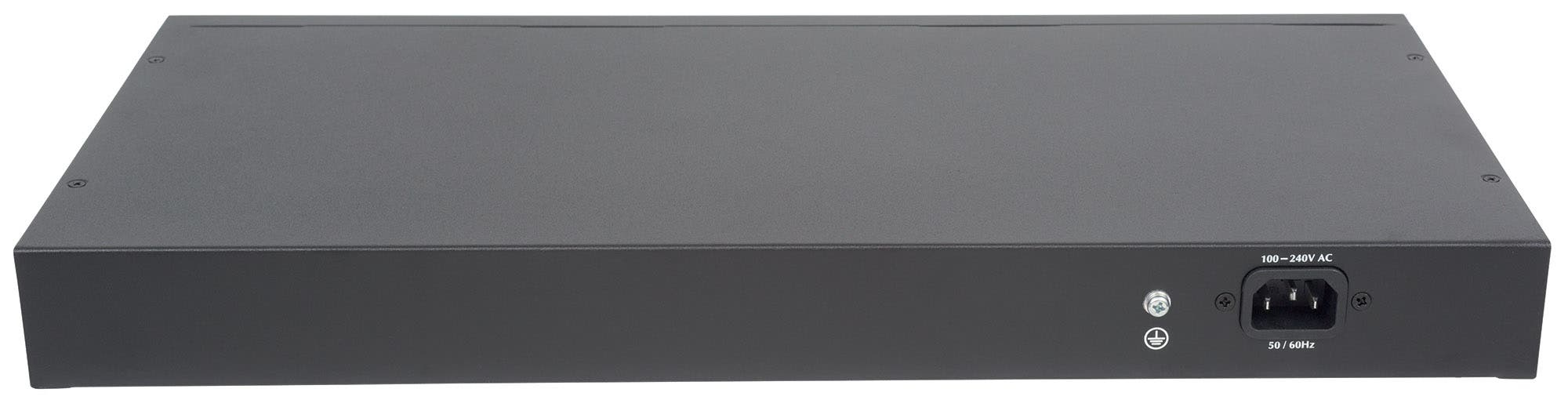

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 420 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441.1 mm |
| Depth | 204.3 mm |
| Height | 44 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS |
