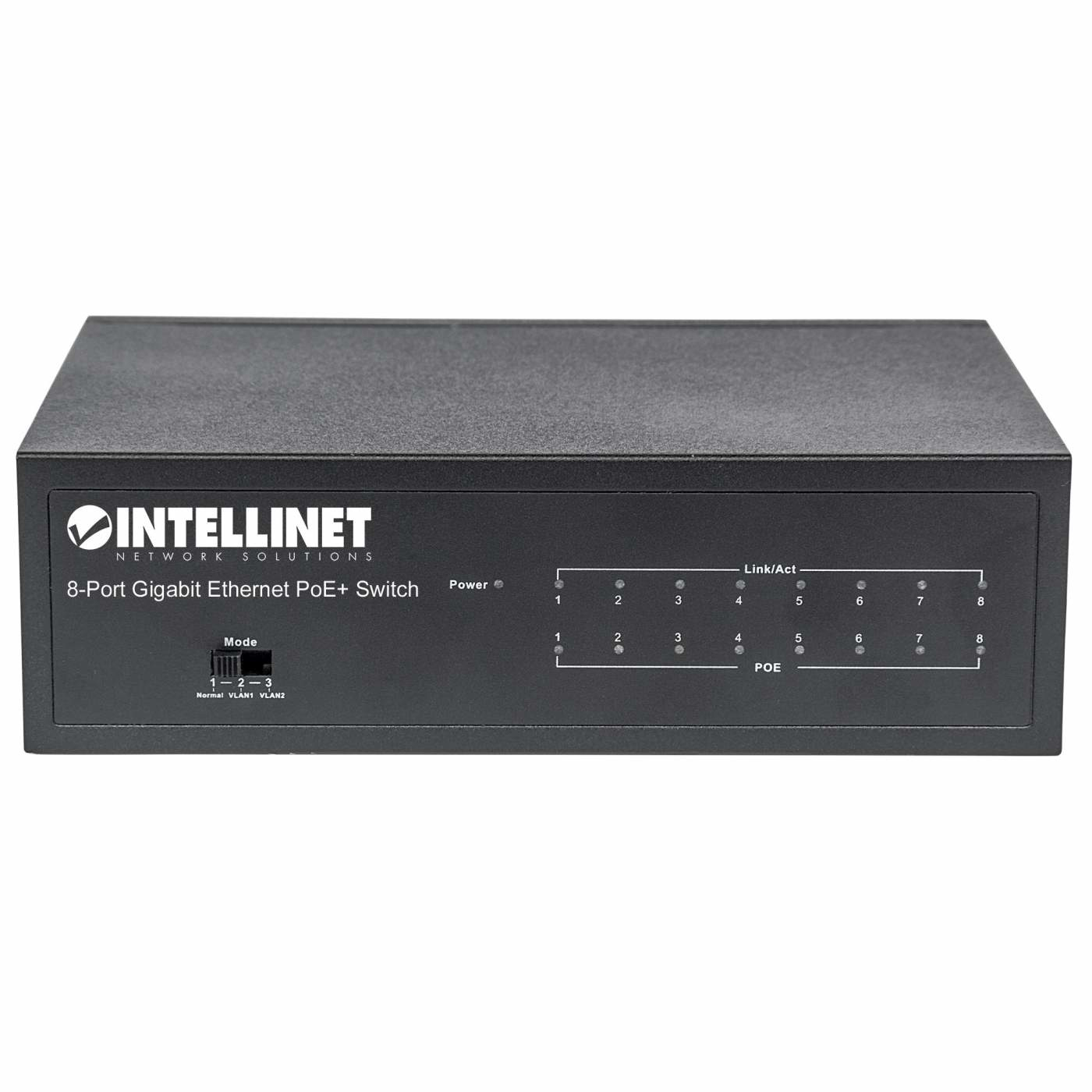

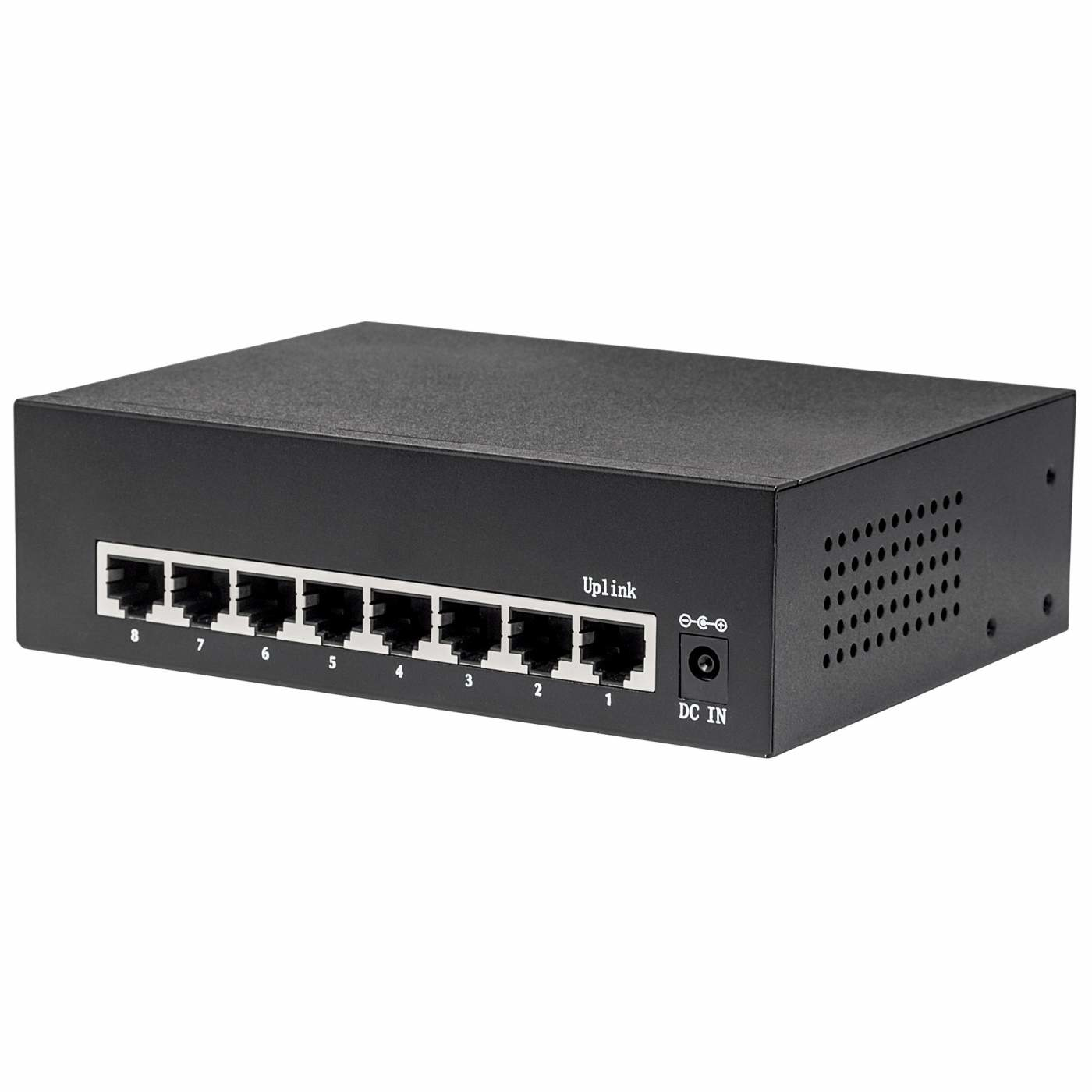

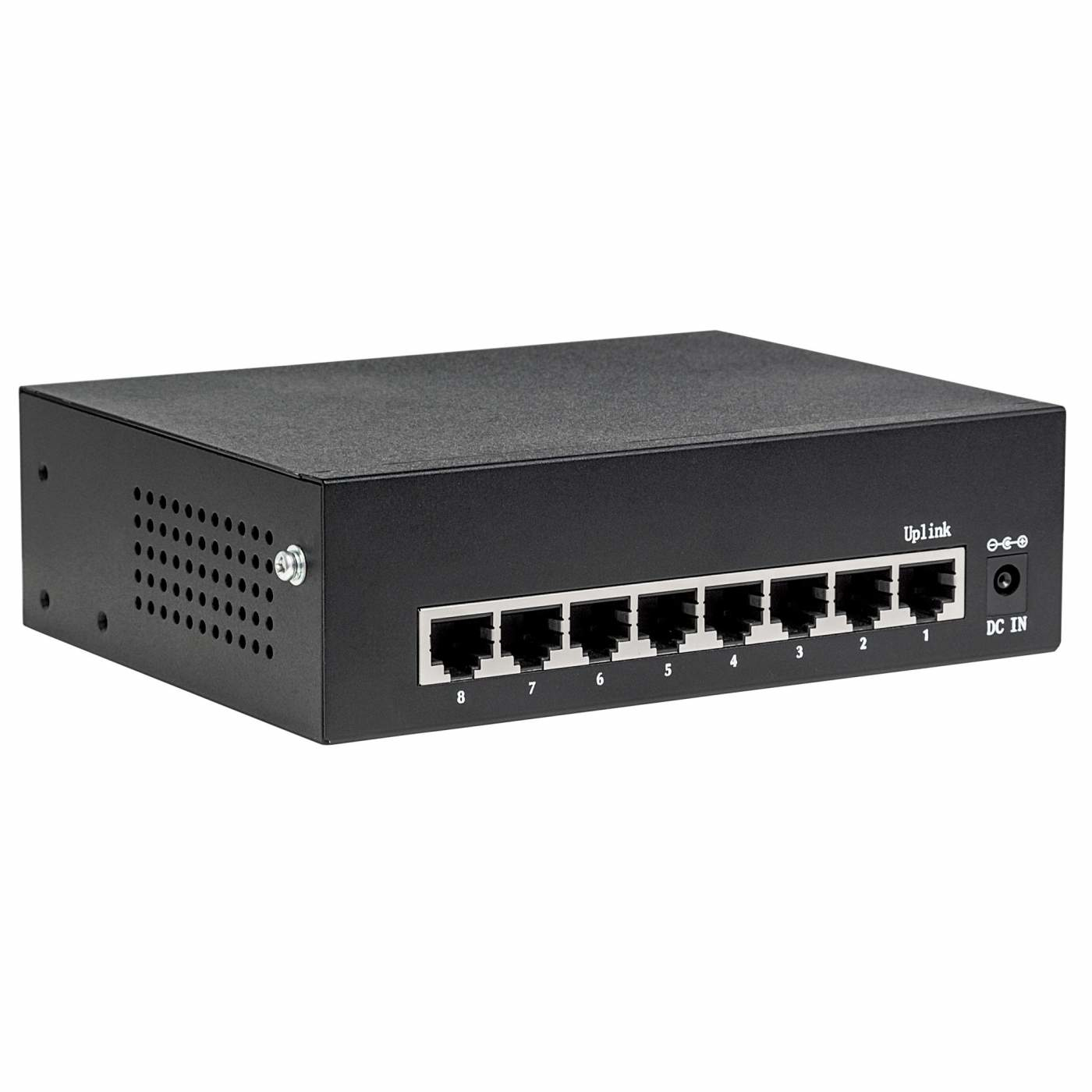

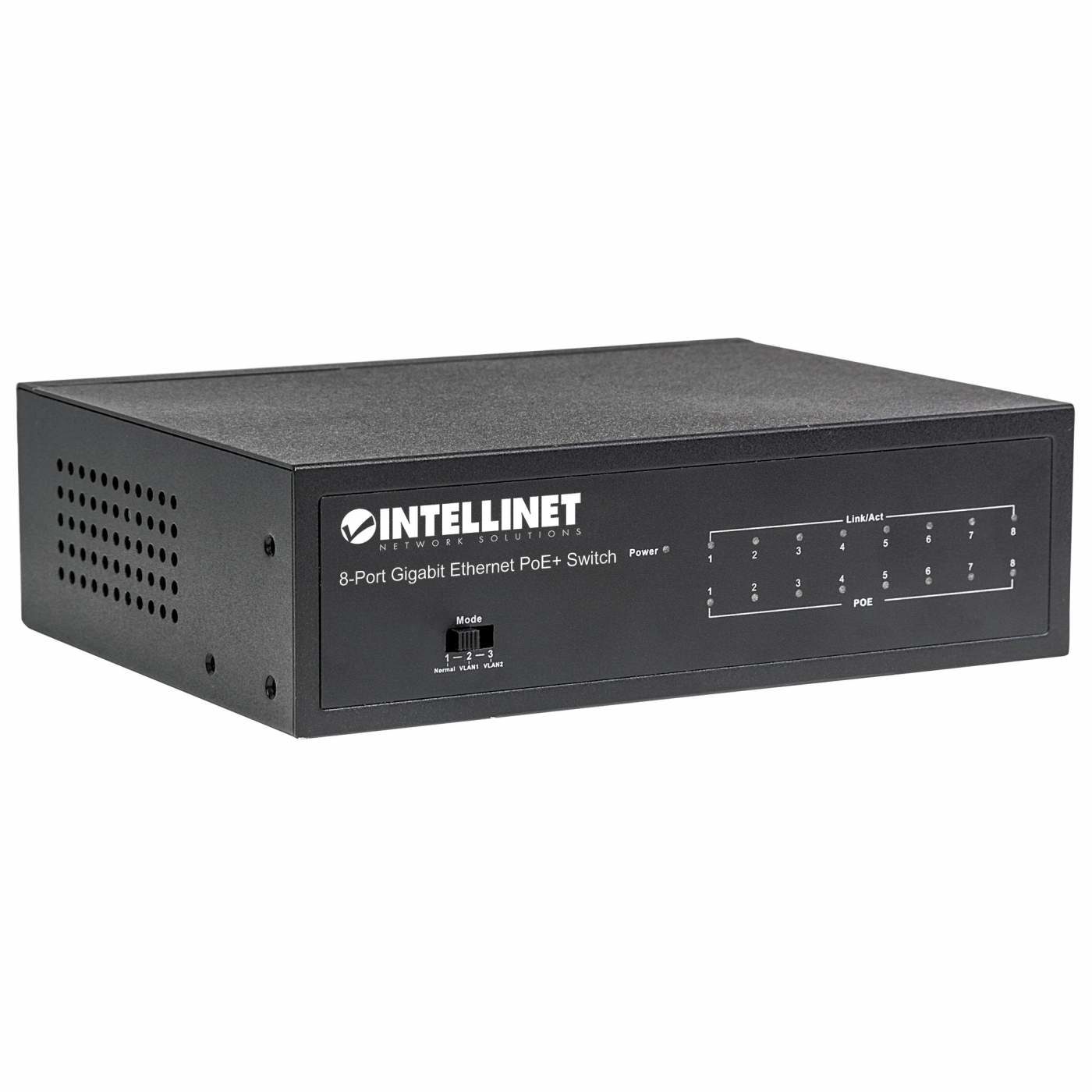

Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
60 W, Desktop, Box
Model 561204EAN 766623561204
48 specifications
- Weight930 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4096 entries
Overview
- Weight
- 930 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4096 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561204
- Part number
- 561204
- EAN / UPC
- 766623561204, 7666235612048
- Also known as
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop, Box
Specifications
48 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Control and Provisioning of Wireless Access Points (CAPWAP) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

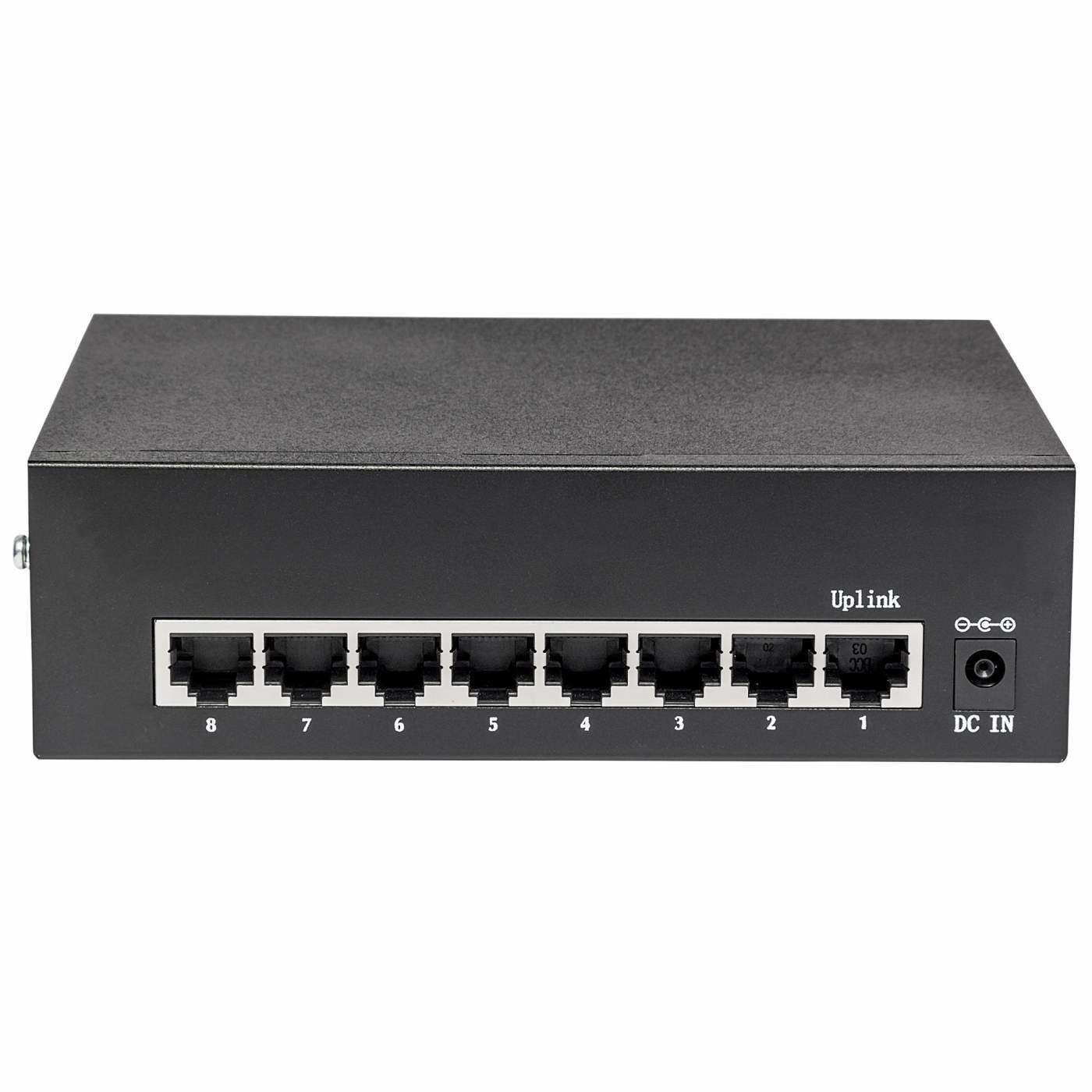

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 1.5 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Power
| Specification | Value |
|---|---|
| Power source | AC |

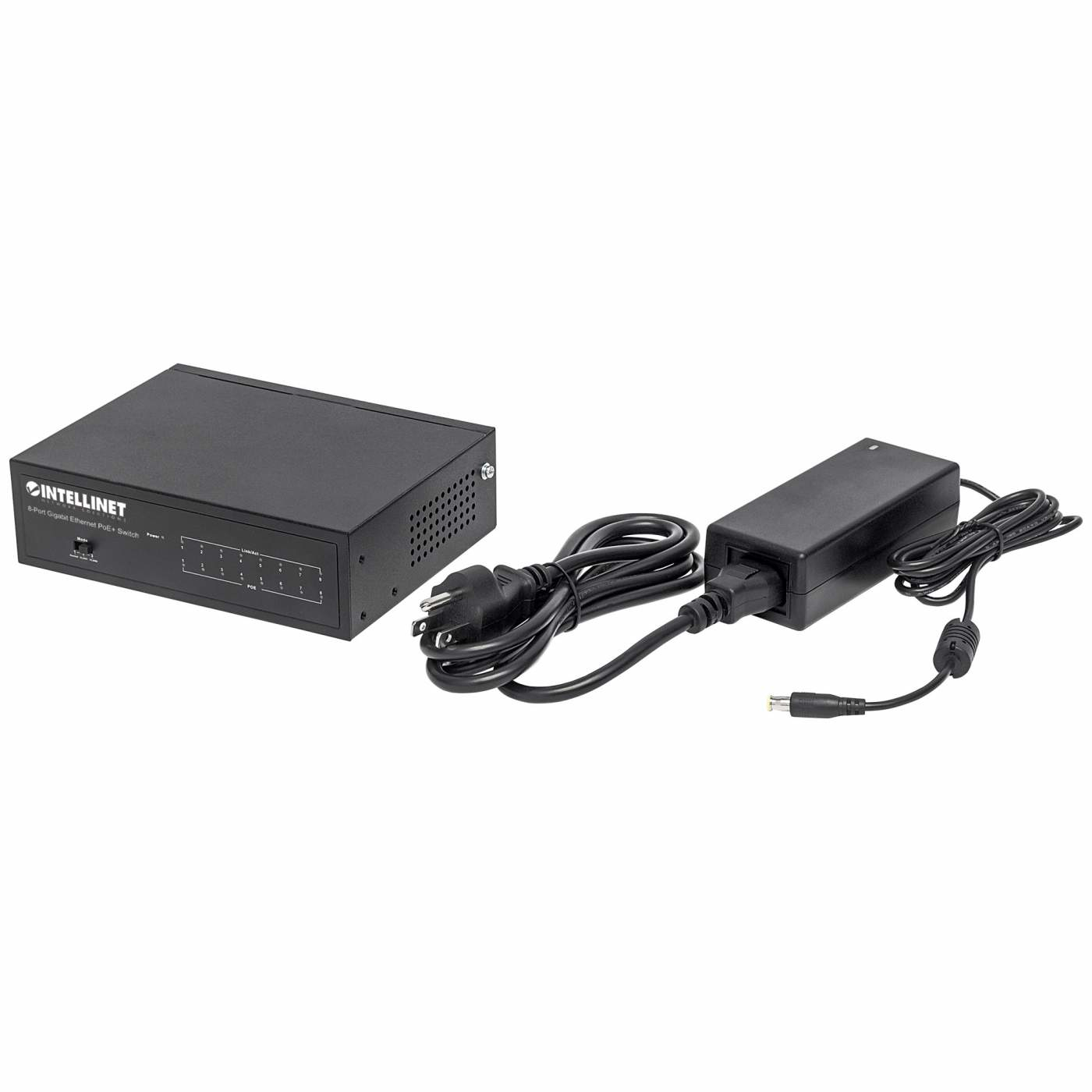

| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 67.3 W |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 118 mm |
| Height | 46 mm |
| Weight | 930 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
No reviews yet
Be the first to tell others how Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
All network switch comparisons- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsIntellinet 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) CompliantCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsIntellinet 5-Port Gigabit Ethernet PoE+ Switch, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) CompliantCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsIntellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) CompliantCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsIntellinet 8-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) CompliantCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsTP-Link T2600G-28TS network switch Managed L2 Gigabit Ethernet (10/100/1000) BlackCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsLenovo ThinkSystem NE1072TCompare specs
- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsLenovo NE1032T Managed L2/L3Compare specs

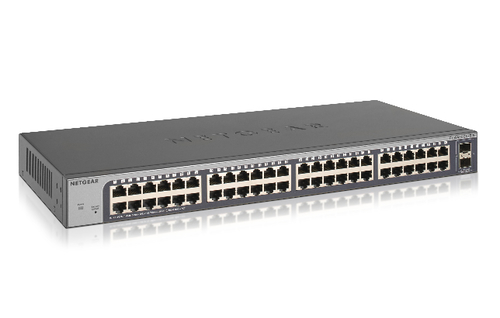

- Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant vsNETGEAR GS750E Managed L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
