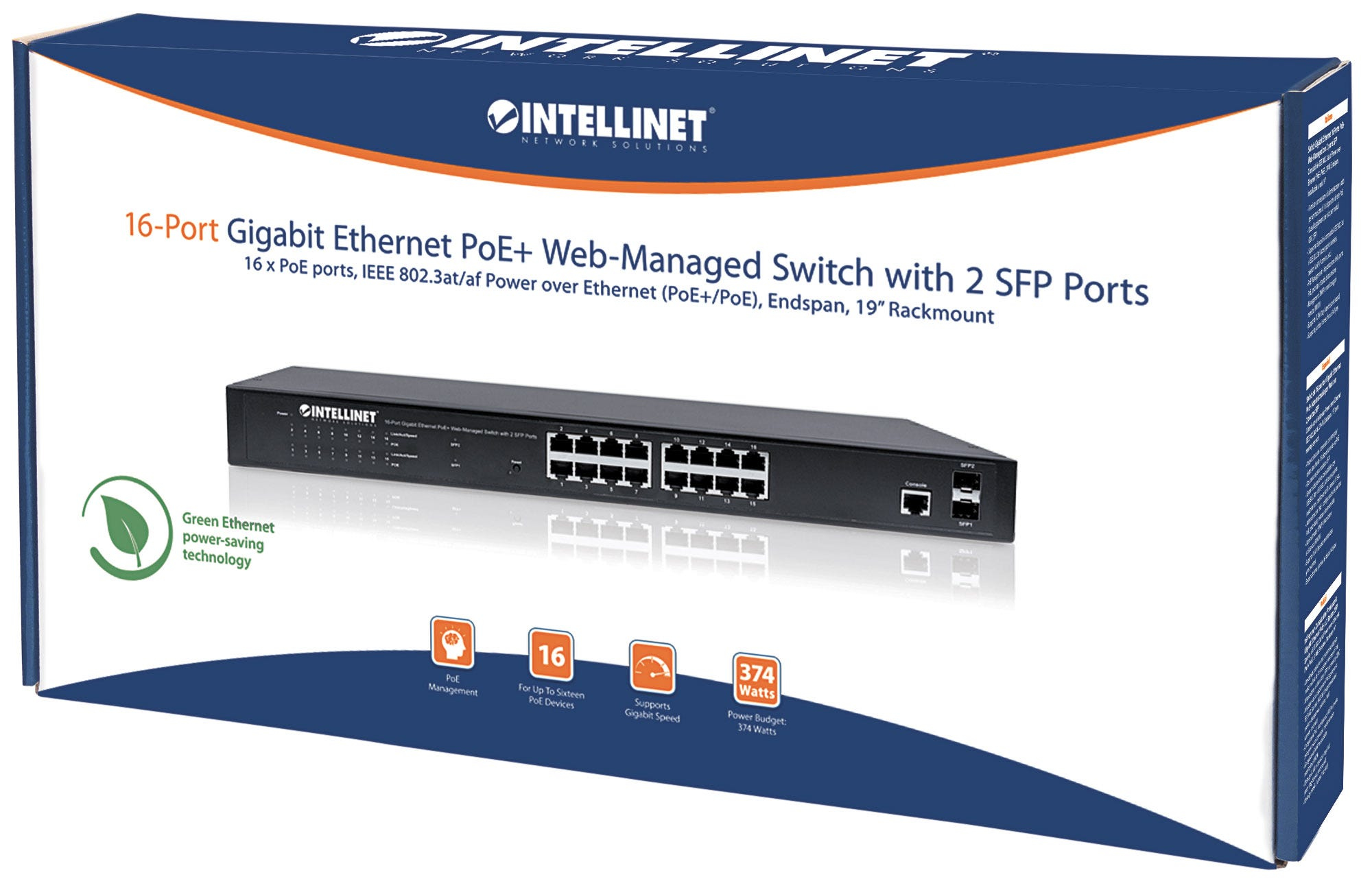

16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
374 W, Endspan, 19" Rack
Model 561198EAN 766623561198
65 specifications
- Noise45 dB
- Type1U
- Weight2.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Noise
- 45 dB
- Type
- 1U
- Weight
- 2.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561198
- Part number
- 561198
- EAN / UPC
- 766623561198
- Also known as
- Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Endspan, 19" Rack
Specifications
65 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| ICMP attack prevention | Yes |
| Security algorithms | SNMP, SNMPv3, SSH-2 |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Noise level | 45 dB |
| Telnet | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 410 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 374 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
