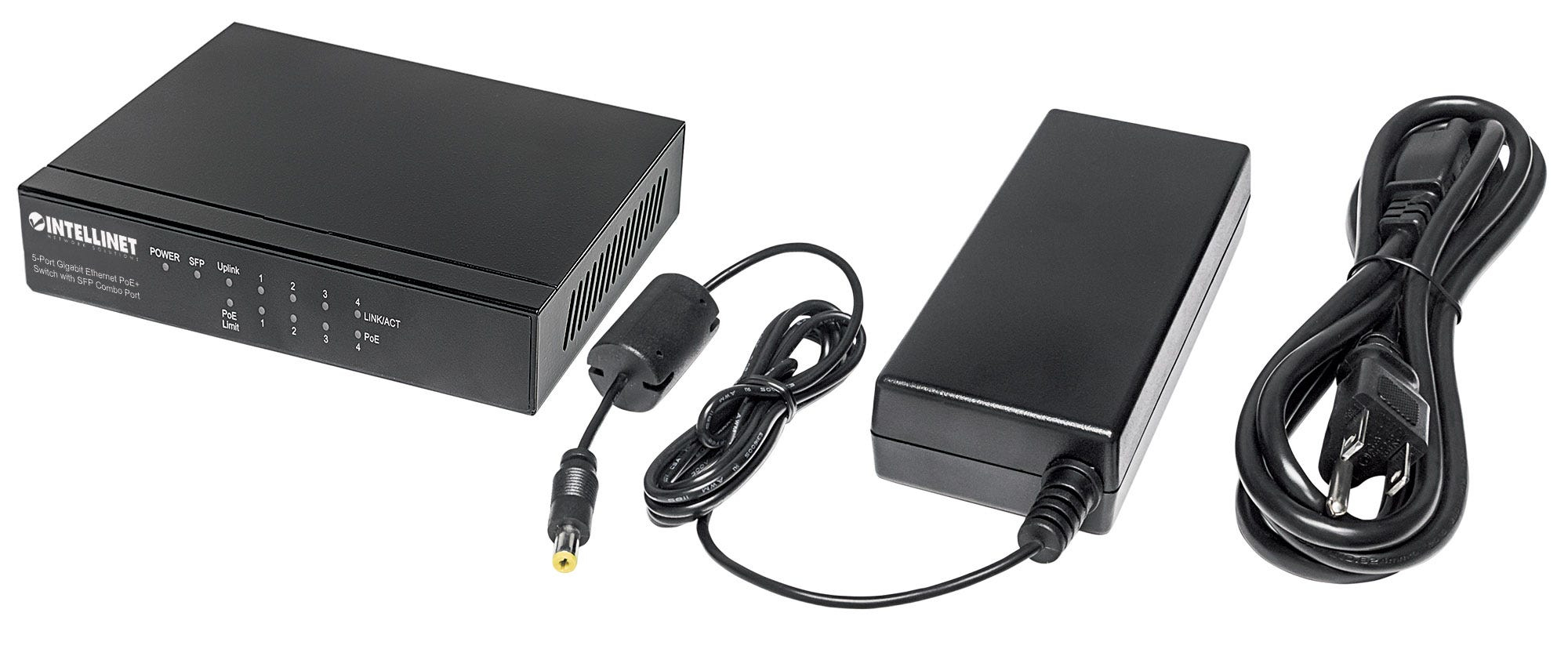

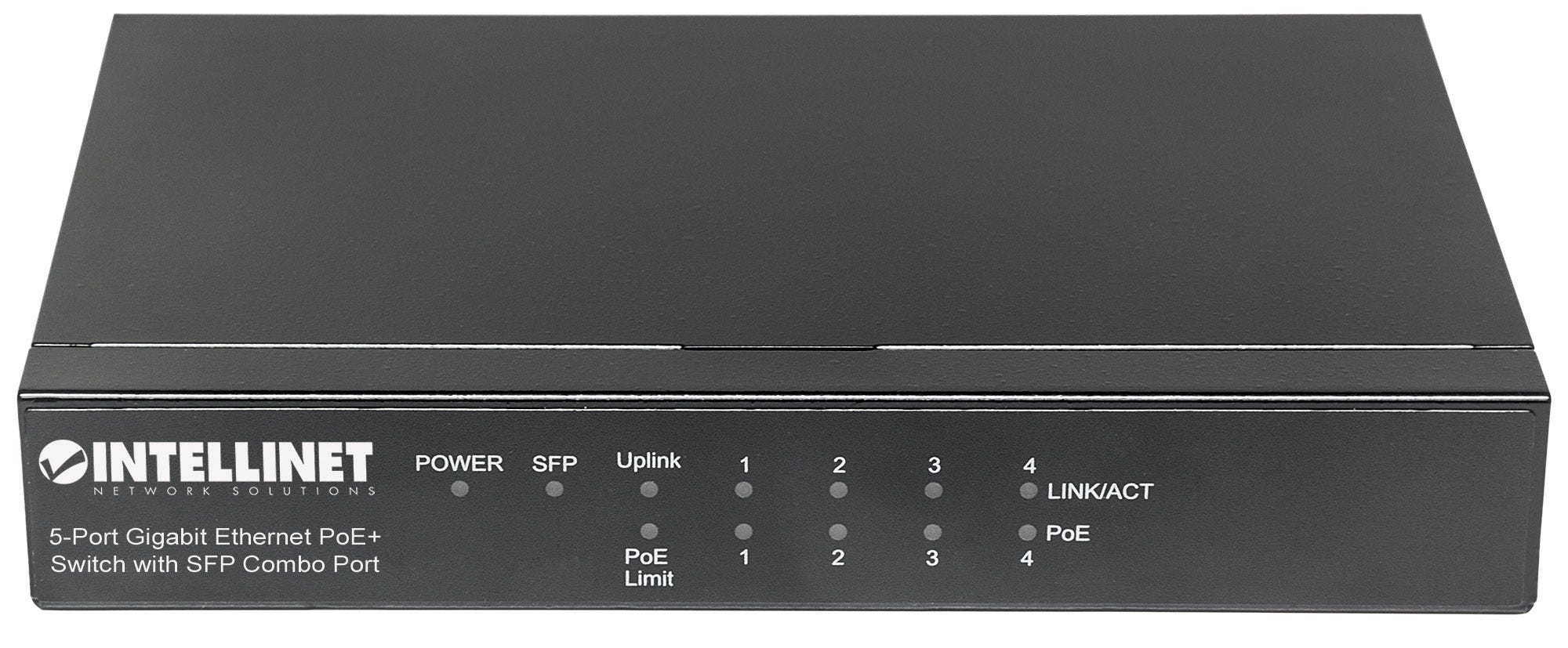

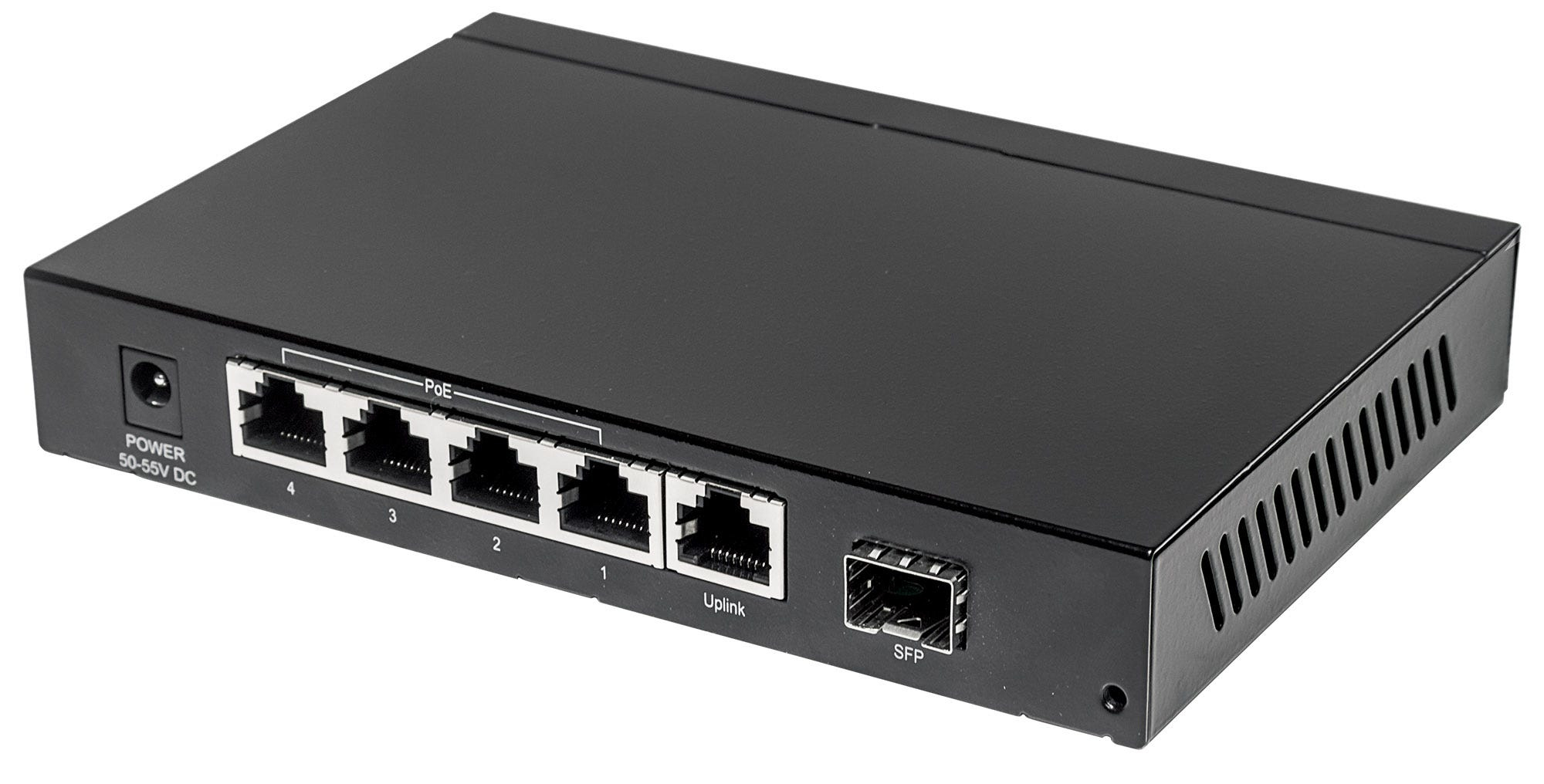

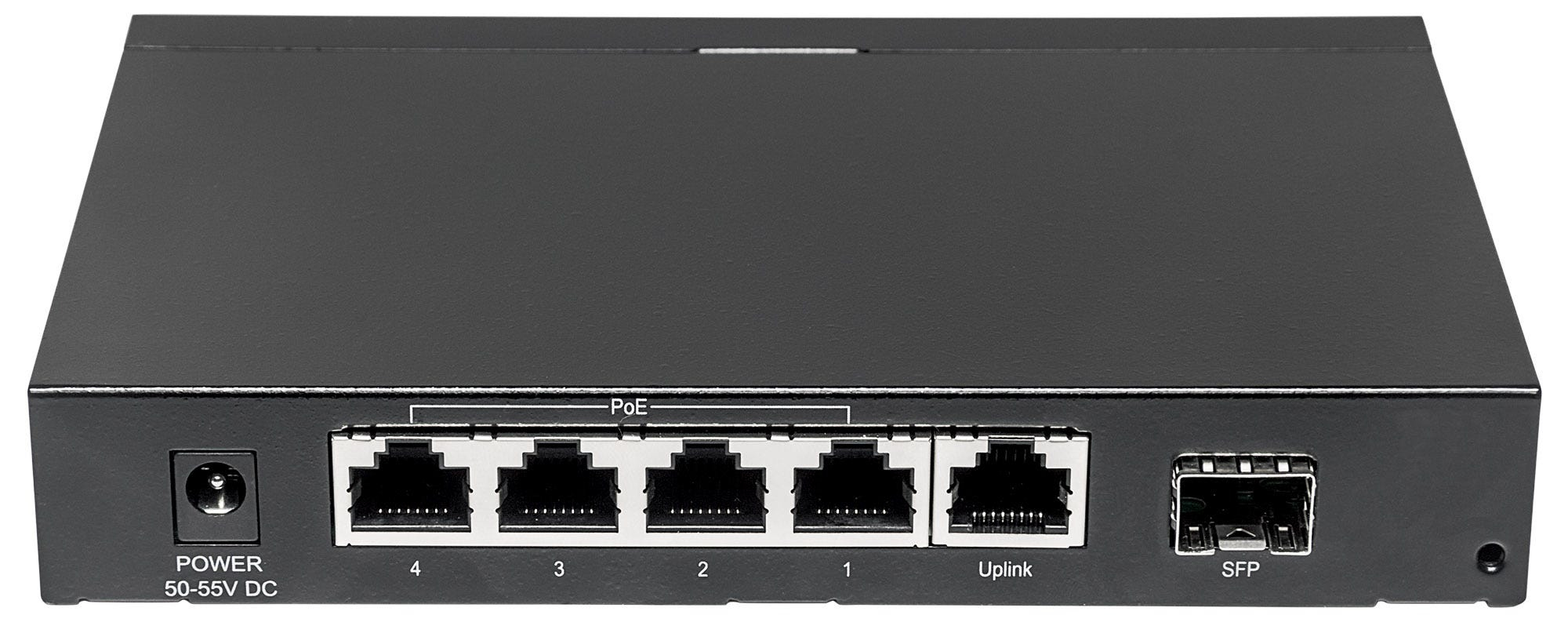

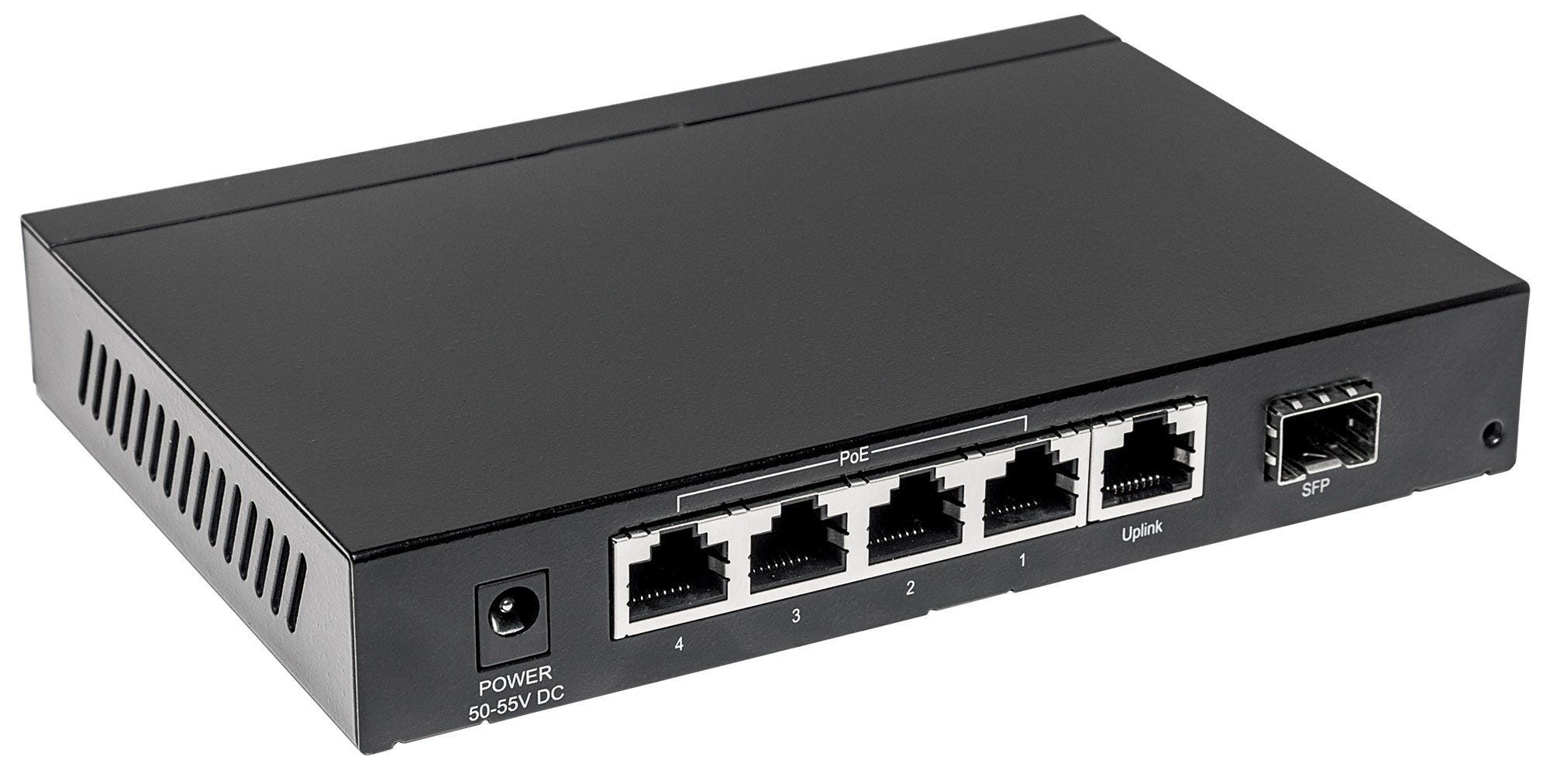

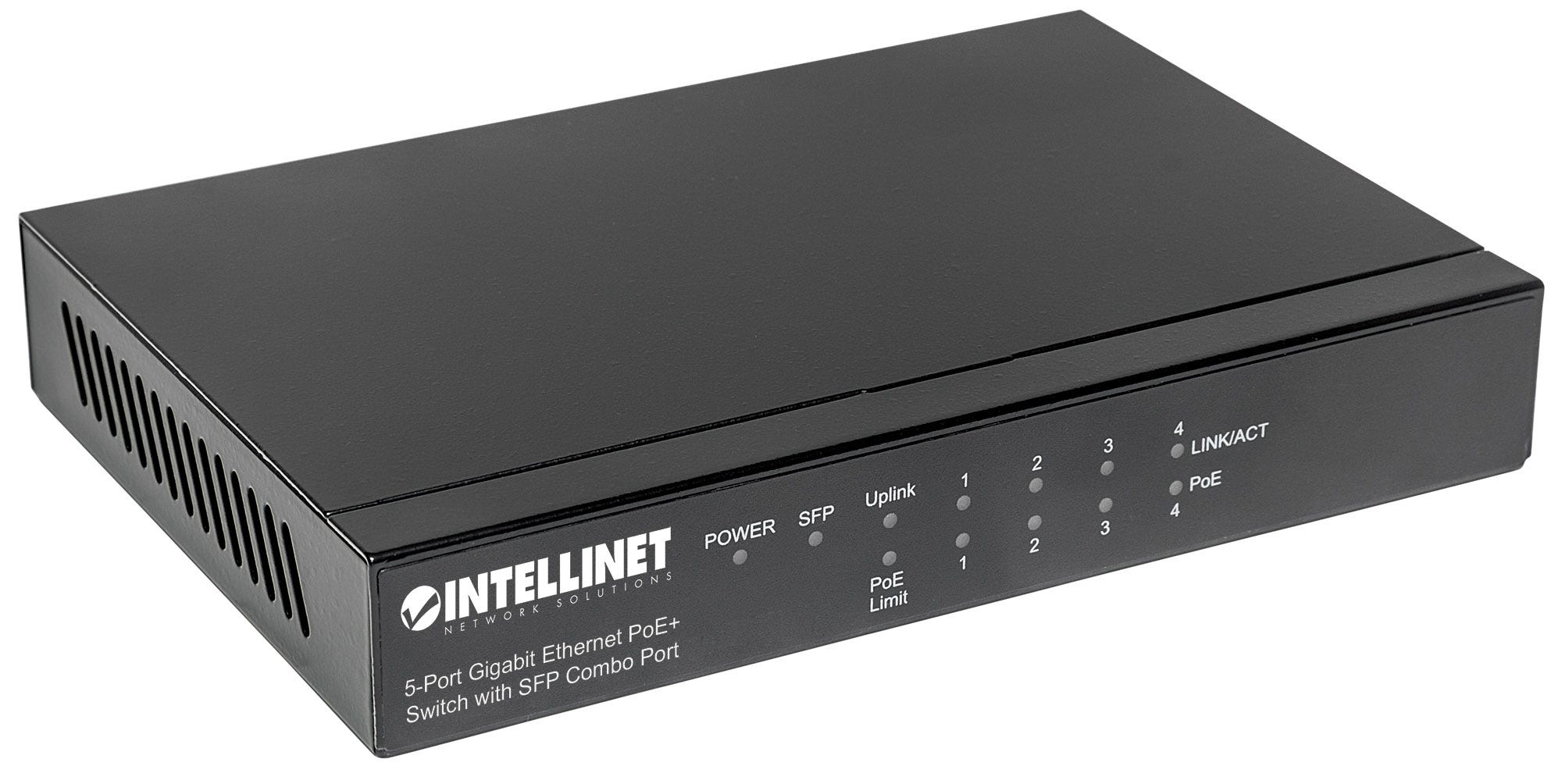

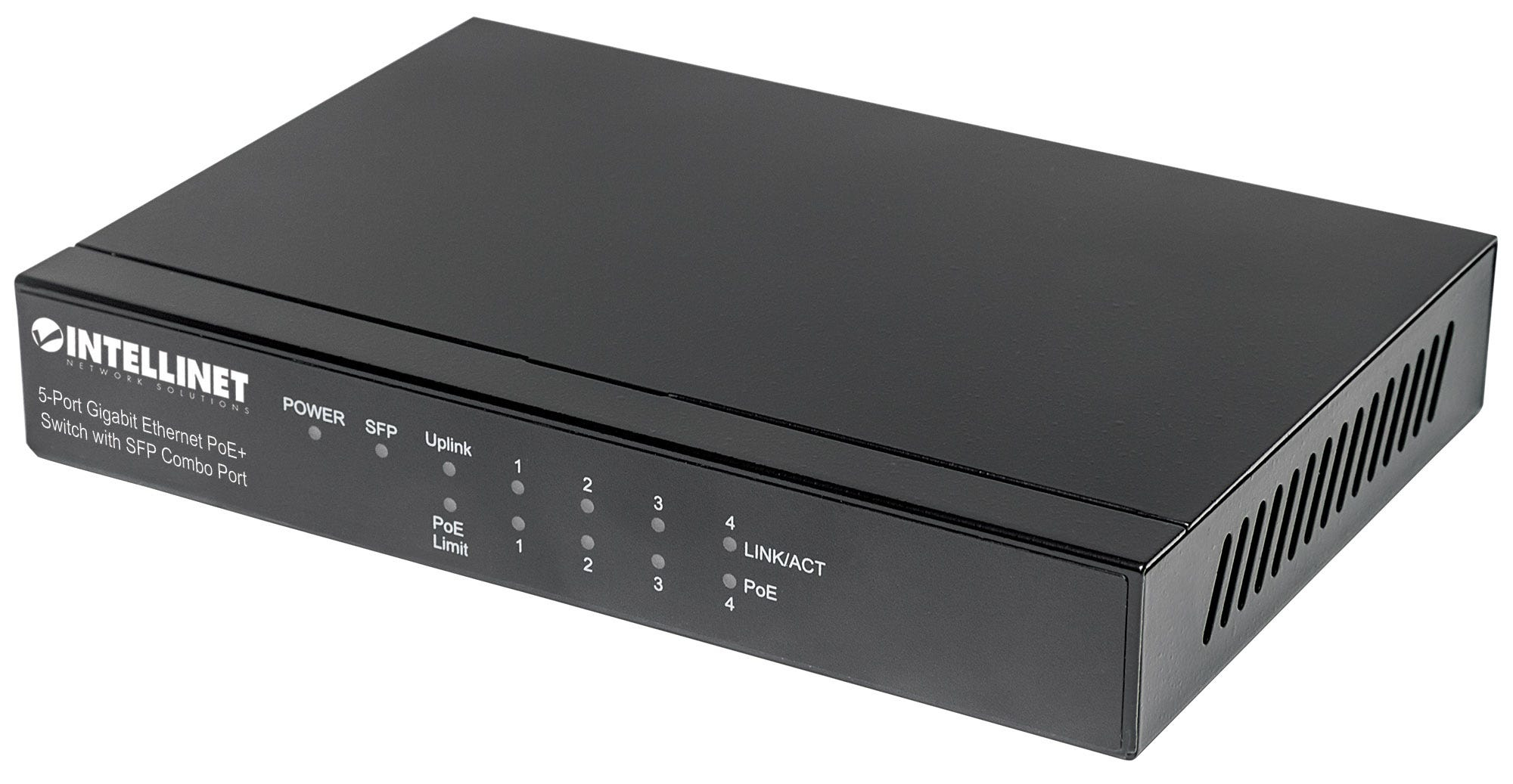

Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant

Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant

80 W, Desktop (Euro

Model 561174EAN 766623561174

42 specifications
  • Weight950 g
  • ColourBlack
  • Basic switching RJ-45 Ethernet ports quantity5
  • 10G supportNo
  • MAC address table2000 entries
  • Power supply includedYes
See all specifications

Overview

Weight
950 g
Colour
Black
Basic switching RJ-45 Ethernet ports quantity
5
10G support
No
MAC address table
2000 entries
Power supply included
Yes
Brand
Intellinet
Model
561174
Part number
561174
EAN / UPC
766623561174
Also known as
Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 80 W, Desktop (Euro

Specifications

42 specifications in 11 groups

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity0
Combo SFP ports quantity1
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table2000 entries
Switching capacity10 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps

Design

Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, PoE, Power

Power

Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)90 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget80 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width160 mm
Depth110 mm
Height24 mm
Weight950 g

Packaging content

Quick start guideYes
ManualYes

Certificates

CertificationFCC B, CE, IEC61000-4-2, IEC61000-4-4, IEC61000-4-5

Logistics data

Harmonized System (HS) code85176990
