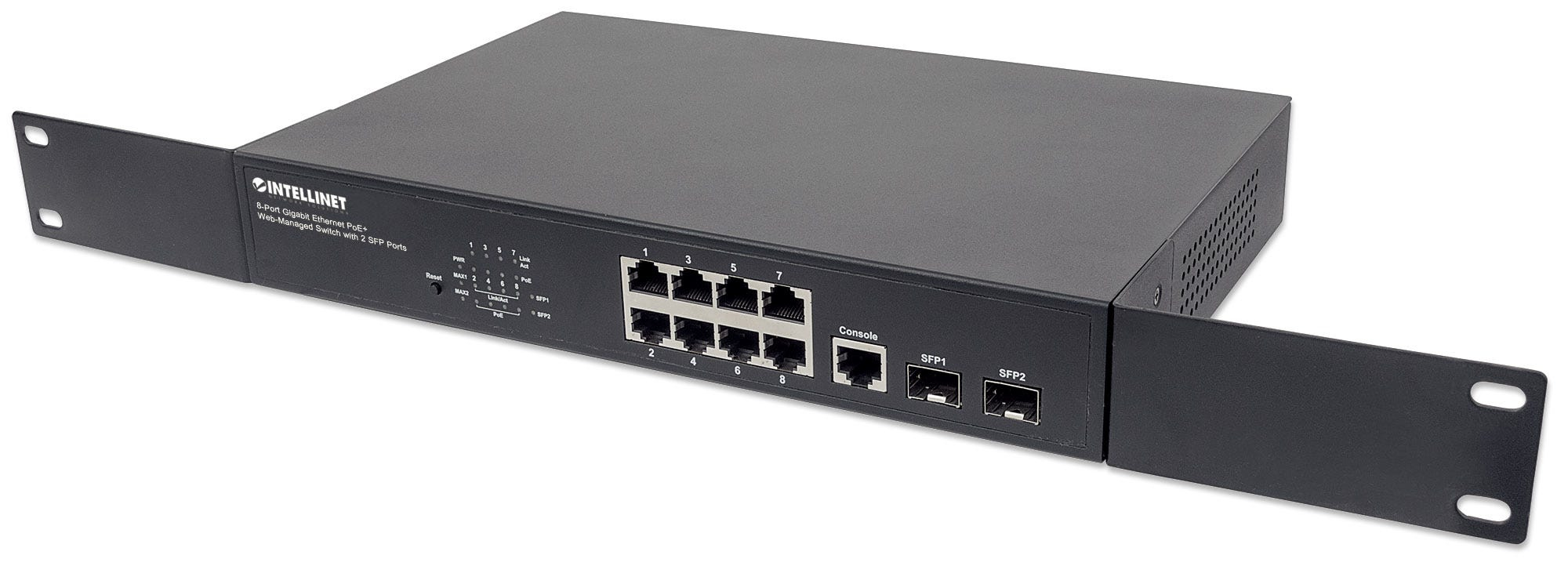

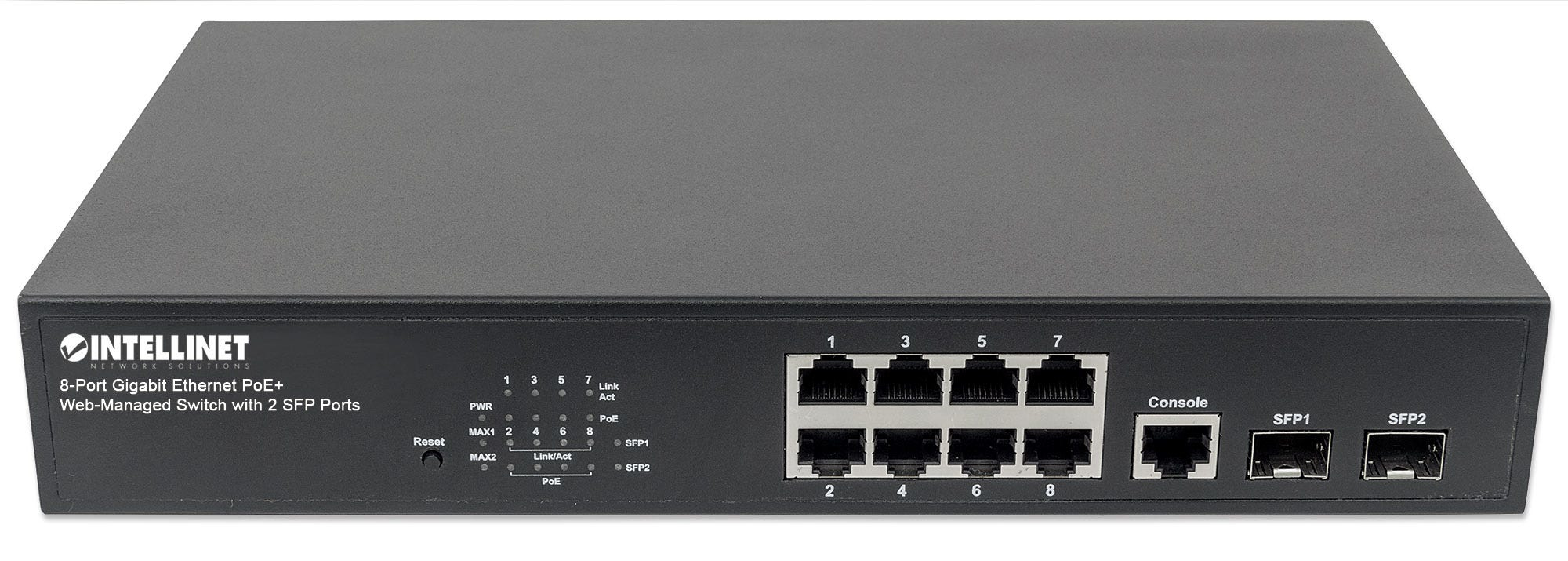

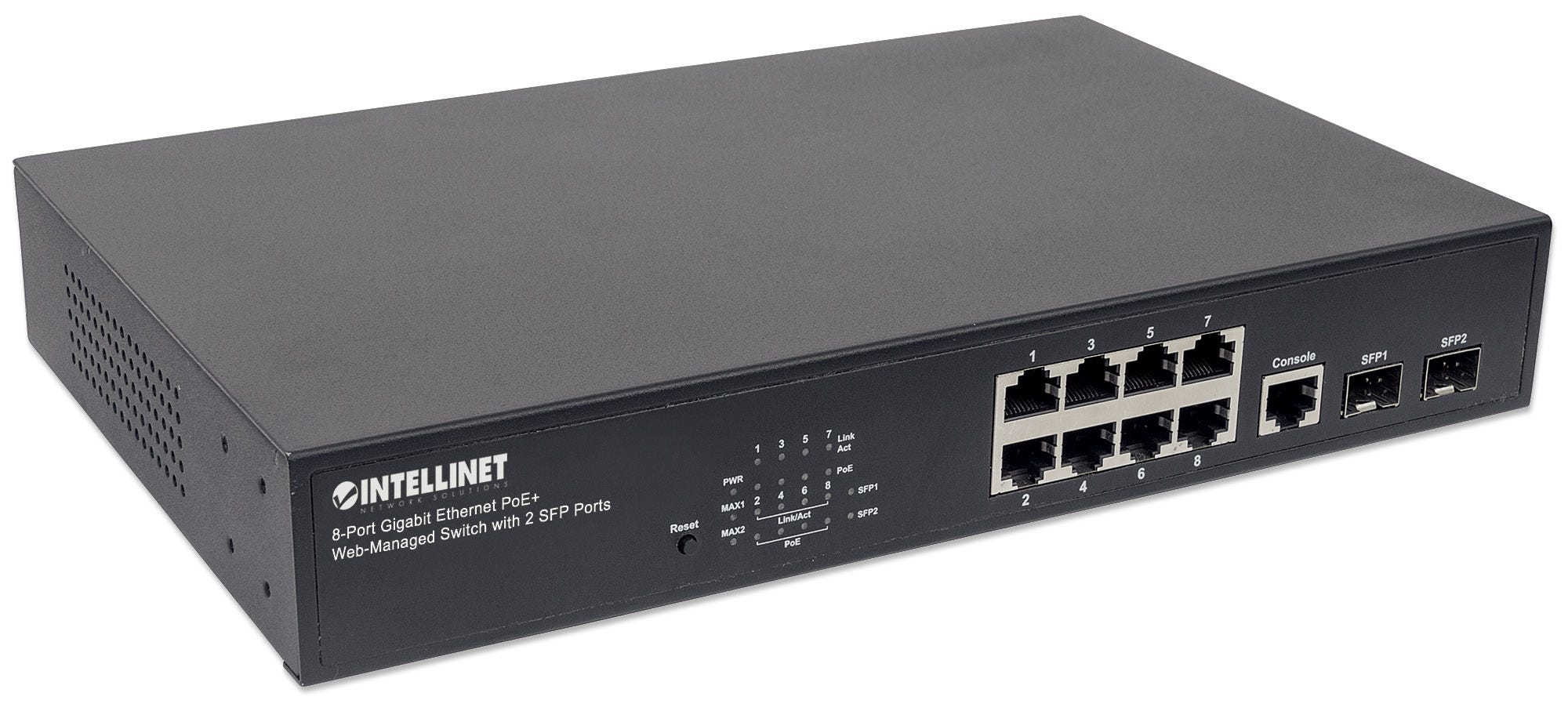

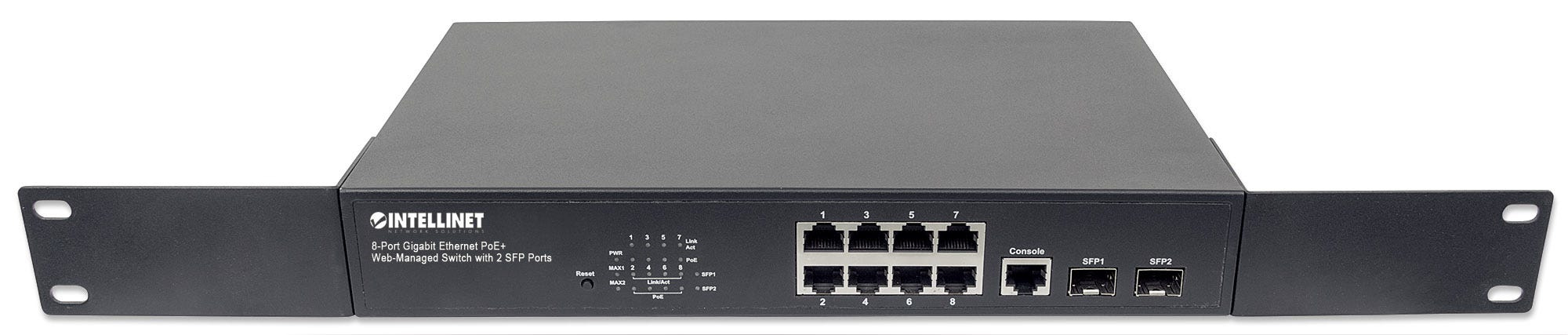

8-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant
140 W, Endspan, Desktop,
Model 561167EAN 766623561167
50 specifications
- Noise23.5 dB
- Weight1.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Noise
- 23.5 dB
- Weight
- 1.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561167
- Part number
- 561167
- EAN / UPC
- 766623561167
- Also known as
- Intellinet 8-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 140 W, Endspan, Desktop,
Specifications
50 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Noise level | 23.5 dB |
| Mean time between failures (MTBF) | 259692 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
