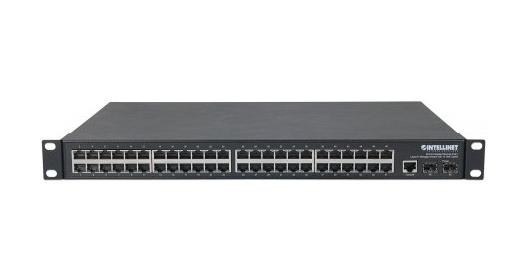

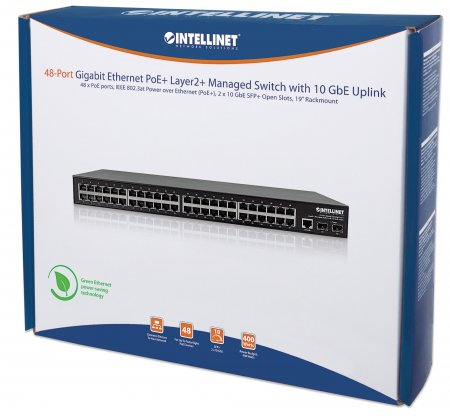

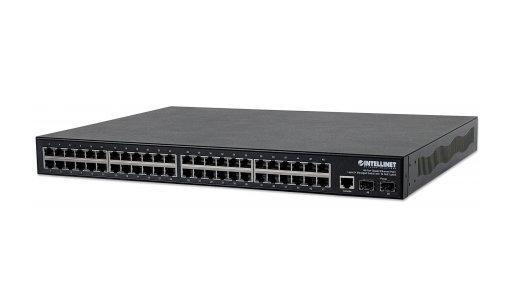

Intellinet 561112 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Intellinet 561112 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model 561112EAN 766623561112

57 specifications

Weight5 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
10G supportNo
MAC address table64000 entries

See all specifications

Overview

Weight: 5 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
10G support: No
MAC address table: 64000 entries

Brand: Intellinet
Category: Network Switch
Model: 561112
Part number: 561112
EAN / UPC: 766623561112
Also known as: Intellinet 561112 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

57 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	64000 entries
Switching capacity	136 Gbit/s
Forwarding rate	101.2 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	8 MB

Security

Specification	Value
DHCP features	DHCP client
IGMP snooping	Yes

Protocols

Specification	Value
Management protocols	SNMP, HTTP, HTTPS, SSH, TELNET
Supported network protocols	IPv4/v6
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
On/off switch	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	500 W
Power protection features	Over voltage, Overload, Short circuit

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	400 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 90 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	331 mm
Height	44 mm
Weight	5 kg

Packaging content

Specification	Value
Cables included	AC
Manual	Yes

Packaging data

Specification	Value
Mounting brackets included	Yes

Certificates

Specification	Value
Certification	FCC Class A, CE
