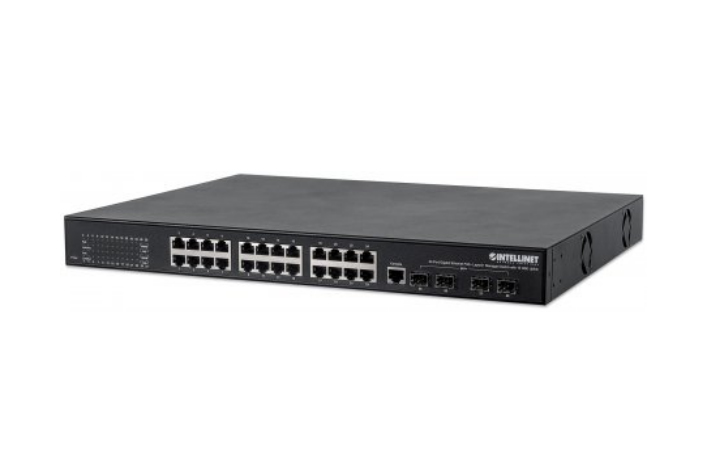

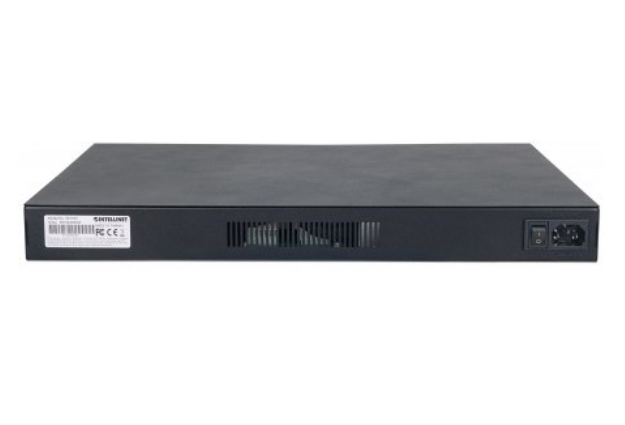

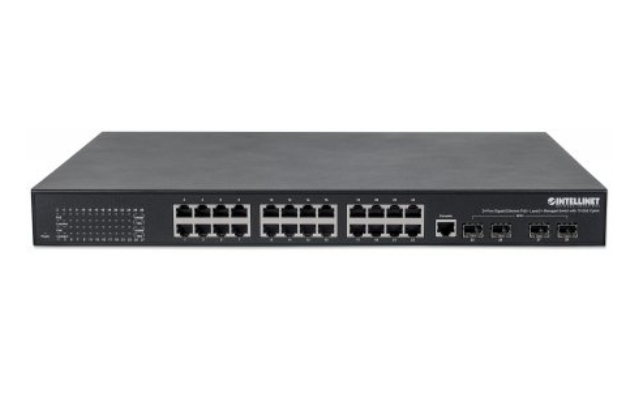

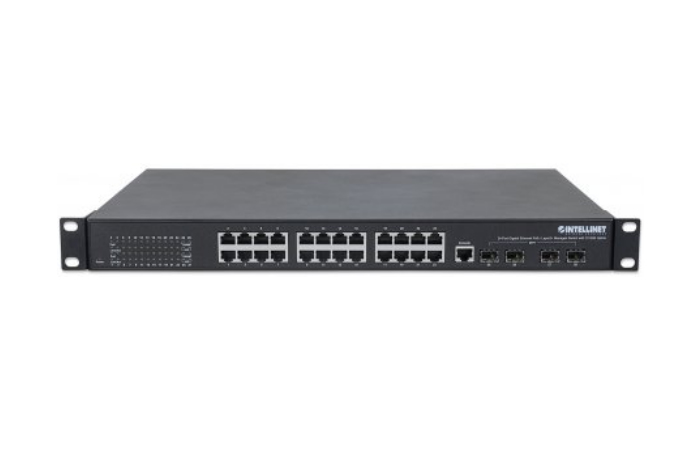

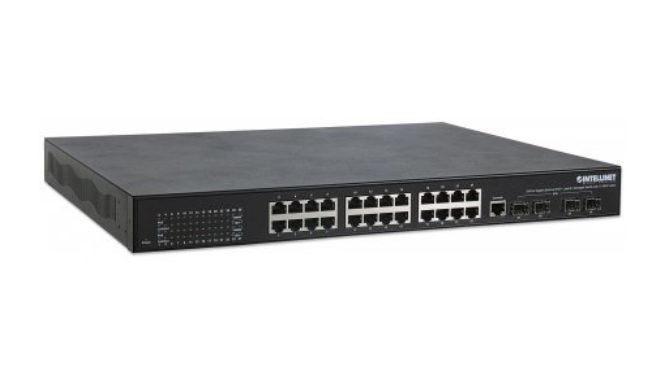

Intellinet 561105 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Intellinet 561105 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Model 561105EAN 766623561105

67 specifications
  • Type1U
  • Weight4.3 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportYes
See all specifications

Overview

Type
1U
Weight
4.3 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
Yes
Brand
Intellinet
Model
561105
Part number
561105
EAN / UPC
766623561105
Also known as
Intellinet 561105 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

67 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat5, Cat5e
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresTagged VLAN, Port-based VLAN
Number of VLANs4096

Data transmission

MAC address table32000 entries
Switching capacity128 Gbit/s
Throughput95.2 Mpps
Store-and-forwardYes
Number of queues8
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory4 MB

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
AuthenticationPort-based authentication
BPDU filtering/protectionYes
Loop protectionYes
MAC address filteringYes
Security algorithms802.1x RADIUS, HTTPS, SSH-2, SSL/TLS

Protocols

Management protocolsSNMP, HTTP, HTTPS, SSH, TELNET

Design

Rack mountingYes
Form factor1U
Product colourBlack
Housing materialMetal
Reset buttonYes
LED indicatorsYes

Power

Redundant power supply (RPS) supportNo
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)500 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 90 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width440 mm
Depth331 mm
Height44 mm
Weight4.3 kg

Packaging content

Cables includedAC
ManualYes

Packaging data

Mounting brackets includedYes

Certificates

CertificationCE, FCC Class A
