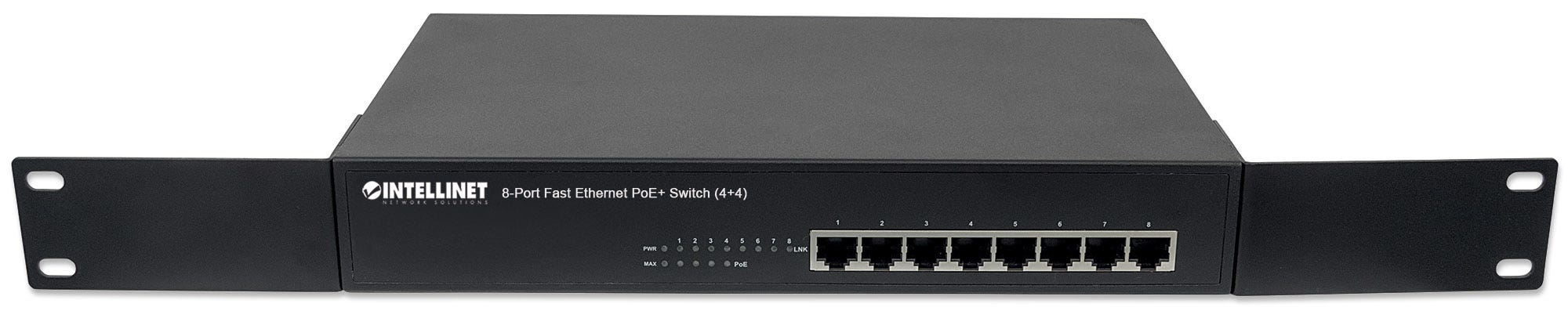

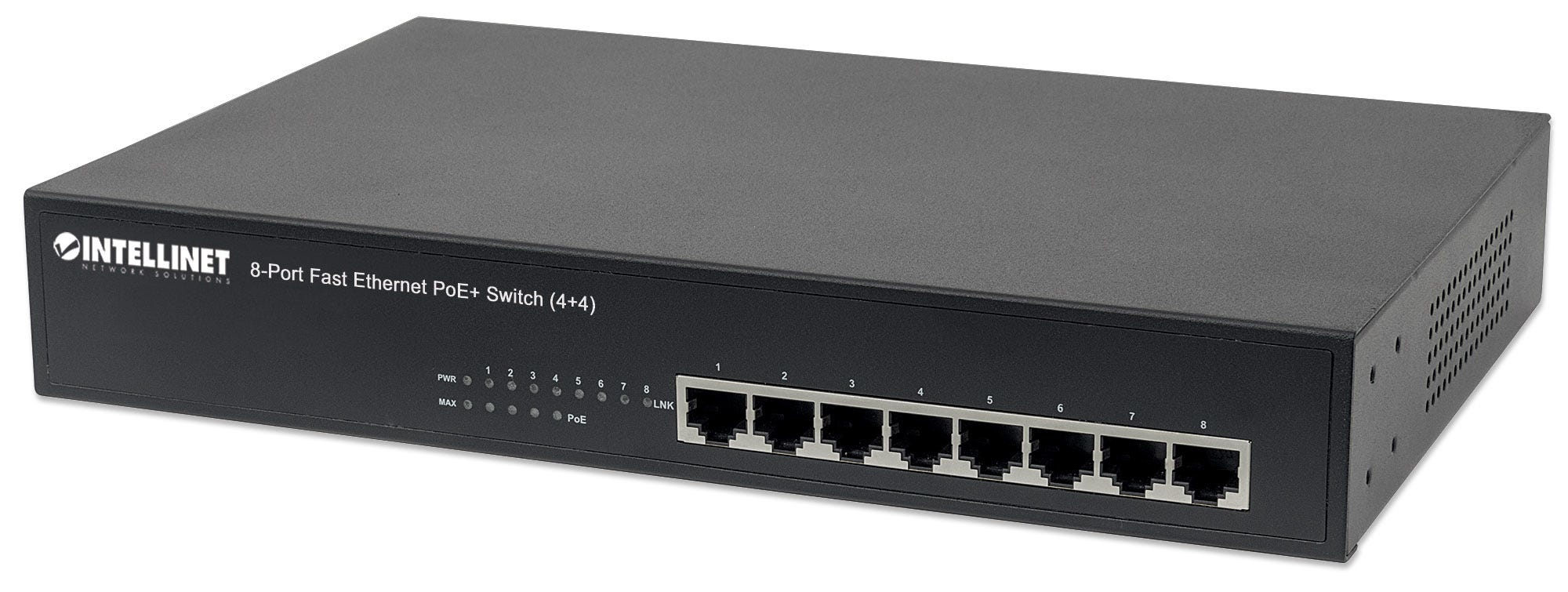

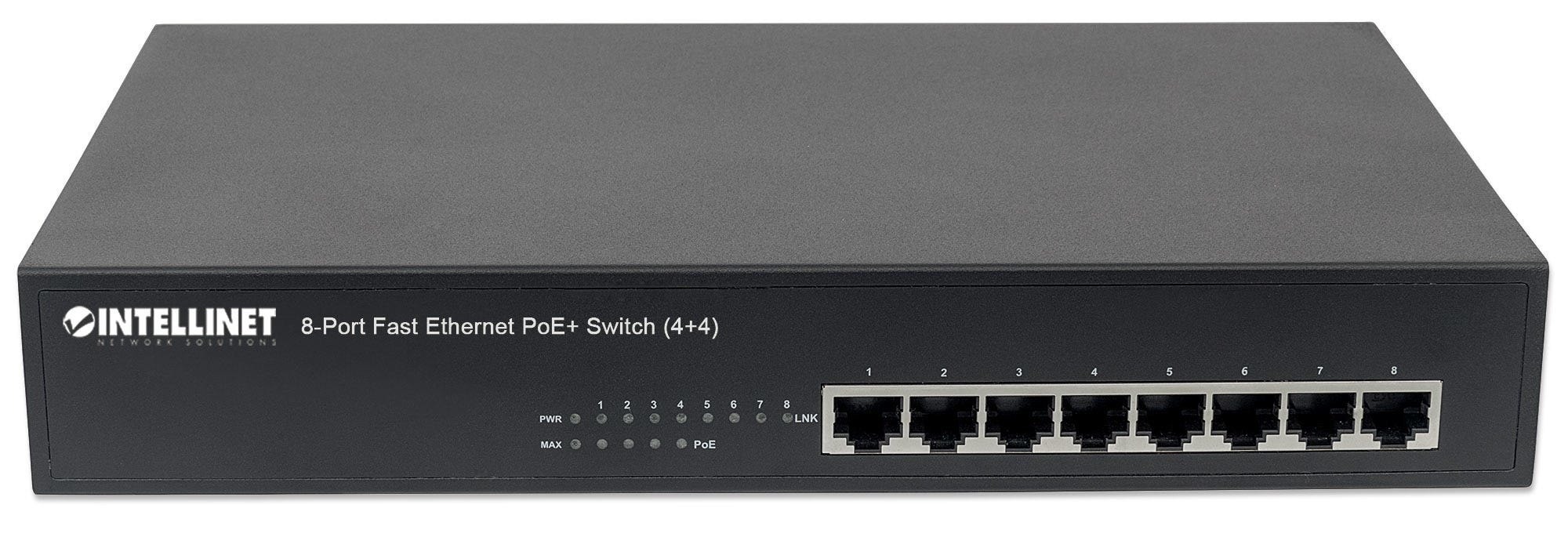

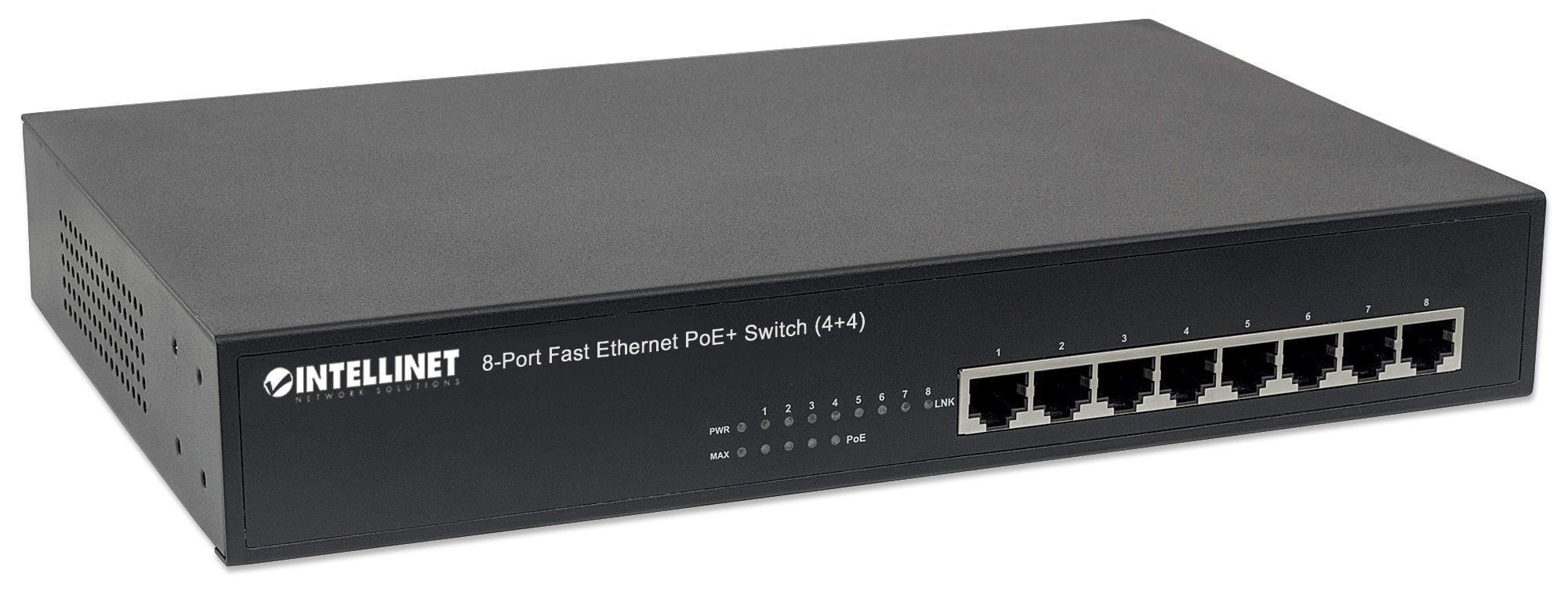

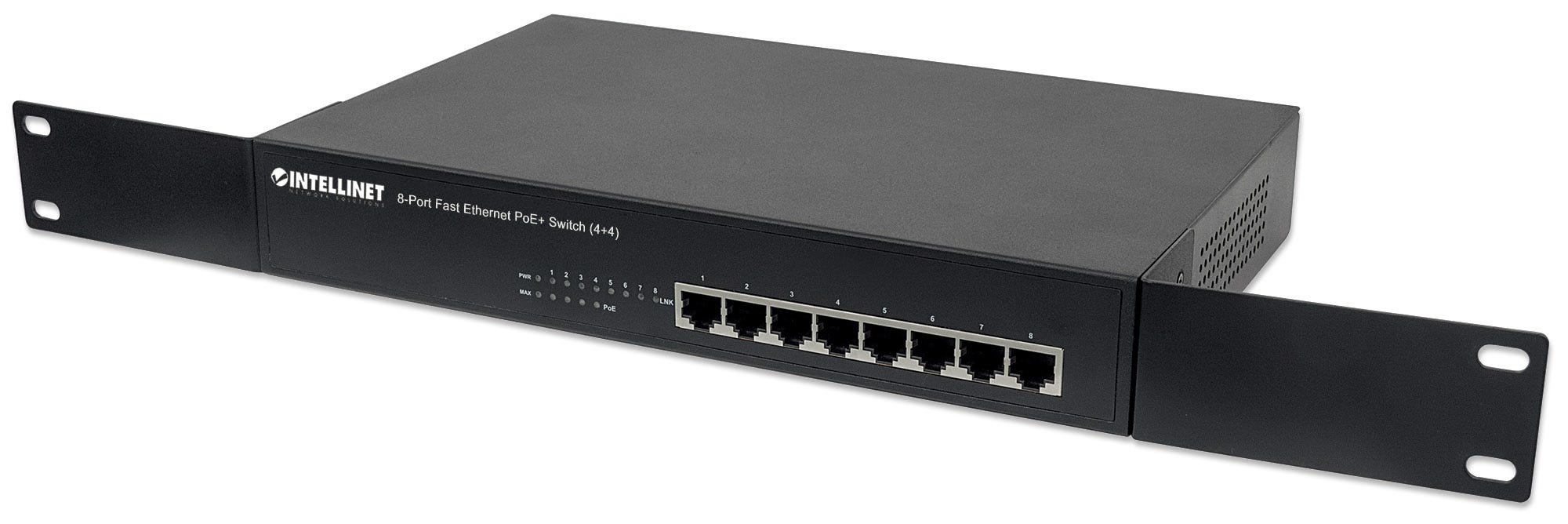

Intellinet 8-Port Fast Ethernet PoE+ Switch, 4 x PoE IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) ports, 4 x Standard RJ45 Ports, Endspan, Desktop

Intellinet 8-Port Fast Ethernet PoE+ Switch, 4 x PoE IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) ports, 4 x Standard RJ45 Ports, Endspan, Desktop

19" Rackmo

Model 561075EAN 766623561075

45 specifications
  • Weight1.5 kg
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • Copper ethernet cabling technology10BASE-T, 100BASE-TX
  • MAC address table2000 entries
See all specifications

Overview

Weight
1.5 kg
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
MAC address table
2000 entries
Brand
Intellinet
Model
561075
Part number
561075
EAN / UPC
766623561075, 7666235610754
Also known as
Intellinet 8-Port Fast Ethernet PoE+ Switch, 4 x PoE IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) ports, 4 x Standard RJ45 Ports, Endspan, Desktop, 19" Rackmo

Specifications

45 specifications in 14 groups

Management features

Switch typeUnmanaged
Control and Provisioning of Wireless Access Points (CAPWAP)Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

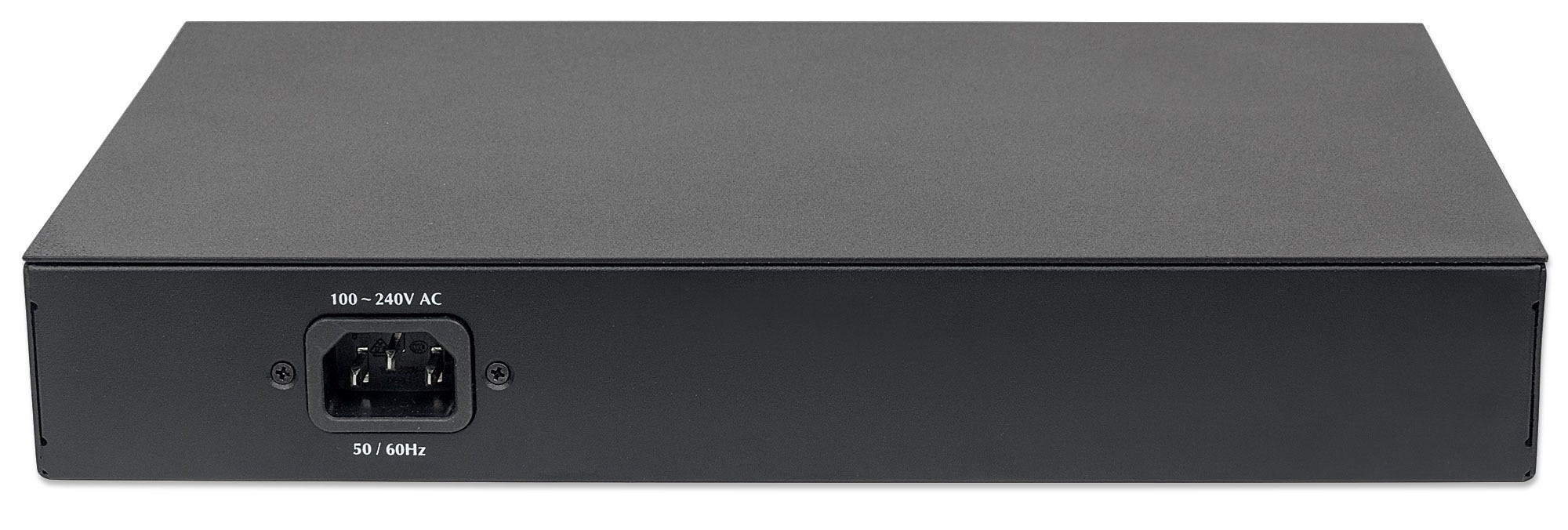

Power connectorAC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Cable types supportedCat3, Cat4, Cat5
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes

Data transmission

MAC address table2000 entries
Switching capacity1.6 Gbit/s
Forwarding rate0.1488 Mpps
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps

Design

Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsActivity, PoE, Power

Performance

Buffer size768 KB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)80 W
Power protection featuresOver voltage, Overload, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget70 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width280 mm
Depth179 mm
Height44 mm
Weight1.5 kg

Packaging content

Cables includedAC
ManualYes
Rack mount kitYes

Packaging data

Mounting brackets includedYes

Certificates

CertificationFCC A, CE

Logistics data

Harmonized System (HS) code85176990
