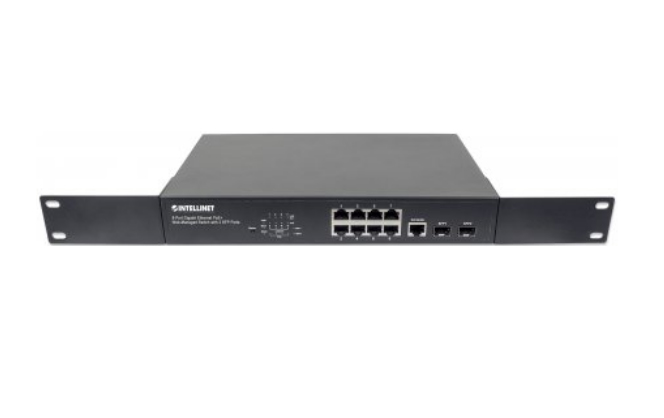

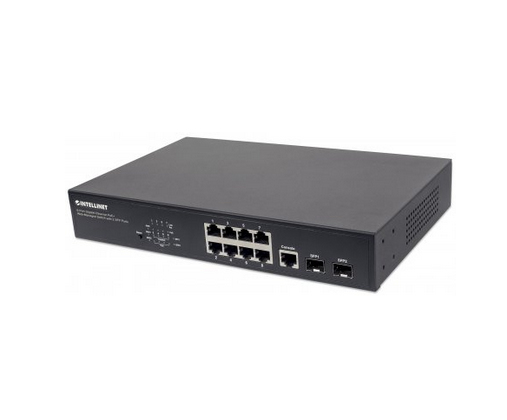

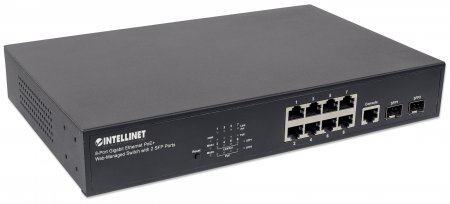

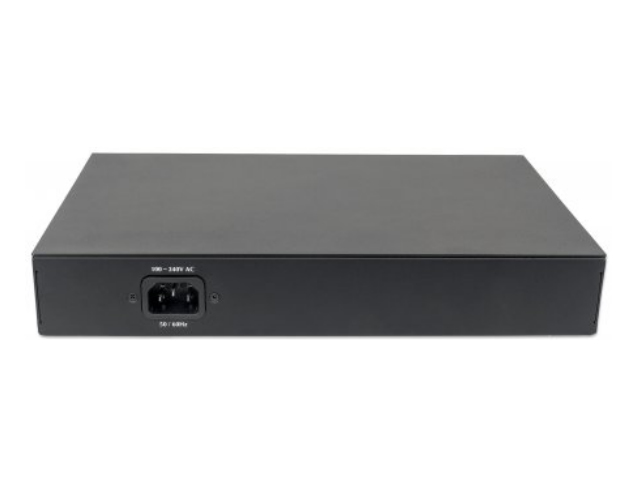

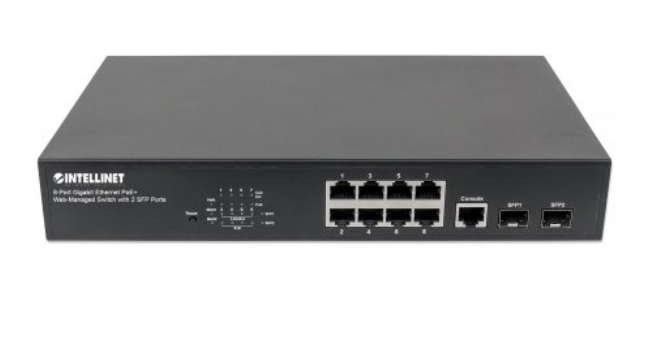

Intellinet 561051 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model 561051EAN 766623561051
61 specifications
- Type1U
- Weight1.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 1.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 561051
- Part number
- 561051
- EAN / UPC
- 766623561051
- Also known as
- Intellinet 561051 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
61 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
