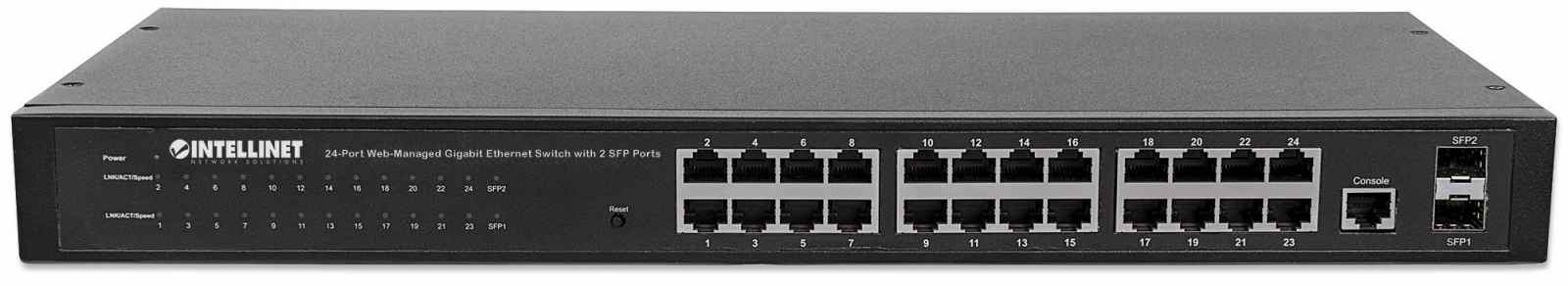

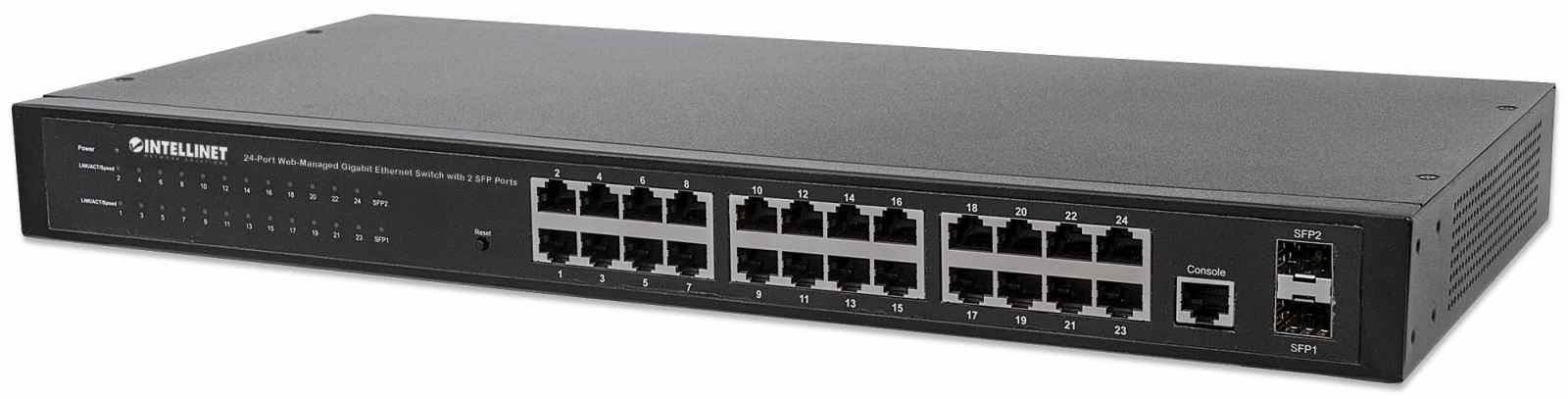

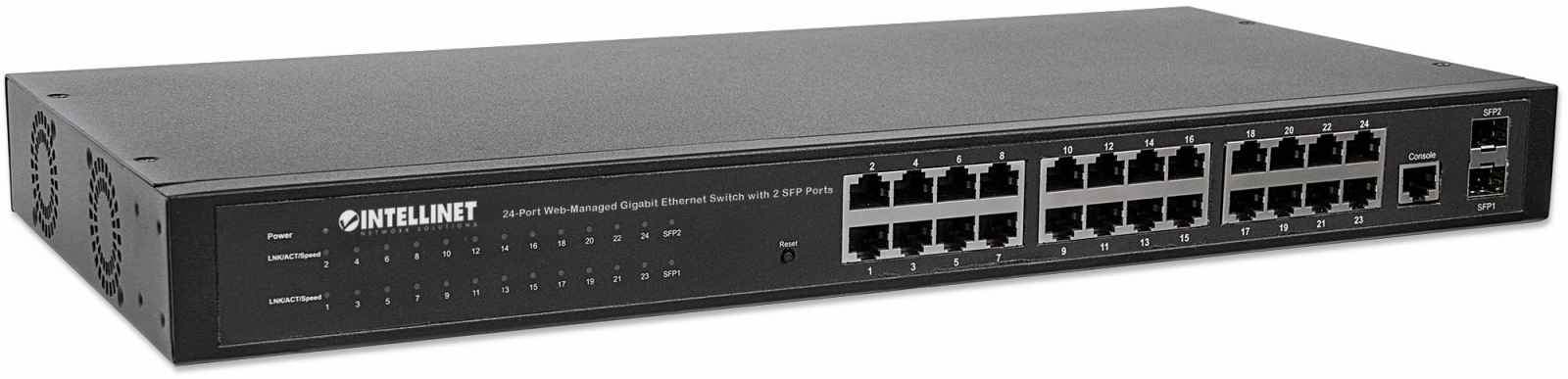

24-Port Network Switch, 24-Port (RJ45), Rackmount, Gigabit, 4 SFP, Ethernet Web-Smart, 10/100/1000 Mbit/ (With UK Power Cord)
Model 560917-UKEAN 766623995955
57 specifications
- Type1U
- Weight2.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 560917-UK
- Part number
- 560917-UK
- EAN / UPC
- 766623995955
- Also known as
- Intellinet 24-Port Network Switch, 24-Port (RJ45), Rackmount, Gigabit, 4 SFP, Ethernet Web-Smart, 10/100/1000 Mbit/ (With UK Power Cord)
Specifications
57 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 8 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v |
Design
| Specification | Value |
|---|---|

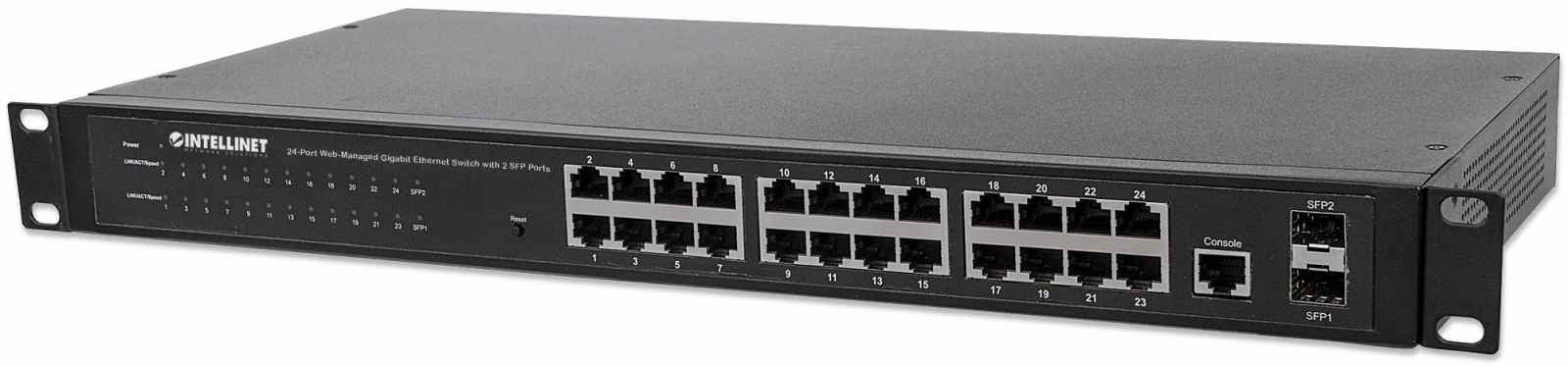

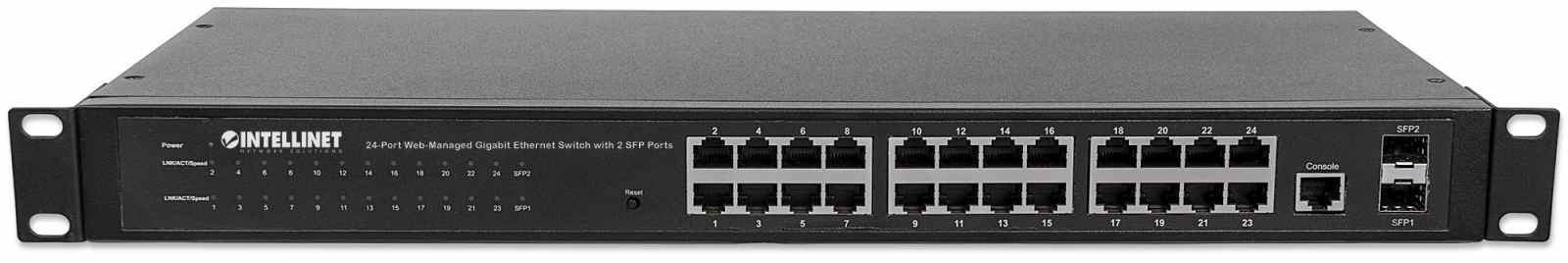

| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |

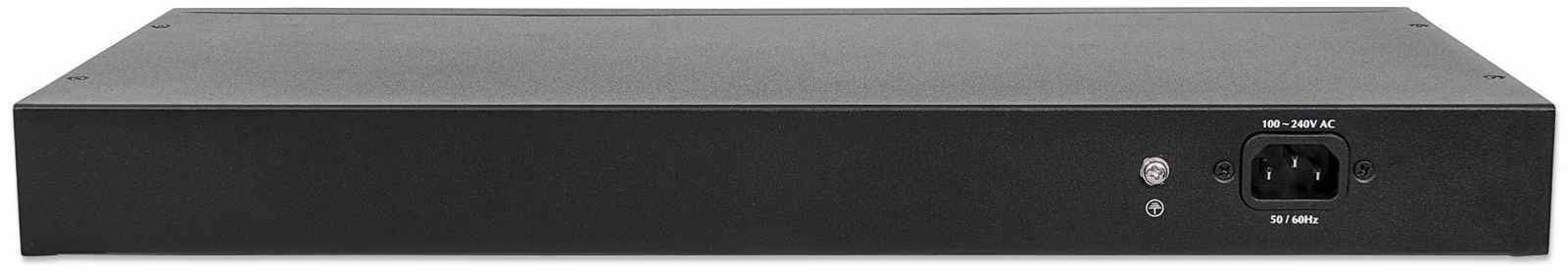

Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 205 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
