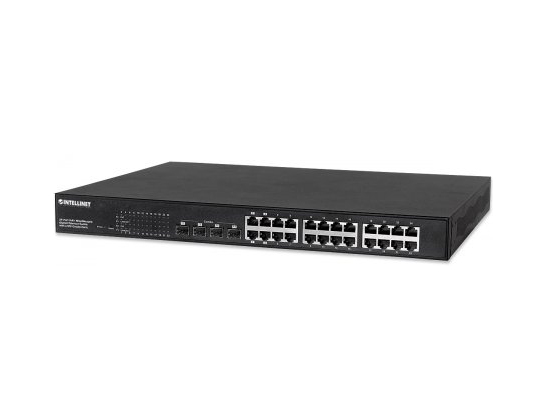

Intellinet 560900 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model 560900EAN 766623560900
62 specifications
- Type1U
- Weight4.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 560900
- Part number
- 560900
- EAN / UPC
- 766623560900, 7666235609000
- Also known as
- Intellinet 560900 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
62 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 500 KB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 390 W |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 360 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 331 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
