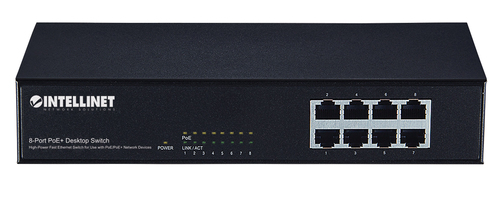

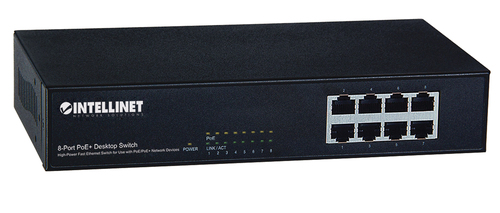

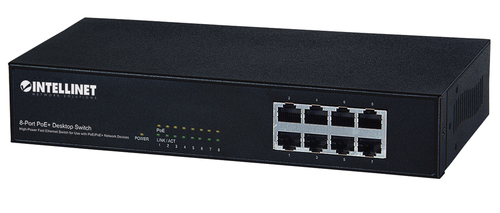

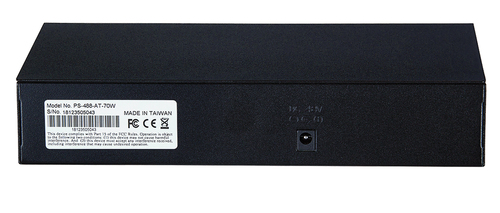

8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop (UK power cord)
Model 560764-UKEAN 766623995689
33 specifications
- Weight1.5 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table2048 entries
- Rack mountingNo
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 2048 entries
- Rack mounting
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 560764-UK
- Part number
- 560764-UK
- EAN / UPC
- 766623995689
- Also known as
- Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop (UK power cord)
Specifications
33 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Total Power over Ethernet (PoE) budget | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 179 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
