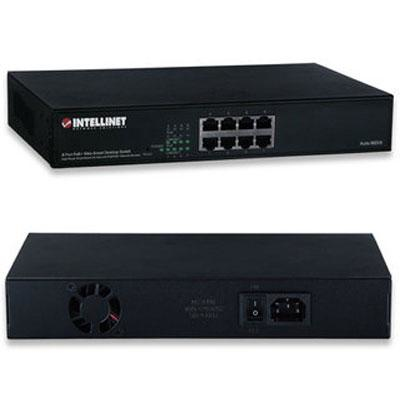

Intellinet 560665 network switch Power over Ethernet (PoE) Black
Model 560665EAN 846764213955
29 specifications
- Speed0.1 Gbit/s
- Weight2 kg
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 2 kg
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 560665
- Part number
- 560665
- EAN / UPC
- 846764213955, 070090134756, 086000203337, 115971123969 +15 more
- Also known as
- Intellinet 560665 network switch Power over Ethernet (PoE) Black
Specifications
29 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Supported data transfer rates | 10/100Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 130 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 266 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
