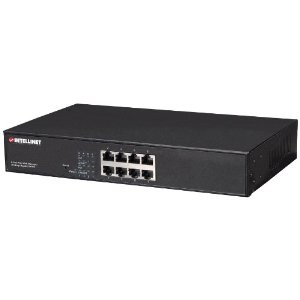

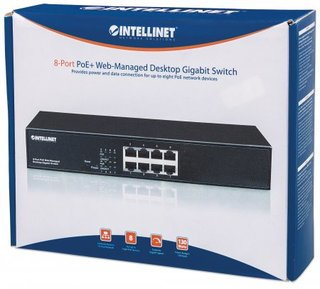

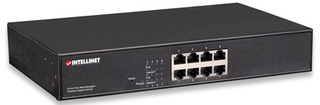

Intellinet 560542 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Intellinet 560542 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model 560542EAN 151903002810

43 specifications
  • Weight1.6 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • MAC address table8192 entries
See all specifications

Overview

Weight
1.6 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
MAC address table
8192 entries
Brand
Intellinet
Model
560542
Part number
560542
EAN / UPC
151903002810, 086000203283, 132018278369, 766623560542 +1 more
Also known as
Intellinet 560542 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

43 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table8192 entries
Switching capacity16 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Packet buffer memory0.176 MB

Security

IGMP snoopingYes

Protocols

Management protocolsSNMPv1/v2c

Design

Product colourBlack
Housing materialMetal
LED indicatorsYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)130 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget123 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Width266 mm
Depth160 mm
Height44 mm
Weight1.6 kg

Certificates

CertificationFCC Class A, CE
