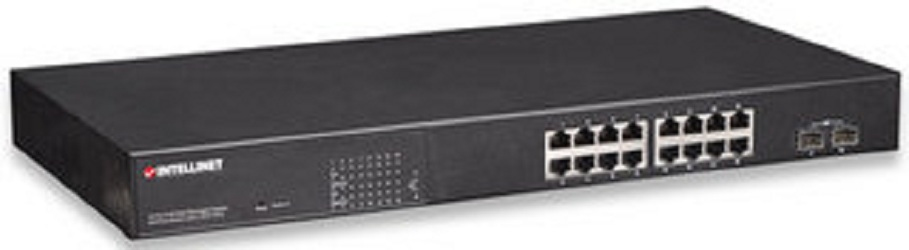

Intellinet 560535 network switch Power over Ethernet (PoE) Black

Intellinet 560535 network switch Power over Ethernet (PoE) Black

Model 560535EAN 7666235605354

21 specifications

Speed1 Gbit/s
Weight3 kg
ColourBlack
Basic switching RJ-45 Ethernet ports quantity16
MAC address table16000 entries
Rack mountingYes

See all specifications

Overview

Speed: 1 Gbit/s
Weight: 3 kg
Colour: Black
Basic switching RJ-45 Ethernet ports quantity: 16
MAC address table: 16000 entries
Rack mounting: Yes

Brand: Intellinet
Category: Network Switch
Model: 560535
Part number: 560535
EAN / UPC: 7666235605354, 071030574823, 163121507145, 172304305508 +2 more
Also known as: Intellinet 560535 network switch Power over Ethernet (PoE) Black

Specifications

21 specifications in 9 groups

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Data transmission

Specification	Value
MAC address table	16000 entries
Supported data transfer rates	10/100/1000
Switching capacity	36 Gbit/s
Maximum data transfer rate	1 Gbit/s

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Power

Specification	Value
AC input voltage	90 - 260 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 90 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	40 mm
Depth	220 mm
Height	44 mm
Weight	3 kg

Certificates

Specification	Value
Certification	FCC A, CE
