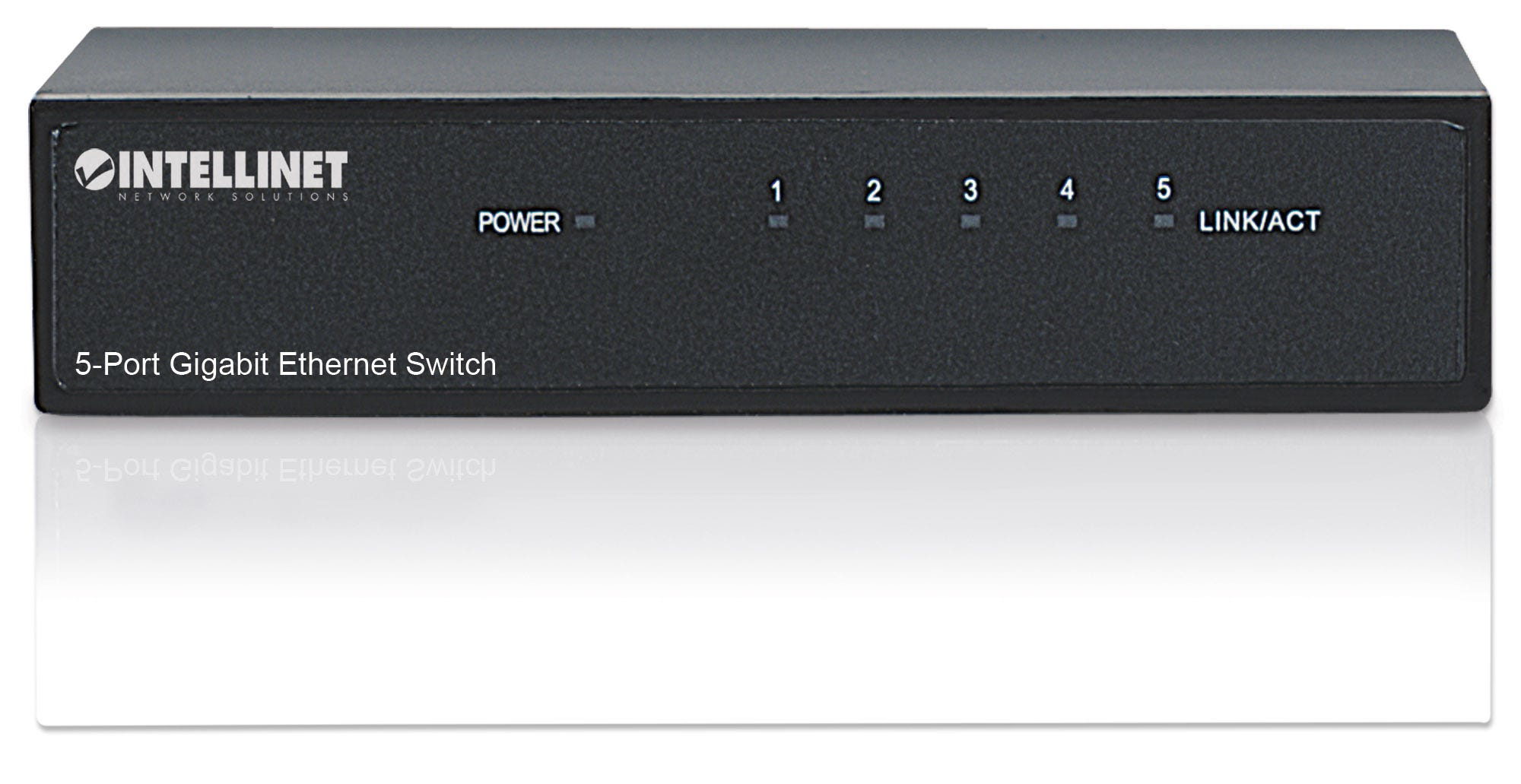

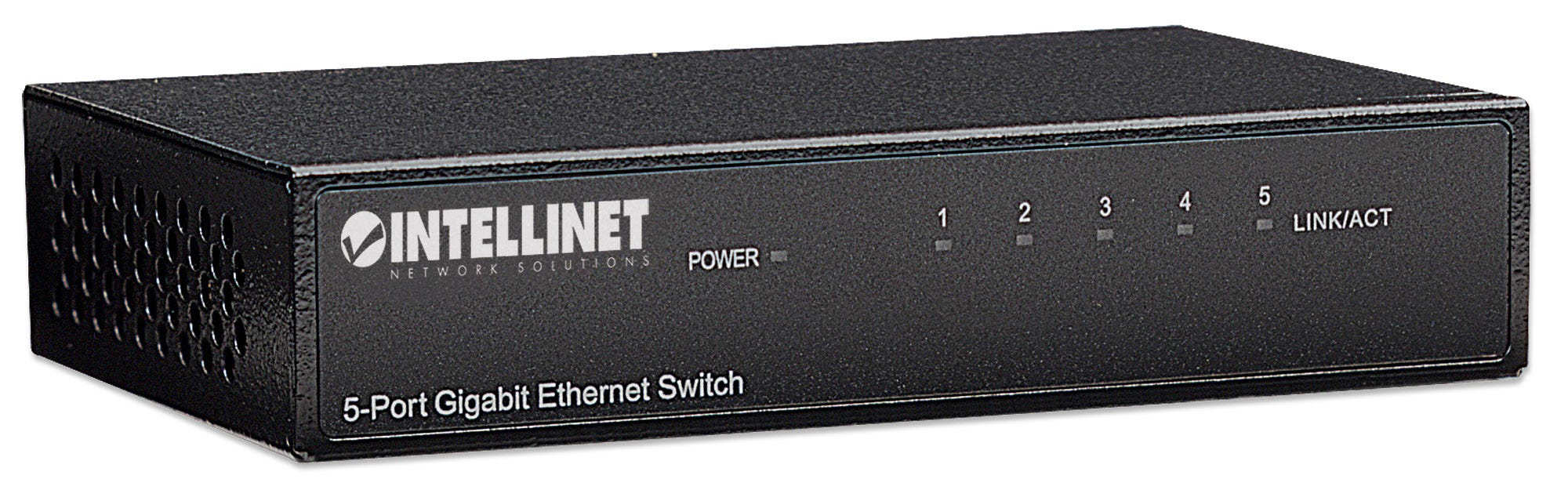

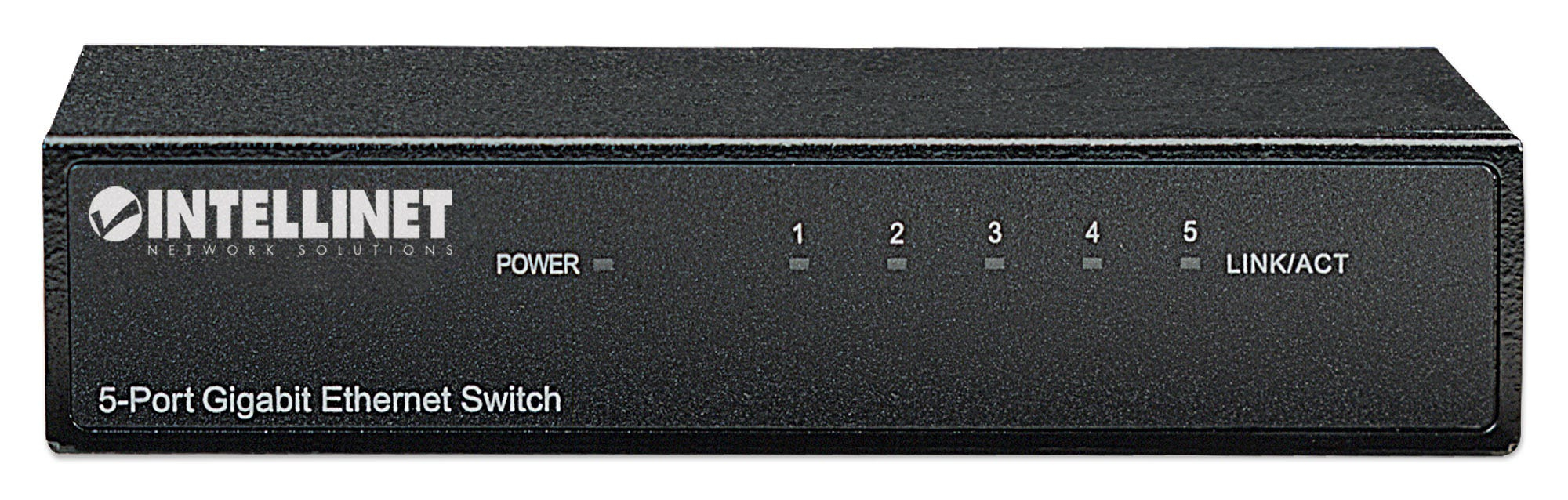

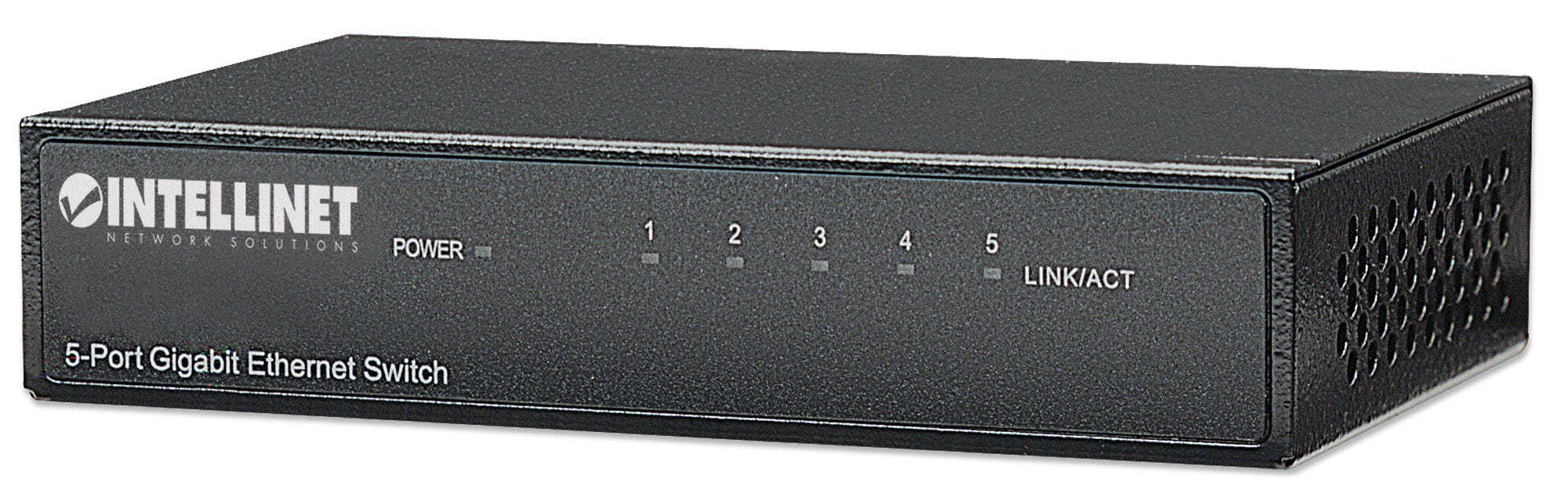

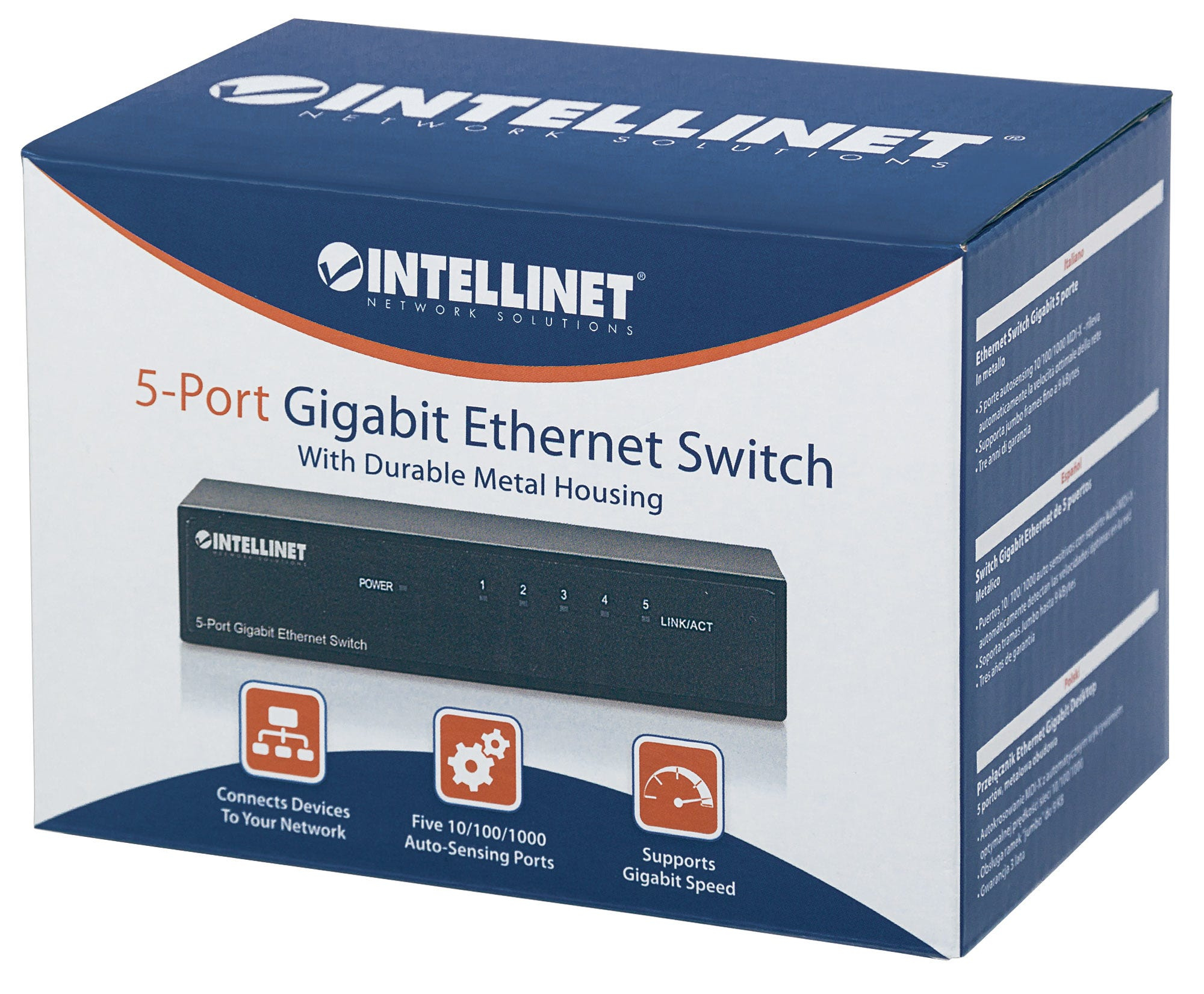

Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
Model 530378EAN 6213759738009
30 specifications
- Weight310 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1024 entries
- MAC address filteringYes
Overview
- Weight
- 310 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1024 entries
- MAC address filtering
- Yes
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 530378
- Part number
- 530378
- EAN / UPC
- 6213759738009, 078667271149, 086000202750, 754262023634 +13 more
- Also known as
- Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
Specifications
30 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

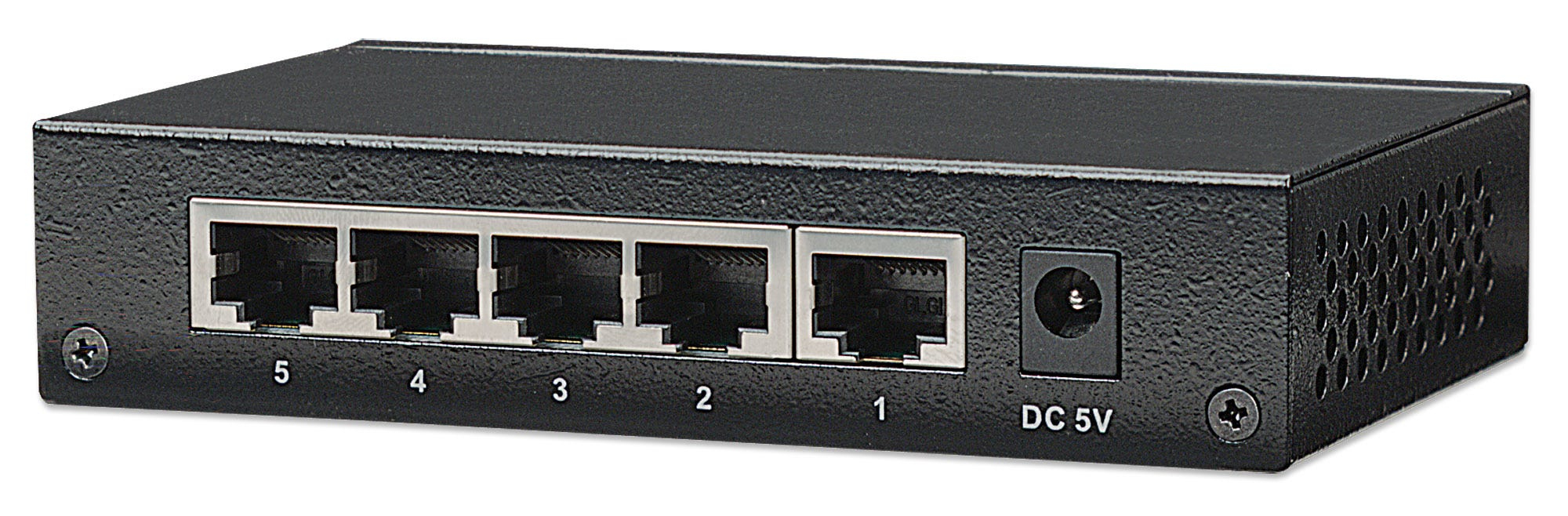

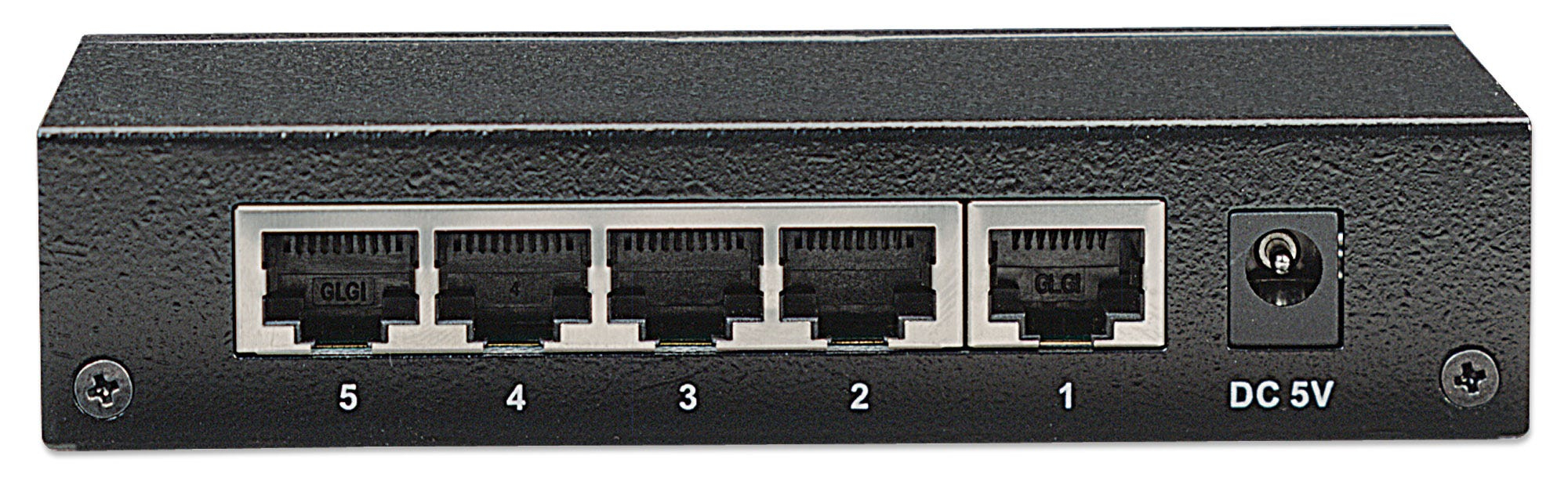

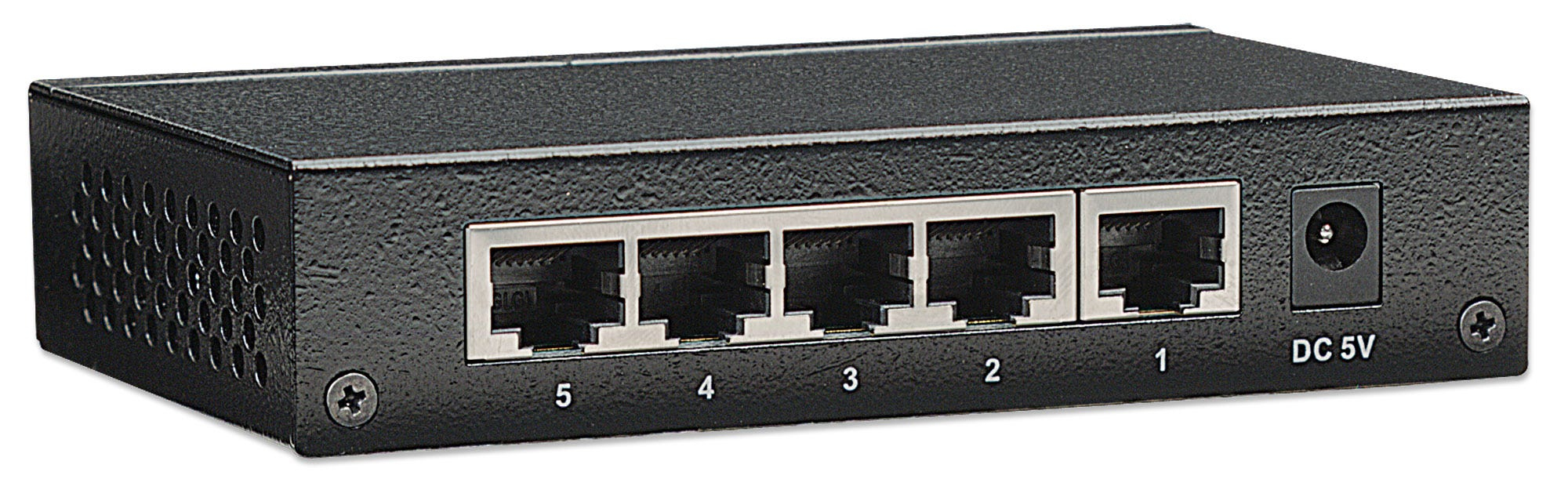

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.112 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 78 mm |
| Height | 28 mm |
| Weight | 310 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
No reviews yet
Be the first to tell others how Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
All network switch comparisons- Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet) vsIntellinet 524117 network switch Gigabit Ethernet (10/100/1000) WhiteCompare specs
- Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet) vsIntellinet 524124 network switch Gigabit Ethernet (10/100/1000) GreyCompare specs
- Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet) vsIntellinet 4-Port Broadband RouterCompare specs

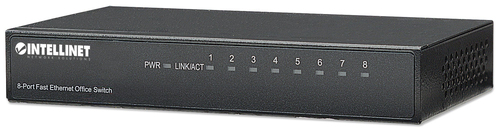

- Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet) vsIntellinet 8-Port Fast Ethernet Office SwitchCompare specs
