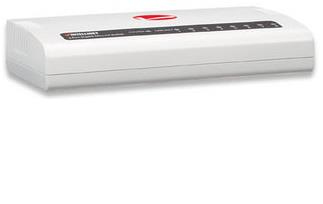

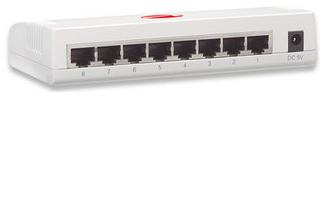

Intellinet 524124 network switch Gigabit Ethernet (10/100/1000) Grey
Model 524124EAN 071021018893
33 specifications
- Speed1 Gbit/s
- Weight490 g
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8192 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 490 g
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 524124
- Part number
- 524124
- EAN / UPC
- 071021018893, 766623524124, 971478059510, 7666235241248
- Also known as
- Intellinet 524124 network switch Gigabit Ethernet (10/100/1000) Grey
Specifications
33 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Housing material | Plastic |
| LED indicators | Activity, Link |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input current | 2 A |
| Input voltage | 5 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 490 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
