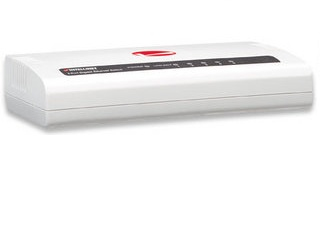

Intellinet 524117 network switch Gigabit Ethernet (10/100/1000) White
Model 524117EAN 7666235241170
31 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight460 g
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 460 g
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 524117
- Part number
- 524117
- EAN / UPC
- 7666235241170, 086000202323, 132018279120, 523160914838 +2 more
- Also known as
- Intellinet 524117 network switch Gigabit Ethernet (10/100/1000) White
Specifications
31 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | White |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| DC input voltage | 5 V |
| Input current | 1 A |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (W x D x H) (imperial) | 139.7 x 160 x 33 mm (5.5 x 6.3 x 1.3") |
| Weight (imperial) | 0.635 kg (1.4 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 460 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE Class B |
