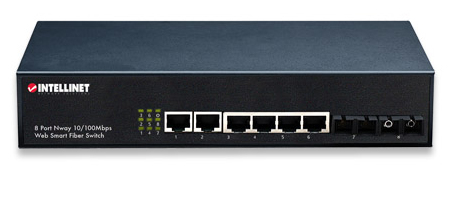

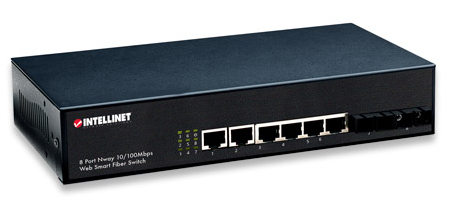

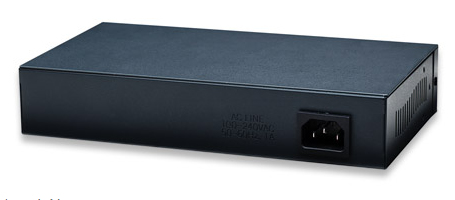

Intellinet 523820 network switch Managed Fast Ethernet (10/100) Black
Model 523820EAN 766623523820
51 specifications
- Weight900 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- Fiber ethernet cabling technology100BASE-FX
Overview
- Weight
- 900 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- Fiber ethernet cabling technology
- 100BASE-FX
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 523820
- Part number
- 523820
- EAN / UPC
- 766623523820, 7666235238200
- Also known as
- Intellinet 523820 network switch Managed Fast Ethernet (10/100) Black
Specifications
51 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | SC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5 |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber type | Single-mode |
| Transmission distance (max) | 20 km |
| Wavelength | 1310 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Number of multicast groups filtered | 4 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
| Maximum cable length | 100 m |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 123 mm |
| Height | 44 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE Mark |
