Intellinet 522618 network switch 1U Black
Model 522618EAN 766623522618
26 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Type1U
- Weight3 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 522618
- Part number
- 522618
- EAN / UPC
- 766623522618
- Also known as
- Intellinet 522618 network switch 1U Black
Specifications
26 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 295 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Size (imperial) | 48.3 cm (19") |
| Connectivity LEDs | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS, UL |
What people say
Reviews & ratings
Intellinet 522618 network switch 1U Black
No reviews yet
Be the first to tell others how Intellinet 522618 network switch 1U Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Intellinet 522618 network switch 1U Black

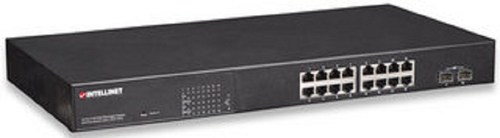

All network switch comparisons- Intellinet 522618 network switch 1U Black vsIntellinet 560535 network switch Power over Ethernet (PoE) BlackCompare specs
- Intellinet 522618 network switch 1U Black vsIntellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan,Compare specs
- Intellinet 522618 network switch 1U Black vsIntellinet 523110 network switch Unmanaged BlackCompare specs
- Intellinet 522618 network switch 1U Black vsIntellinet 523127 network switch Unmanaged BlackCompare specs
- Intellinet 522618 network switch 1U Black vsLevelOne 16 GE + 4 GE SFP SwitchCompare specs
- Intellinet 522618 network switch 1U Black vsD-Link DES-105 network switch Unmanaged BlackCompare specs
- Intellinet 522618 network switch 1U Black vsLogiLink Fast Ethernet Desktop SwitchCompare specs

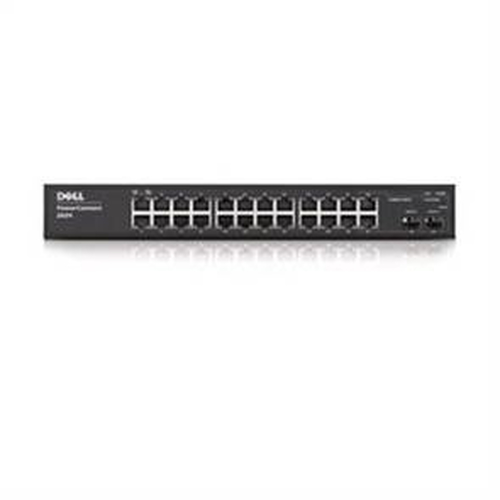

- Intellinet 522618 network switch 1U Black vsDell PowerConnect 2824 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
