Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
Model 509220EAN 766623509220
46 specifications
- Weight1 kg
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity5
- Cable types supportedCat5e, Cat6, Cat6a, Cat8.1
- MAC address table2000 entries
- Rack mountingNo
Overview
- Weight
- 1 kg
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Cable types supported
- Cat5e, Cat6, Cat6a, Cat8.1
- MAC address table
- 2000 entries
- Rack mounting
- No
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 509220
- Part number
- 509220
- EAN / UPC
- 766623509220
- Also known as
- Intellinet Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender
Specifications
46 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|

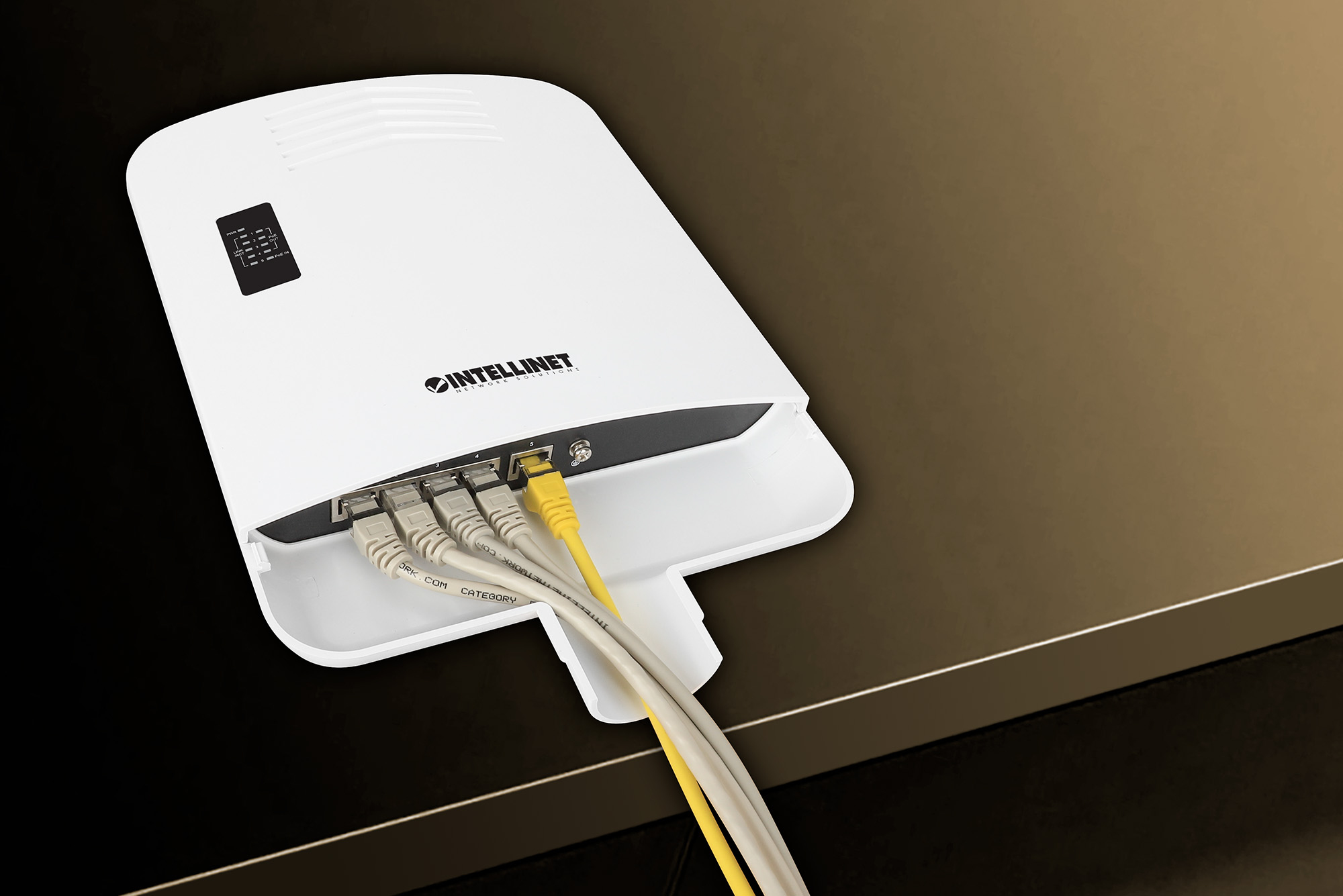

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat8.1 |
| Auto MDI/MDI-X | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 2 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Link, PoE, Power |

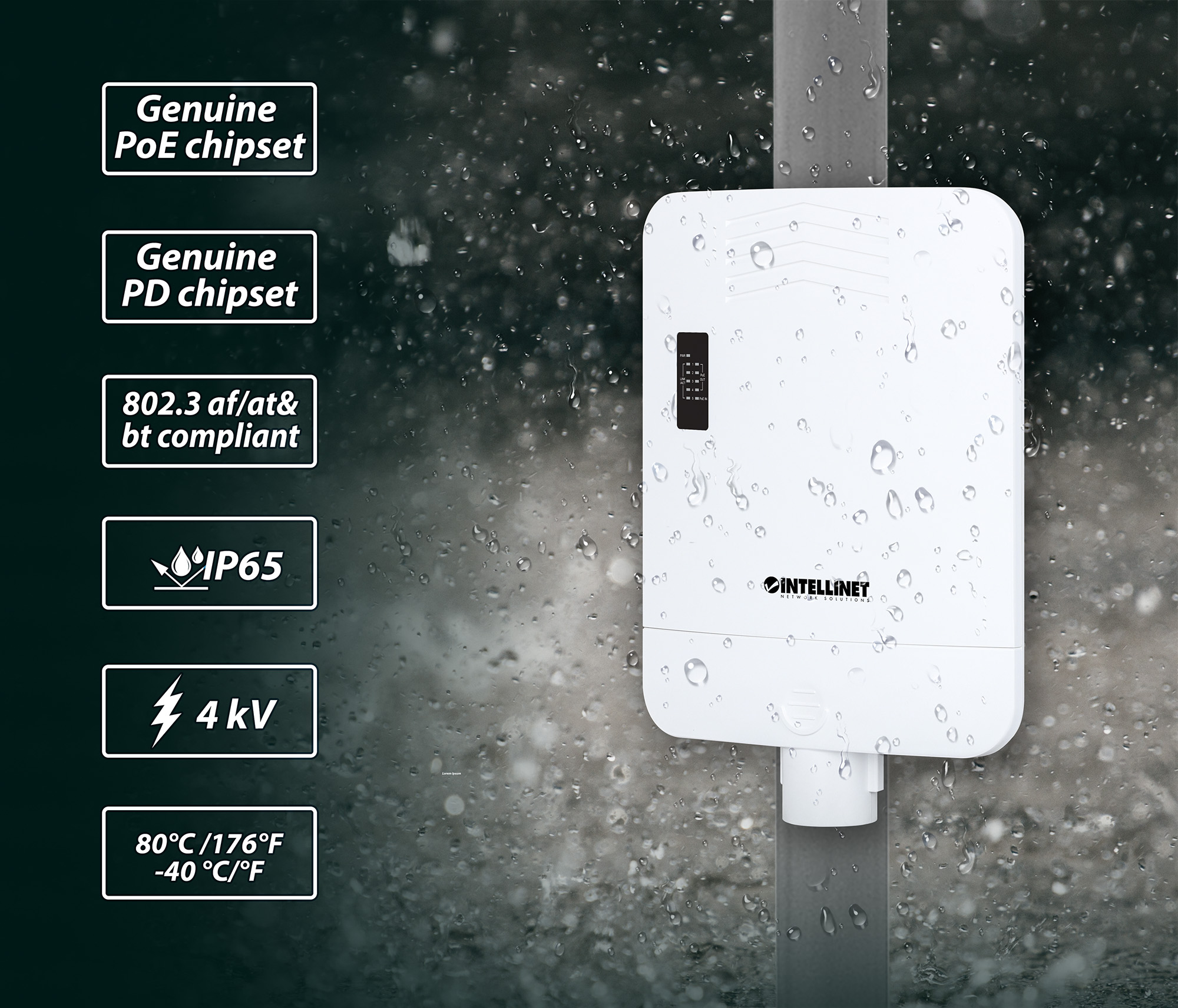

| International Protection (IP) code | IP65 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 85 W |
Operational conditions
| Specification | Value |
|---|---|

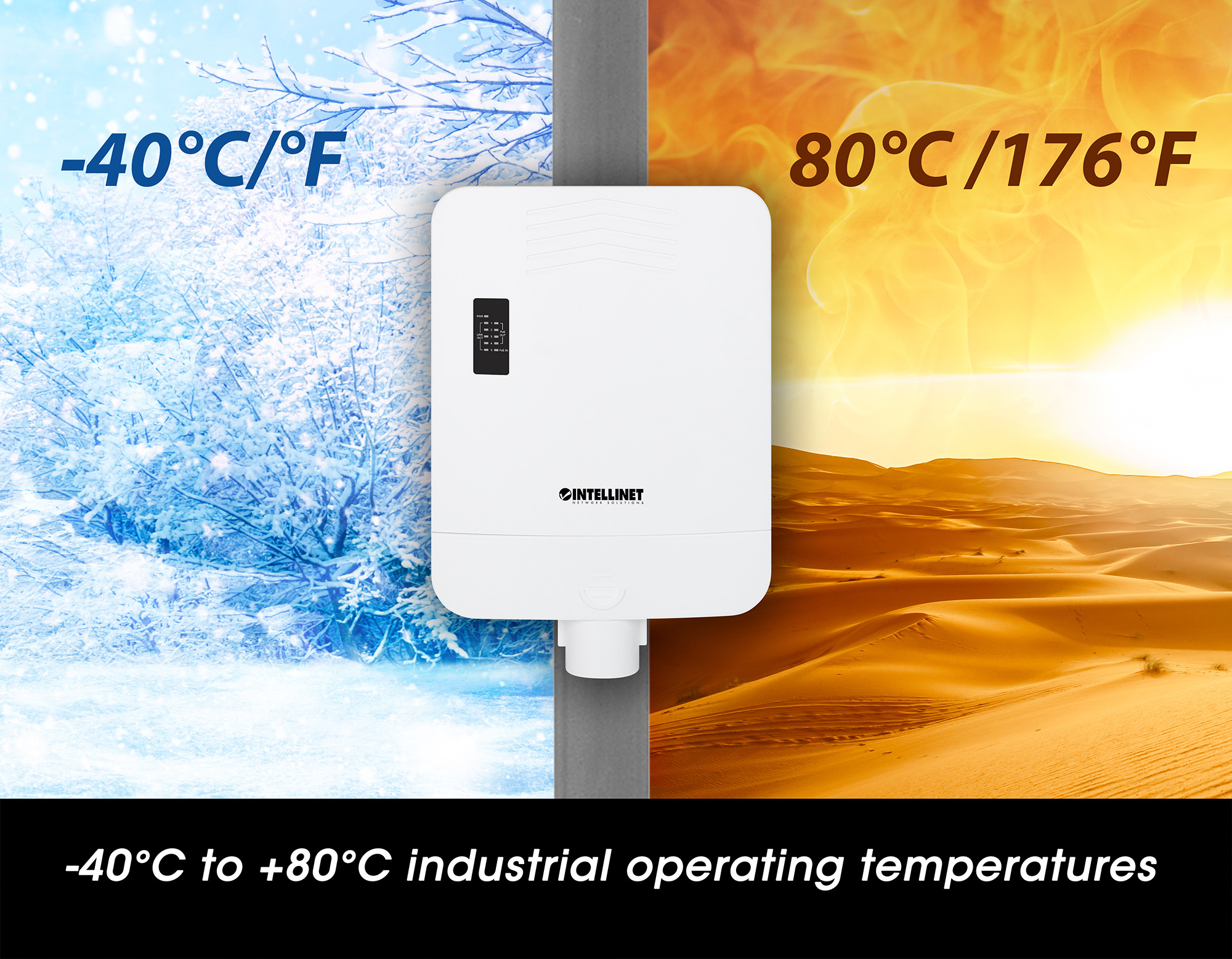

| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 206 mm |
| Depth | 299 mm |
| Height | 65 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 310 mm |
| Package depth | 350 mm |
| Package height | 90 mm |
| Package weight | 1.3 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | FCC, CE, RoHS, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 365 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 335 mm |
| Master (outer) case gross weight | 6.93 kg |
| Products per master (outer) case | 6 pc(s) |
