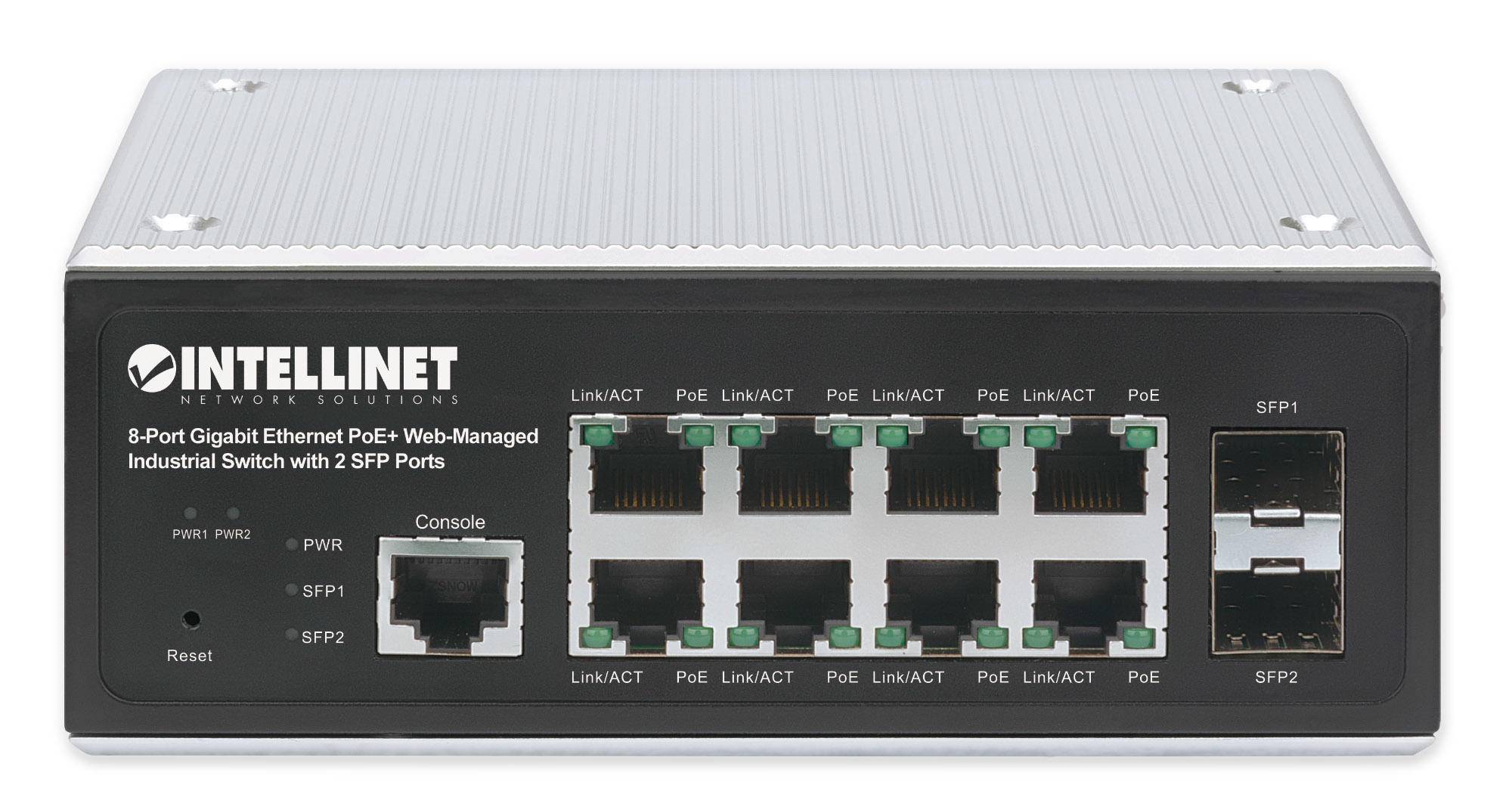

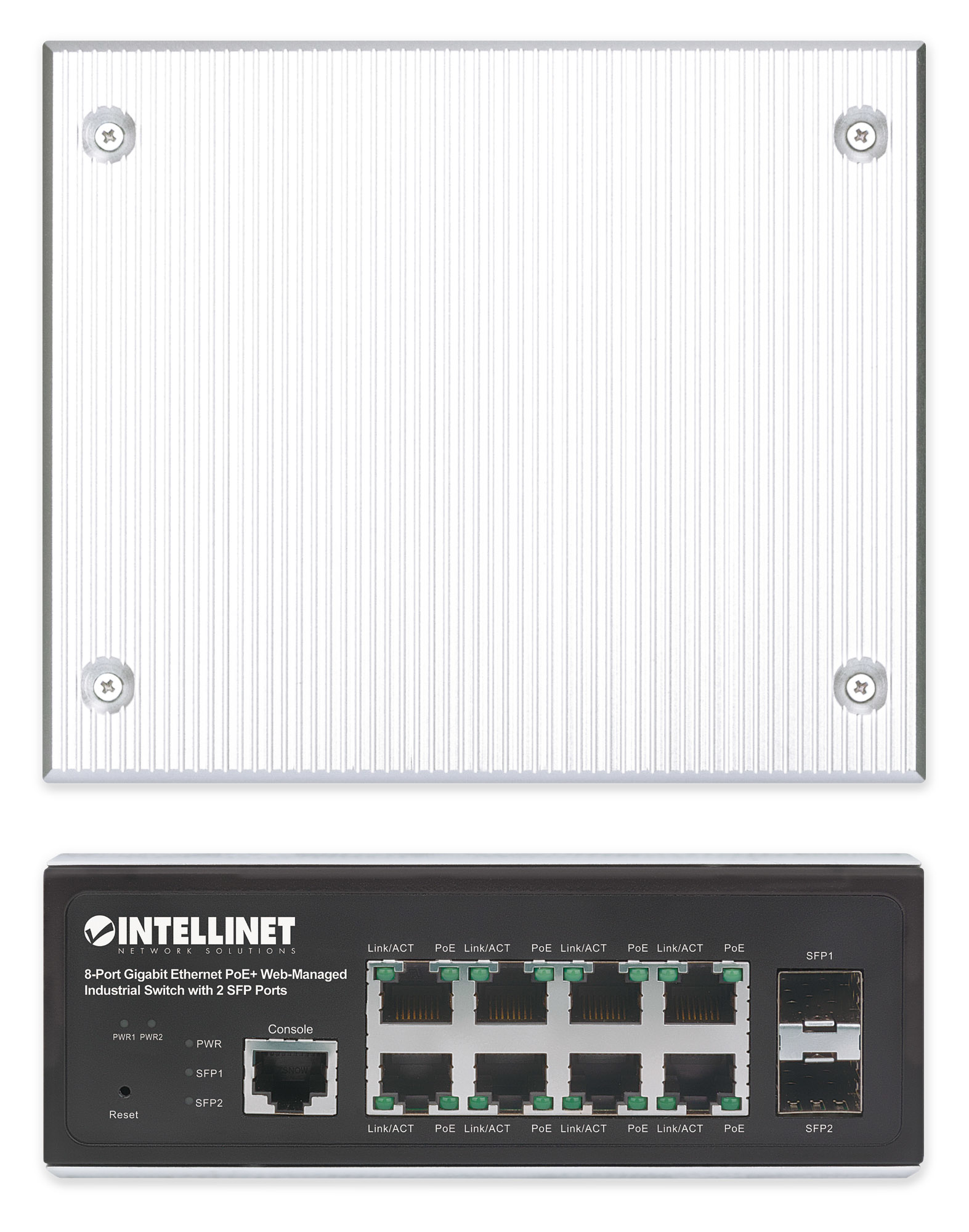

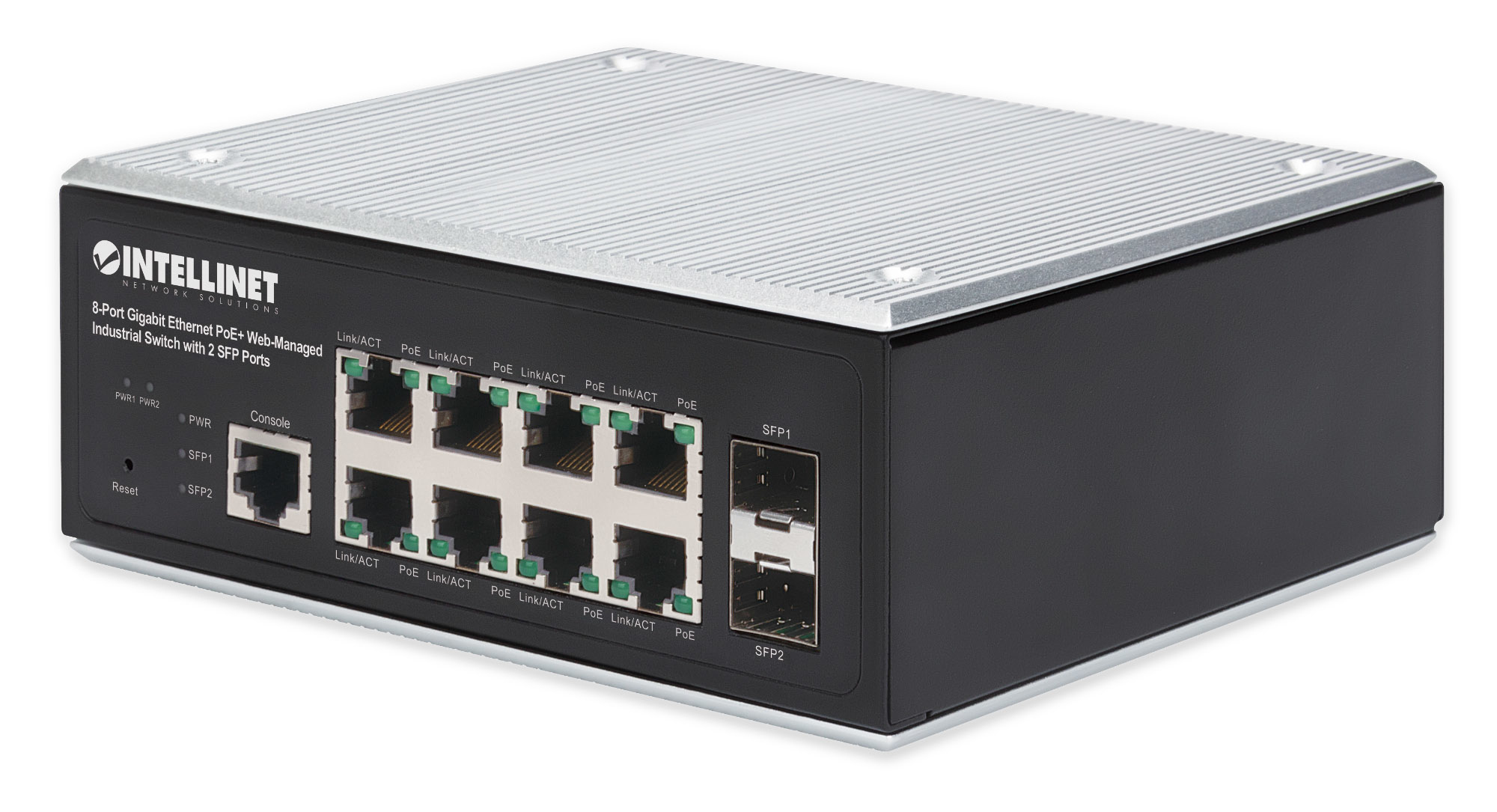

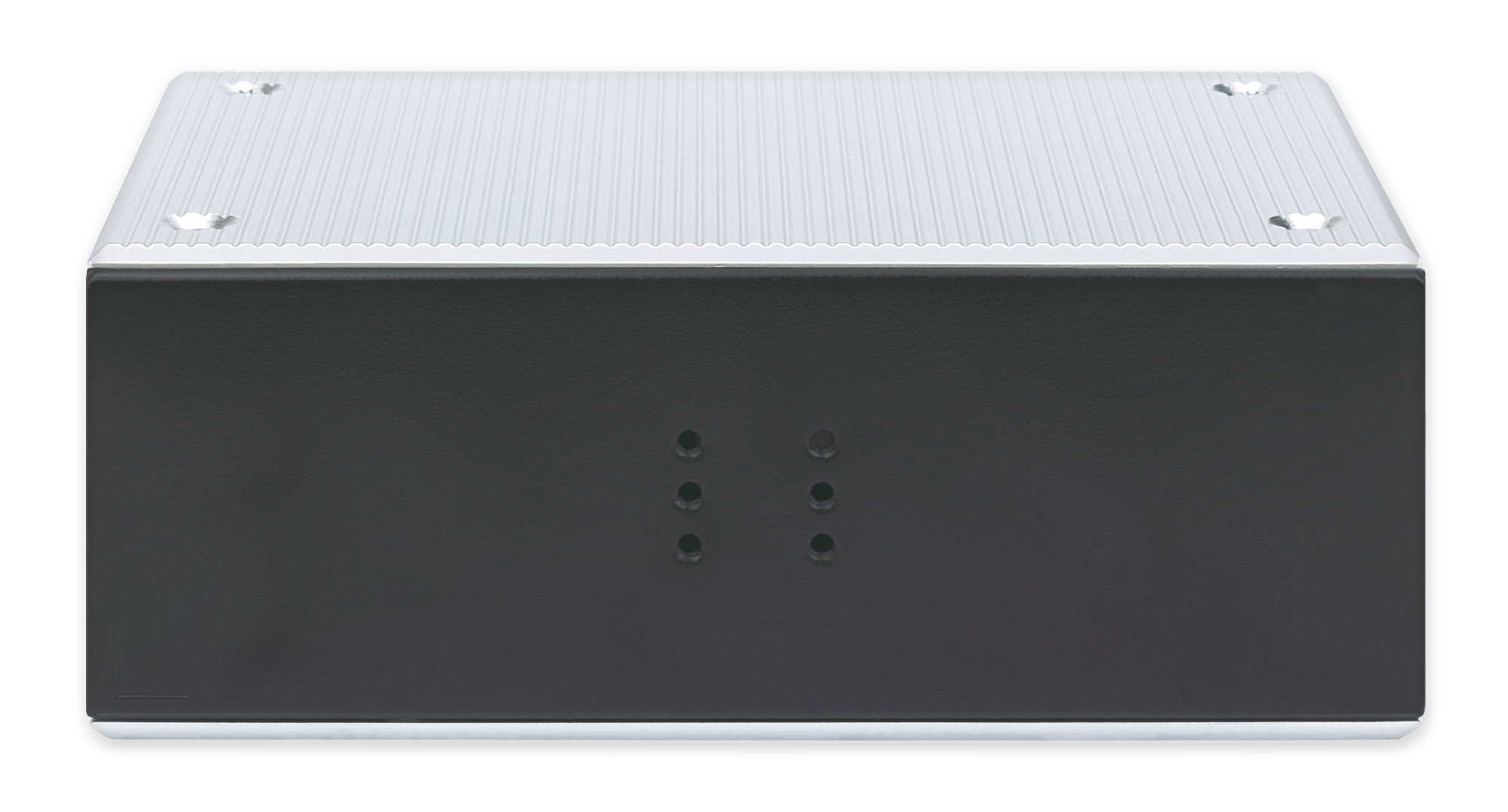

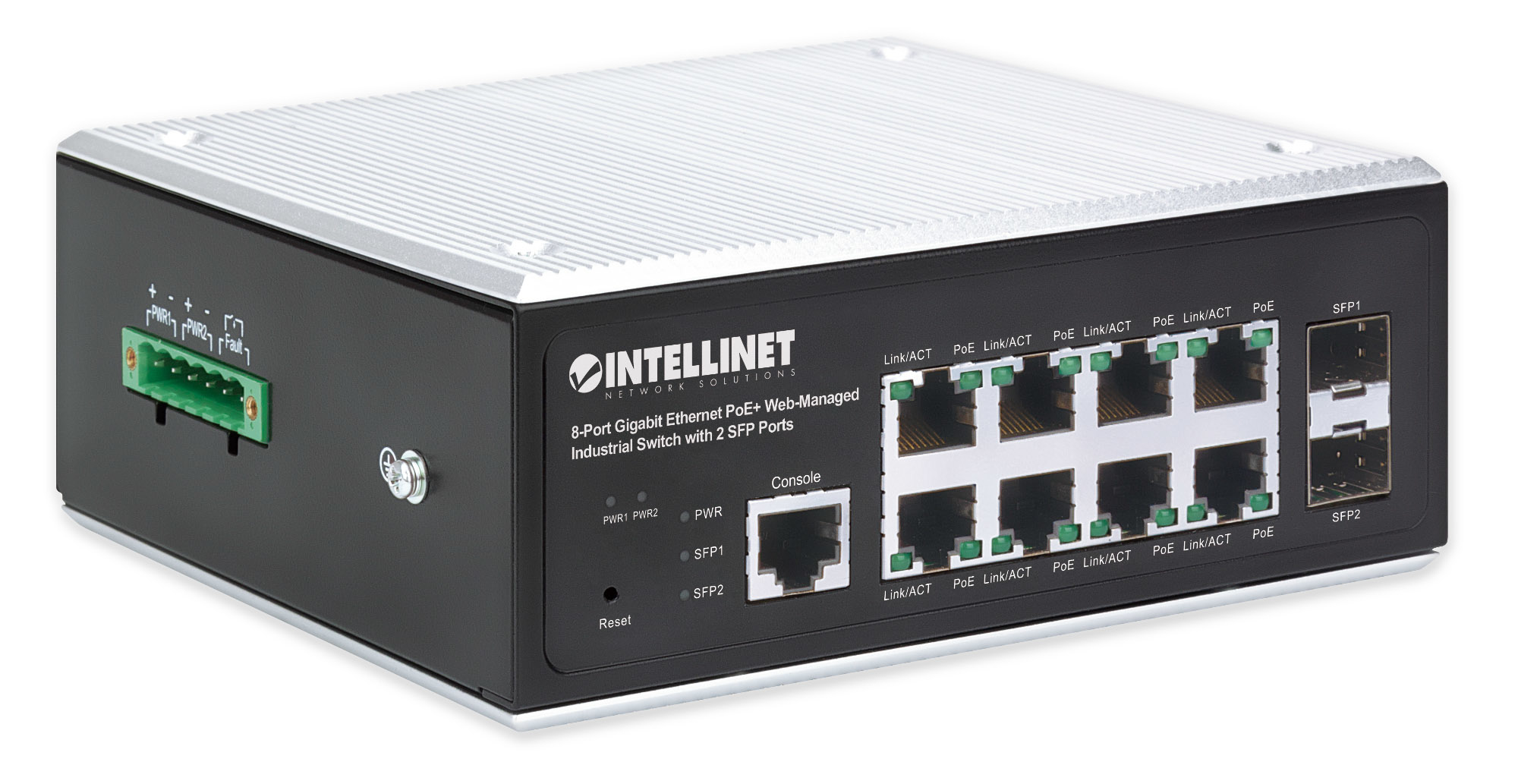

Industrial 8-Port Gigabit Ethernet PoE+ Layer 2+ Web-Managed Switch with 2 SFP Ports IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget up to 240
Model 508278EAN 766623508278
76 specifications
- Weight448 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
Overview
- Weight
- 448 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 508278
- Part number
- 508278
- EAN / UPC
- 766623508278
- Also known as
- Intellinet Industrial 8-Port Gigabit Ethernet PoE+ Layer 2+ Web-Managed Switch with 2 SFP Ports IEEE 802.3at/af (PoE+/PoE) Compliant, PoE Power Budget up to 240
Specifications
76 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 45 - 57 V |
| Power consumption (max) | 255 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

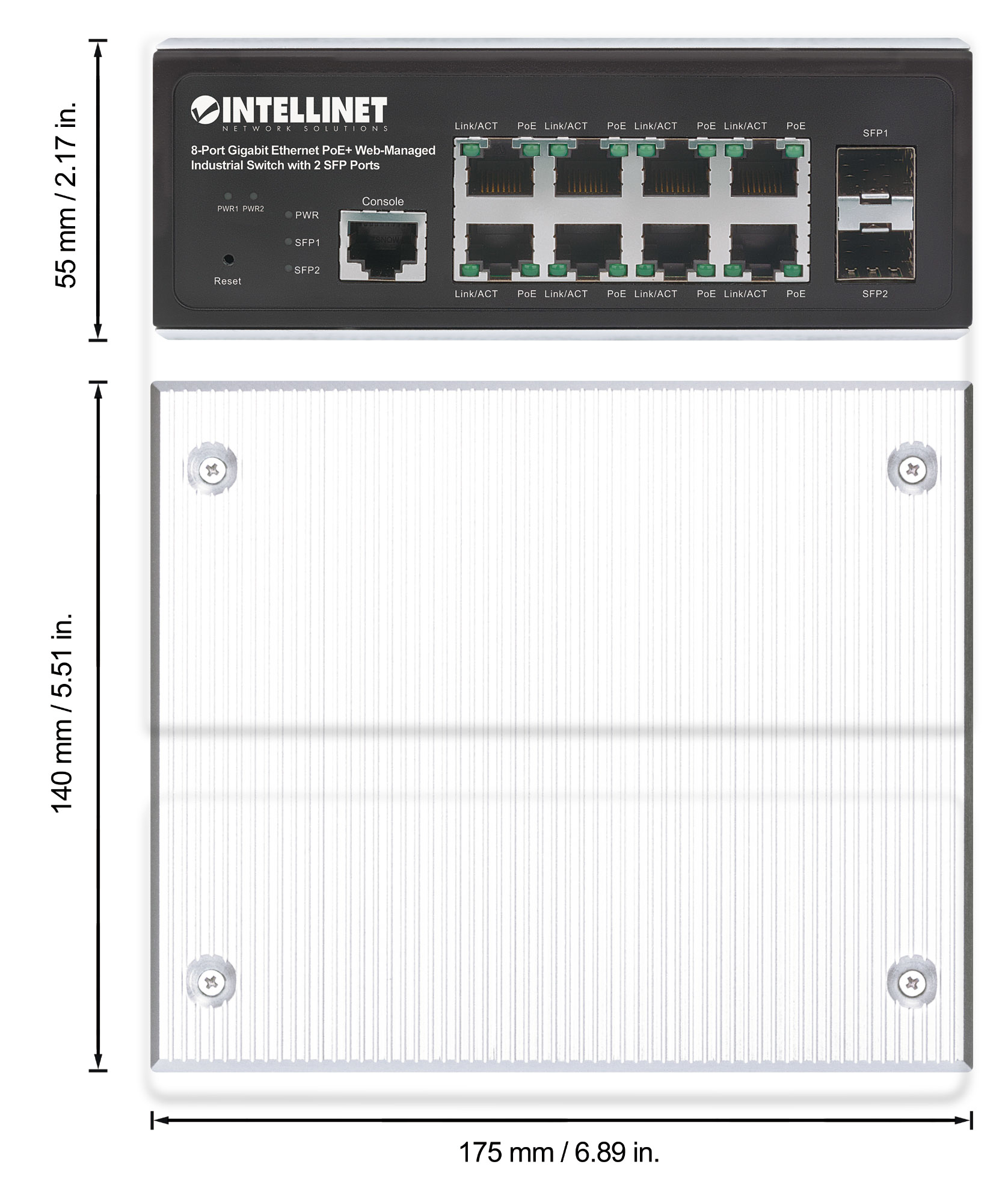

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 175 mm |
| Height | 55 mm |
| Weight | 448 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 195 mm |
| Package depth | 225 mm |
| Package height | 105 mm |
| Package weight | 1.6 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 415 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 243 mm |
| Master (outer) case gross weight | 17.2 kg |
| Products per master (outer) case | 10 pc(s) |
