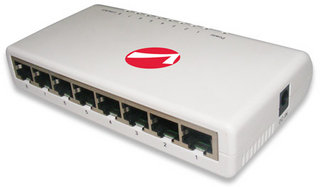

Intellinet 502054 network switch Fast Ethernet (10/100) White
Model 502054EAN 766623502054
26 specifications
- Speed0.1 Gbit/s
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1000 entries
- Supported network protocolsCSMA/CD
Overview
- Speed
- 0.1 Gbit/s
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1000 entries
- Supported network protocols
- CSMA/CD
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 502054
- Part number
- 502054
- EAN / UPC
- 766623502054, 7666235020546
- Also known as
- Intellinet 502054 network switch Fast Ethernet (10/100) White
Specifications
26 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

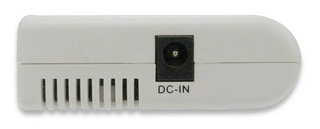

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.064 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | White |

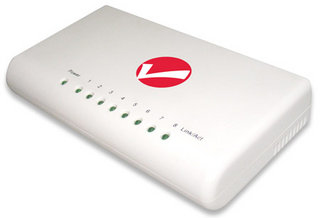

| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| Input current | 0.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 72 mm |
| Height | 25 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
