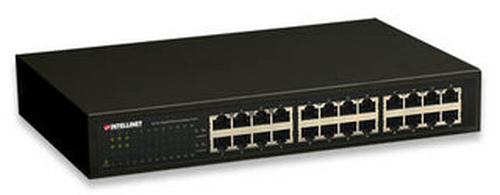

Intellinet 24-Port Gigabit Web-Smart
Model 24-Port Gigabit Web-SmartPart no. 524063EAN 766623524063
38 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 24-Port Gigabit Web-Smart
- Part number
- 524063
- EAN / UPC
- 766623524063
- Also known as
- Intellinet 24-Port Gigabit Web-Smart Managed Black
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Status, Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Media types supported | Cat3, 4, 5, 5e UTP/STP RJ45 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Number of power supply units | 1 |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 205 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Packet transfer speed | 1488000 pps |
| Power LED | Yes |
| Size (imperial) | 48.3 cm (19") |
| Connectivity LEDs | 48 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
