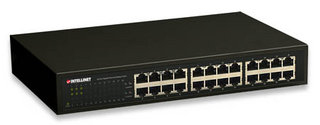

Intellinet 24-Port Gigabit
Model 24-Port GigabitPart no. 523523EAN 766623523523
43 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise0 dB
- Type1U
- Weight2.2 kg
- ColourBlack
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 0 dB
- Type
- 1U
- Weight
- 2.2 kg
- Colour
- Black
- Brand
- Intellinet
- Category
- Network Switch
- Model
- 24-Port Gigabit
- Part number
- 523523
- EAN / UPC
- 766623523523, 7666235235230
- Also known as
- Intellinet 24-Port Gigabit Unmanaged 1U Black
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Web-based management | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.512 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Status, Yes |
Performance
| Specification | Value |
|---|---|
| Media types supported | 10Base-T Cat3, 4, 5 UTP/STP RJ-45 - 100Base-TX Cat5 UTP/STP RJ-45 - 1000Base-T Cat5e UTP/STP RJ-45 |
| Noise level | 0 dB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1024 Mbit/s |
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Packet transfer speed | 1488000 pps |
| Power LED | Yes |
| Power requirements | AC |
| Size (imperial) | 48.3 cm (19") |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, VCCI Class A |
